In industrial applications where heavy loads, long materials, or asymmetrical components need to be moved with precision, dual trolley 100 ton gantry cranes provide an optimal solution. These heavy-duty lifting systems are engineered to handle complex load handling scenarios across sectors such as shipbuilding, steel fabrication, precast concrete, and large-scale infrastructure projects. The addition of dual trolleys significantly enhances operational flexibility and safety, enabling more efficient lifting and precise placement of oversized or irregular loads.
This article delves into the design, functionality, advantages, and typical applications of dual trolley 100 ton gantry cranes, providing valuable insights for industries seeking advanced and customized lifting solutions.
Understanding Dual Trolley 100 Ton Gantry Cranes
What Is a Dual Trolley Gantry Crane?
A dual trolley gantry crane features two independently or synchronously operated trolleys mounted on the same bridge or girder structure. Each trolley is equipped with its own hoisting mechanism, allowing the crane to either lift loads jointly or operate each hoist independently depending on the load distribution and lifting requirements.
In the case of a 100-ton gantry crane, the total lifting capacity is 100 tons—either split evenly between the two trolleys (e.g., 50+50 tons) or with a customized configuration depending on the application. The gantry structure typically consists of double girders supported by robust legs mounted on rails or wheels (for rail-mounted or rubber tyred gantry cranes).
Key Components
- Double girders: Providing the necessary structural integrity to support heavy loads.
- Two trolleys: Each with independent hoisting mechanisms, capable of synchronous or individual operation.
- Electrical control system: Incorporates coordinated controls for precise dual-trolley synchronization.
- Drive systems: Motorized drives for trolley travel, crane movement, and hoisting.
- Optional components: Anti-sway systems, load monitoring, remote control, and frequency inverters for smooth motion.
Advantages of Dual Trolley Design in 100 Ton Gantry Cranes
1. Handling Long and Asymmetrical Loads
One of the main benefits of a dual trolley gantry crane is its capability to safely lift long and awkwardly shaped loads. By spacing the trolleys appropriately and synchronizing the hoists, the load can be balanced and lifted without excessive bending, which is particularly important when handling long steel beams, precast concrete segments, or wind turbine blades.
2. Enhanced Load Control and Stability
Dual trolley cranes provide better load stability and reduced swinging, especially when combined with anti-sway technology and programmable logic controllers (PLC). This ensures safe operations even when dealing with critical or expensive equipment.
3. Flexible Lifting Operations
Each trolley can operate independently, allowing for multiple lifting scenarios:
- Lifting two separate loads at once.
- Shifting the center of gravity of a single load mid-air.
- Rotating or positioning loads with high precision.
4. Increased Productivity
By reducing the need for manual intervention or multiple cranes for complex lifts, dual trolley gantry cranes help speed up the lifting cycle, especially in production yards, shipping yards, or construction sites.
5. Space Optimization
Dual trolley systems minimize the need for multiple lifting devices and streamline the movement of loads across the workspace, thereby maximizing the utilization of available floor or yard space.
Typical Applications of 100 Ton Dual Trolley Gantry Cranes
Precast Concrete Manufacturing

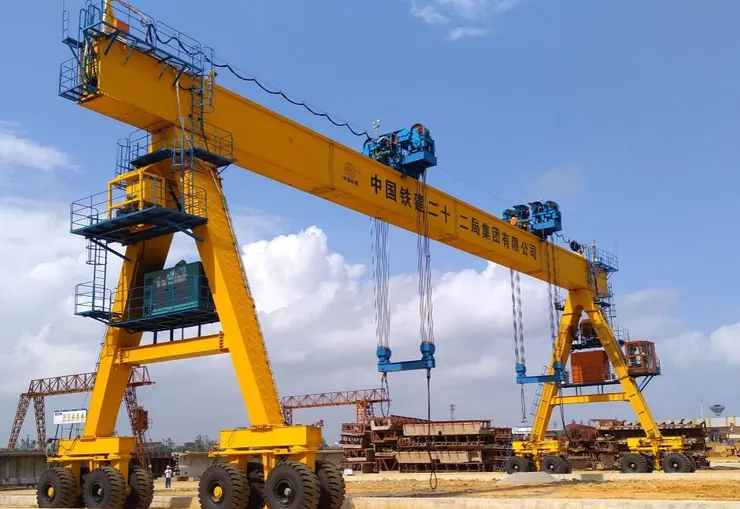

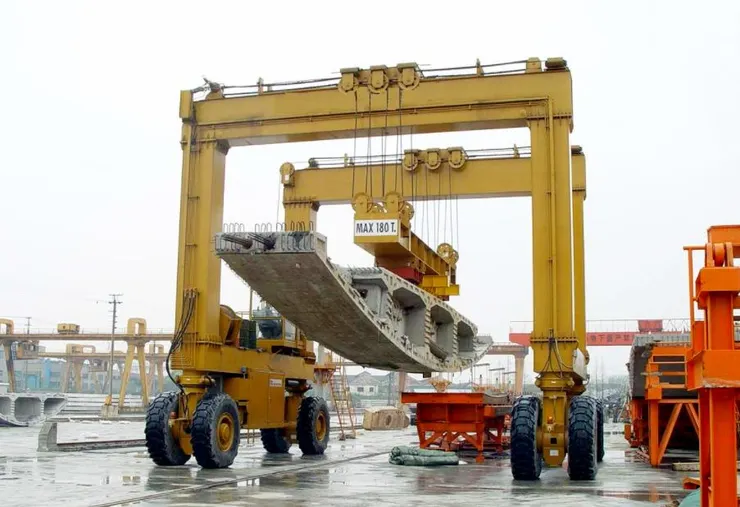

Large precast concrete elements such as bridge girders, columns, and tunnel segments often require dual lifting points to maintain structural integrity during hoisting. A dual trolley 100-ton gantry crane allows for stable and precise handling, reducing the risk of cracking or structural damage.
Shipbuilding and Shipyards
In shipyards, dual trolley gantry cranes are used to lift hull sections, heavy engines, and structural assemblies. The coordinated movement of two trolleys ensures safe handling of components that cannot be lifted from a single point.
Steel Structure and Fabrication Plants
Fabricated steel components such as beams, trusses, or tanks are often long and irregularly shaped. Dual trolley systems help balance and maneuver these structures with minimal manual assistance, reducing labor costs and improving safety.
Wind Power and Renewable Energy
In the wind energy sector, components like turbine blades and nacelles require careful handling due to their size and shape. Dual trolley gantry cranes facilitate rotational control and safe placement during assembly or maintenance operations.
Heavy Equipment Manufacturing
For industries manufacturing large machinery such as turbines, presses, or industrial reactors, dual trolley systems support safe and efficient installation of components within the production line or for shipment.
Customization and Configuration Options
A 100-ton gantry crane can be customized to meet the specific needs of each project:
1. Span and Lifting Height
- Adjustable spans to suit the working area.
- Lifting height designed to accommodate large or tall equipment.
2. Rail Mounted vs Rubber Tyred
- Rail-mounted gantry cranes (RMGs): Ideal for fixed routes such as precast yards or shipbuilding lines.
- Rubber tyred gantry cranes (RTGs): Provide mobility and flexibility in open yards or production zones.
3. Control Options
- Cabin control, pendant control, or wireless remote control.
- Synchronous hoist control for load alignment.
- Human-machine interface (HMI) for easy monitoring.
4. Anti-Collision and Safety Systems
- Limit switches, overload protection, and emergency stop functions.
- Anti-collision sensors for safe multi-crane operations.
Safety Considerations
Dual trolley systems demand advanced safety protocols and coordination mechanisms. Misalignment or improper synchronization can lead to load swinging, structural stress, or even catastrophic failure.
Safety Measures Include:
- Automated synchronization of hoists and trolleys.
- Real-time monitoring systems for load weight and positioning.
- Regular inspections and maintenance of both trolleys and the main gantry structure.
- Operator training in dual-lift handling procedures.
Conclusion
As industries evolve toward handling larger, more complex, and heavier loads, dual trolley 100 ton gantry cranes emerge as a vital tool for efficient and safe lifting operations. These cranes provide unmatched flexibility, precision, and lifting capacity across a wide range of industrial applications. With the ability to handle asymmetrical and long loads with enhanced control, they help reduce labor costs, improve safety, and optimize production workflows.
At Aicrane, we offer custom-engineered dual trolley gantry crane solutions tailored to specific customer needs. Whether it's in a shipyard, precast factory, or energy plant, our cranes are built to deliver robust performance, longevity, and operational efficiency. We also provide comprehensive installation, training, and after-sales support to ensure our clients achieve maximum value from their lifting systems.
