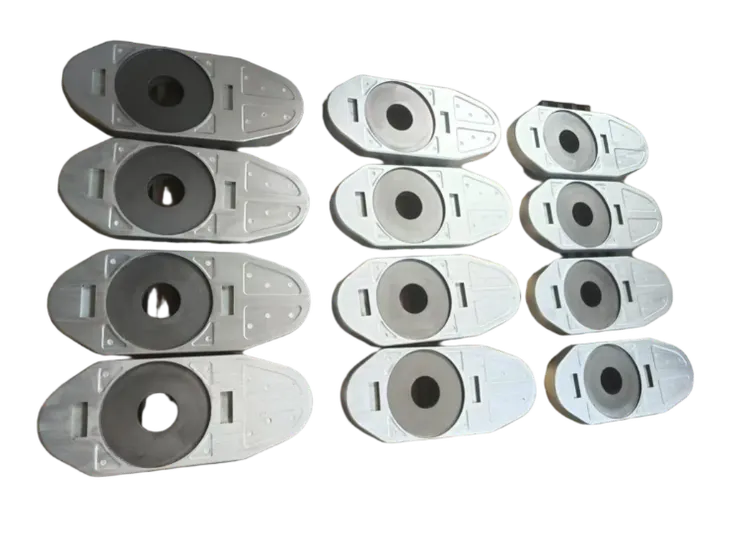

The slide gate plate is one of the most critical functional refractories used in ladles and tundishes during steelmaking. It plays a vital role in controlling molten steel flow, ensuring safety, stabilizing casting operations, and maintaining steel cleanliness. Due to exposure to 1650°C molten steel, chemical corrosion, thermal shock, mechanical abrasion, and sliding friction, slide gate plates experience severe operational stress. Extending their service life is essential for reducing refractory consumption, lowering operational costs, preventing steel leakage, and improving long casting sequence performance.
This article presents a thorough technical guide on how to extend the life of slide gate plates, covering material selection, engineering design, installation practices, operational control, preventive maintenance, and troubleshooting of common failure modes.
1. Understanding the Mechanisms That Limit Slide Gate Plate Life
Before exploring life-extension strategies, it is critical to understand why slide gate plates deteriorate. The main factors include:
1.1 Thermal Shock Damage
When exposed to sudden temperature changes (room temperature → 1,600°C), microcracks form in the refractory, reducing strength.
1.2 Mechanical Abrasion
Constant sliding generates friction between upper and lower plates, causing wear of the contact surfaces.
1.3 Chemical Corrosion
Molten steel, deoxidation products (Al₂O₃), and slag infiltrate into the pores of the plate, causing degradation.
1.4 Carbon Oxidation
Oxygen reacts with carbon in the plate, weakening the matrix and causing structural breakdown.
1.5 Erosion from High-Speed Steel Flow
Improper casting rhythm increases turbulence and accelerates erosion around the flow port.
1.6 Clamping Pressure Issues
Incorrect hydraulic clamping pressure can lead to plate cracking or metal leakage between plates.
Understanding these mechanisms allows us to develop effective strategies to maximize plate longevity.
2. Material Selection: The First Step Toward Long Plate Life
2.1 Choose the Right Refractory Composition
Different steel and slag conditions require different plate materials:

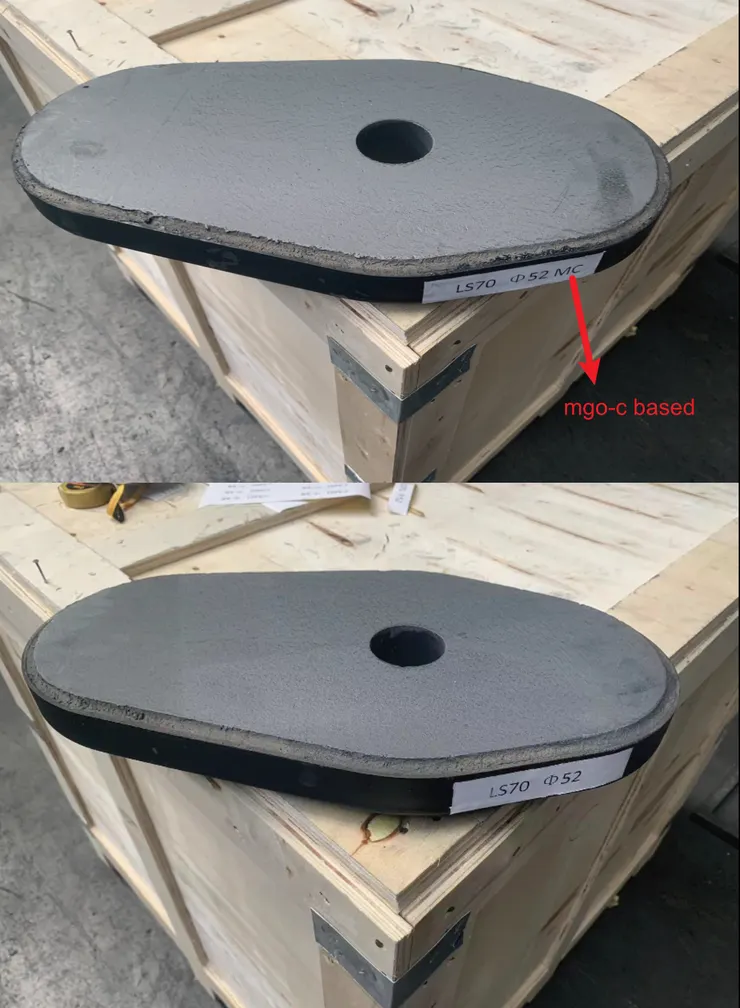

Steel GradeRecommended Plate TypeCarbon steelAl₂O₃-C platesHigh-basicity slag steelMgO-C platesStainless steel & alloy steelZrO₂-enriched platesUltra-clean steelLow-carbon ZrO₂ platesLong-sequence castingHigh-density ZrO₂ or spinel plates
Choosing a material that matches your operation reduces erosion and greatly extends plate life.
2.2 Select Plates With High Density and Low Porosity
High-density plates:
- Resist steel and slag penetration
- Reduce oxidation
- Ensure stronger mechanical performance
Ideal porosity: <10%
Bulk density: >2.95 g/cm³ (for alumina-carbon plates)
2.3 Use Plates With Anti-Oxidation Additives
Anti-oxidants such as SiC, B₄C, Al, Mg, Si powders form protective layers that slow carbon oxidation.
2.4 Reinforced Zirconia Zones
Zirconia around the flow port significantly increases erosion resistance.
Many modern plates apply a ZrO₂ ring or ZrO₂ gradient zone.
3. Engineering and Processing Improvements
3.1 Isostatic Pressing
Isostatic pressing produces:
- Uniform density
- Lower porosity
- Higher mechanical strength
This results in plates that survive more cycles.
3.2 Controlled Firing and Curing
Proper firing ensures:
- Stable microstructure
- Good bonding between aggregates
- Reduced internal tensions
Underfired plates crack more easily under thermal shock.
3.3 Optimized Carbon Matrix
Using high-purity flake graphite and high-performance binders increases:
- Thermal shock resistance
- Sliding stability
- Oxidation resistance
4. Installation Practices to Maximize Plate Life
Even the best slide gate plates fail prematurely if installed incorrectly.
4.1 Ensure Perfect Flatness of the Plates
Flatness should be checked with:
- Feeler gauge
- Straightedge
- Plate surface comparator
Surface irregularities create localized pressure points that lead to cracking.
4.2 Clean All Contact Surfaces
Before installation:
- Remove dust, graphite powder, moisture, slag, and oil
- Clean nozzle block surfaces
- Clean sliding frame
Contaminants cause friction, uneven pressure, and poor sealing.
4.3 Apply Correct Hydraulic Clamping Pressure
If clamping pressure is too low → leakage
If clamping pressure is too high → plate cracking
Manufacturers typically recommend 65–120 kN, depending on the system.
Check and calibrate hydraulic pressure regularly.
4.4 Proper Alignment of the Plates
Misalignment leads to:
- Uneven wear
- Sliding resistance
- Stress concentration
- Early plate failure
Use alignment tools and reference marks to guarantee proper positioning.
4.5 Preheat the Plate Assembly
Preheating reduces thermal shock and prevents crack formation.
Typical preheating conditions:
- 400–600°C
- 20–40 minutes
Never expose cold plates to full-temperature steel.
5. Operational Strategies to Extend Slide Gate Plate Life
5.1 Control Steel Temperature
Too high temperatures accelerate:
- Chemical erosion
- Slag attack
- Oxidation
- Abrasion
Ideal tundish temperature should be controlled within recommended operating windows.
5.2 Avoid Sudden Opening of the Slide Gate
A smooth opening sequence reduces thermal and mechanical shock:
- From 0% → 10% → 20% → 30%
- Hold and stabilize before full opening
Abrupt opening increases turbulence and damages the plate.
5.3 Stabilize Casting Rhythm
Frequent adjustments increase wear.
Stable flow improves plate longevity.
5.4 Maintain Proper Inert Gas (Argon/N₂) Injection
Inert gas protects plates from:
- Nozzle clogging
- Oxidation
- Solidification of steel droplets
- Excessive erosion
But note:
- Too high gas flow → turbulence and reoxidation
- Too low gas flow → steel freezing and plate jamming
Optimize according to steel grade.
5.5 Reduce Mechanical Vibration
Sources of harmful vibration include:
- Ladle shroud manipulator
- Cracked frame
- Loose clamps
- Aggressive movement
Vibration causes microcracks that shorten plate life.
5.6 Avoid Slag Carryover From Ladle
Slag penetrating the slide gate system accelerates corrosion.
Use:
- Slag detection systems
- Slag-stopping darts
- Gas curtain technology
6. Cooling, Maintenance, and Post-Casting Procedures
6.1 Controlled Cooling After Casting
Avoid rapid cooling or water contact.
Thermal shock could destroy plates.
6.2 Inspect Plates After Every Heat
Check for:
- Cracks
- Uneven wear
- Erosion around the port
- Chemical penetration
- Oxidation patterns
This helps diagnose systemic issues.
6.3 Clean the Slide Gate Frame
Remove:
- Slag deposits
- Steel droplets
- Dust
- Carbon residue
A clean slide gate mechanism ensures smooth movement.
6.4 Lubricate Moving Components (If Required)
Some slide gate designs allow lubrication of mechanical parts (not plates themselves).
This reduces friction and prevents jamming.
6.5 Regular Calibration of Hydraulic System
A malfunctioning cylinder increases stress on slide plates.
Inspect:
- Pressure settings
- Connection joints
- Cylinder seals
- Hydraulic oil level
7. Troubleshooting Common Slide Plate Problems
Problem 1: Premature Cracking
Causes:
- Thermal shock
- Excessive clamping pressure
- Cold charging
- Vibration
Solutions:
- Preheat
- Calibrate hydraulic pressure
- Improve mechanical stability
Problem 2: Severe Port Erosion
Causes:
- High steel temperature
- Misaligned shroud
- Turbulent flow
Solutions:
- Stabilize casting
- Use ZrO₂-enriched plates
Problem 3: Steel Leakage
Causes:
- Irregular plate surface
- Debris between plates
- Low clamping pressure
Solutions:
- Clean installation
- Increase hydraulic force
- Replace damaged plates
8. Conclusion
Extending the life of slide gate plates is not achieved through a single action—it requires optimization of material selection, manufacturing quality, installation precision, operational stability, and post-casting maintenance. By following the comprehensive strategies highlighted in this article, steel plants can achieve:
- Longer plate life
- Lower refractory costs
- Improved steel cleanliness
- Fewer casting interruptions
- Higher productivity
- Safer operations
With the right combination of technical practices, slide gate plate life can be increased significantly—sometimes by 30–100% depending on operating conditions.More information please visit Henan Yangyu Refractories Co.,Ltd
