In modern industrial operations, handling large, heavy, and complex loads efficiently and safely has become a critical requirement. Standard single-hoist overhead cranes often fall short when precise synchronization or balanced lifting is necessary, especially for exceptionally long, heavy, or sensitive loads. This is where multi-hoist overhead cranes come into play, offering the ability to operate multiple hoists simultaneously on the same crane bridge for synchronized lifting operations. These cranes have become essential in sectors such as steel manufacturing, shipbuilding, power generation, and precast concrete production.
What is a Multi-Hoist Overhead Crane?

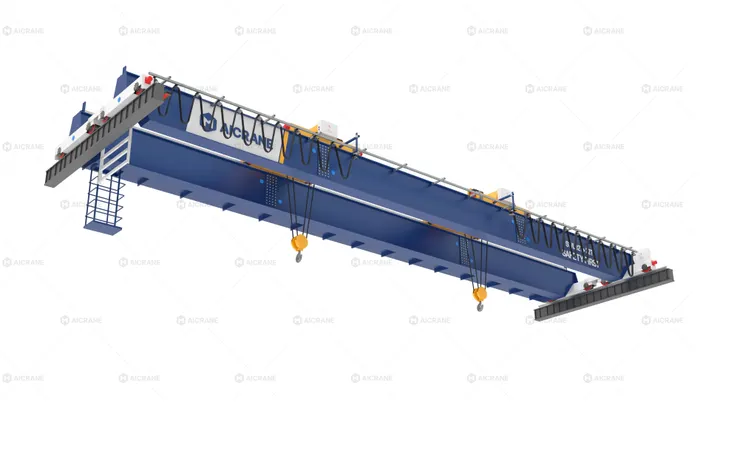

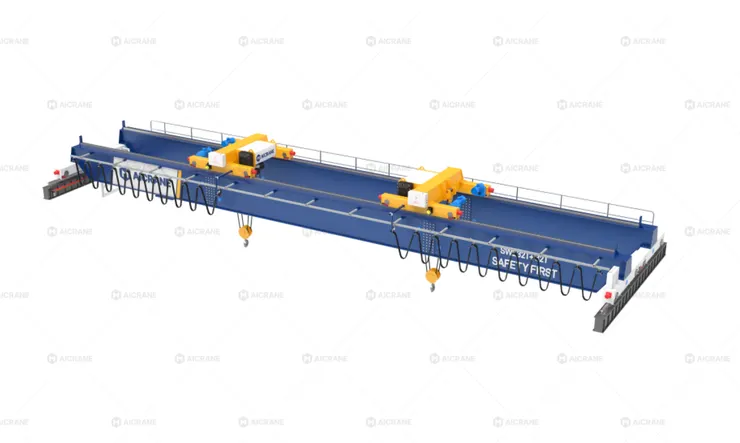

A multi-hoist overhead crane is an overhead crane equipped with two or more hoists mounted on the same bridge structure. Unlike a conventional crane with a single hoist, multi-hoist cranes allow operators to lift a single load at multiple points simultaneously. This synchronized operation ensures that the load is lifted evenly, reducing the risk of tilting, twisting, or overloading any single point of the load.
The hoists can be electric, hydraulic, or wire rope-based, depending on the load capacity and application requirements. Each hoist is capable of independent movement along the crane bridge, but when synchronized, they operate in perfect unison. Modern systems often use PLC (Programmable Logic Controller) or VFD (Variable Frequency Drive) technology to achieve accurate synchronization.
Applications of Multi-Hoist Overhead Cranes
Multi-hoist overhead cranes are widely used in industries that deal with heavy, elongated, or asymmetrically shaped loads. Key applications include:
1. Steel Industry
In steel plants, long beams, slabs, and rolls must be handled with precision. The dual hoist overhead cranes allow operators to lift these massive objects evenly, minimizing the risk of bending or damaging the material. For example, lifting a steel slab weighing over 50 tons requires distributing the load across multiple hoists to prevent deformation.
2. Shipbuilding
Ship sections, such as hull blocks or engine units, are large and awkwardly shaped. Synchronized lifting is crucial to maintain structural integrity and ensure precise alignment during assembly. Multi-hoist cranes can lift massive ship components from storage to assembly docks safely.
3. Precast Concrete Production
Precast concrete components, like beams, panels, or bridge girders, are often long and heavy. Using a single hoist could result in uneven lifting, leading to cracks or structural stress. Multi-hoist cranes ensure uniform lifting and precise positioning, reducing the risk of damage during transportation and installation.
4. Power Generation and Heavy Equipment
In power plants and industrial facilities, heavy equipment such as turbines, generators, and transformers requires careful handling. Multi-hoist cranes provide the synchronized lifting needed for safe installation and maintenance of these high-value, heavy-load items.
Advantages of Multi-Hoist Overhead Cranes
1. Load Balance and Safety
By distributing the weight across multiple hoists, the load experiences less stress at individual lifting points. This reduces the risk of load imbalance, swinging, or structural failure, enhancing overall safety for operators and equipment.
2. Precision in Handling
Synchronized hoists ensure that the load moves evenly and maintains its orientation. This precision is critical for tasks like assembly of long beams, alignment of ship blocks, or installation of sensitive machinery.
3. Higher Lifting Capacity
Multi-hoist configurations effectively increase the crane’s lifting capacity beyond what a single hoist could handle. Each hoist contributes to the total lifting power, allowing the crane to handle extremely heavy or oversized loads.
4. Operational Flexibility
Operators can control hoists independently or synchronously, depending on the application. This flexibility allows cranes to adapt to different load types, shapes, and weights, improving productivity in complex operations.
5. Reduced Risk of Material Damage
Synchronized lifting minimizes twisting, bending, or tipping of loads, which is especially important for fragile or high-value materials. This reduces material wastage and maintenance costs due to damage.
Key Features of Multi-Hoist Overhead Cranes
- Advanced Synchronization Systems: Modern multi-hoist cranes often use PLC or VFD systems to synchronize multiple hoists accurately. Some systems incorporate sensors to detect load distribution in real-time.
- Independent and Combined Hoist Control: Operators can choose to operate each hoist separately or in perfect synchronization for different operational needs.
- Remote or Ground Control Options: Many multi-hoist cranes offer remote control systems, allowing operators to maintain safe distances while performing precise lifts.
- Load Monitoring and Safety Devices: Overload protection, anti-sway devices, and load sensors ensure the crane operates safely under varying load conditions.
- Customizable Span and Lifting Heights: Multi-hoist cranes can be designed to meet specific facility layouts and lifting height requirements, ensuring they fit unique operational needs.
Considerations When Choosing Multi-Hoist Overhead Cranes
- Load Weight and Distribution
Understanding the maximum load weight and its distribution is crucial. The number of hoists and their placement must be carefully calculated to ensure balanced lifting. - Synchronization Accuracy
The precision of hoist synchronization affects load stability. High-precision applications, such as power plant equipment or precast concrete beams, require advanced control systems to maintain alignment. - Facility Layout
Multi-hoist cranes need sufficient bridge span, runway clearance, and operating space. Planning the crane’s installation according to facility dimensions is essential to maximize efficiency. - Duty Cycle and Operational Frequency
Frequent lifts or continuous operation require robust hoists, motors, and structural components. Choosing cranes designed for high-duty cycles prevents premature wear and downtime. - Environmental Conditions
Indoor and outdoor environments affect crane design. Outdoor cranes may need corrosion protection, wind resistance, and weatherproof electrical systems, while indoor overhead cranes may prioritize low-noise operation and dust protection. - Maintenance and Accessibility
Multi-hoist cranes have more components than single-hoist cranes. Ensuring easy access for maintenance, inspection, and repair is crucial for operational reliability.
Emerging Trends in Multi-Hoist Crane Technology
- Automation and Programmable Lifting Sequences
Modern multi-hoist cranes integrate automation for repetitive lifting tasks, ensuring consistent operation and minimizing human error. Programmable sequences allow cranes to lift complex loads with precise timing and coordination. - IoT-Enabled Monitoring
Internet of Things (IoT) devices allow real-time monitoring of load weight, hoist synchronization, motor performance, and structural health. This predictive maintenance capability increases uptime and reduces operational risks. - Hybrid and Energy-Efficient Systems
Energy recovery and hybrid power solutions are being integrated to reduce operational costs, especially for high-capacity cranes operating continuously in industrial facilities. - Enhanced Safety Systems
Anti-sway technology, collision detection, and emergency stop features are now standard in multi-hoist cranes, providing safer operation in challenging environments.
Conclusion
Multi-hoist overhead cranes are indispensable tools for industries that demand safe, precise, and efficient lifting of heavy, oversized, or complex loads. By distributing the load across multiple hoists, these cranes minimize the risk of imbalance, material damage, and operational hazards. Advanced control systems, synchronization technology, and emerging automation features enhance their versatility and reliability.
Whether in steel plants, shipyards, precast concrete factories, or power generation facilities, multi-hoist cranes provide unmatched efficiency and safety in synchronized lifting operations. For industrial operators looking to optimize handling processes, reduce downtime, and improve operational safety, investing in a multi-hoist overhead crane is a strategic choice that pays dividends in productivity and reliability.
