Diesel Engine Selection for RTG Rubber Tyred Gantry Cranes

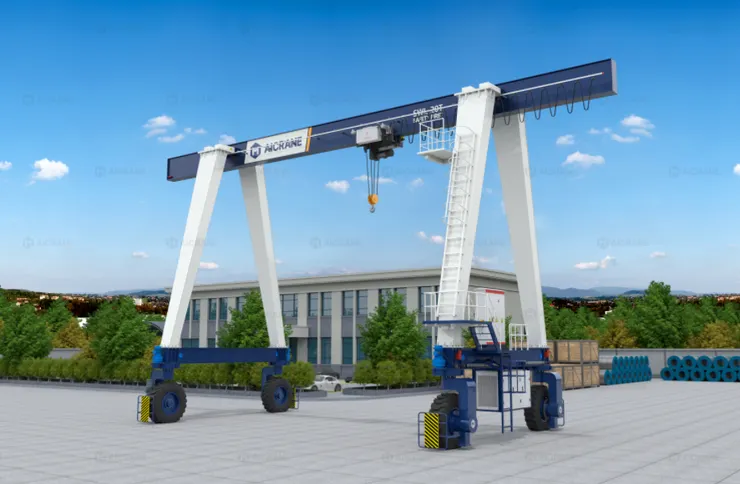

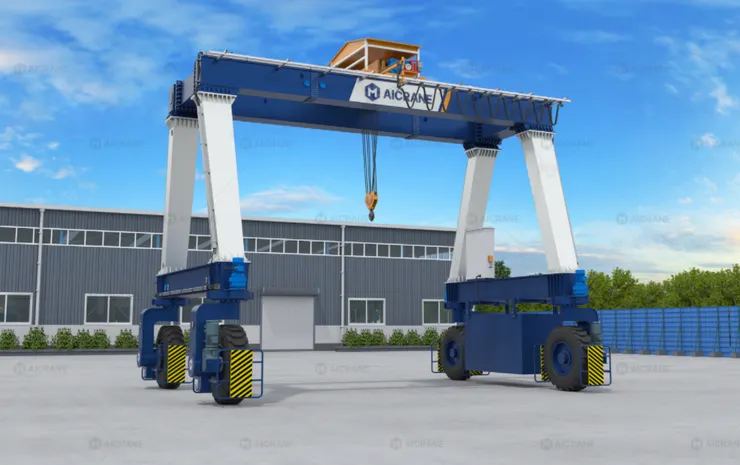

Rubber Tyred Gantry (RTG) cranes are critical assets in container terminals, logistics hubs, and heavy material handling environments. These cranes provide the flexibility of mobility combined with high lifting capacity, making them indispensable for modern port operations. One of the most important components influencing an RTG crane’s performance, operational efficiency, and lifecycle costs is its power source—particularly the diesel engine in diesel-powered RTGs. Selecting the right diesel engine is not simply a matter of matching horsepower to crane capacity; it requires a nuanced understanding of operational demands, emission regulations, fuel efficiency, and maintenance considerations.

Understanding RTG Diesel Power Requirements

RTG cranes are designed for both lifting and traveling across container yards. Unlike stationary gantry cranes, RTG rubber tyred gantry cranes must contend with dynamic loads, uneven ground conditions, and frequent starts and stops. Diesel engines in RTGs serve two primary functions:

1. Lifting Operations: Providing the torque and power required to lift containers, often weighing 20–50 tons, and sometimes up to 100 tons in specialized RTGs.
2. Traveling Operations: Powering wheel motors for mobility across container stacks, which requires sustained torque, especially under full load.

The diesel engine must be capable of handling both high peak loads during hoisting and steady loads during movement, making the selection process more complex than for stationary cranes.

Key Factors in Diesel Engine Selection

When selecting a diesel engine for an RTG crane, several factors must be considered:

1. Engine Power and Torque

The first step is to determine the required engine output. This depends on:

• Crane lifting capacity: Higher lifting capacities require engines with greater horsepower and torque. For example, a 40-ton RTG might need an engine output of 300–400 kW, while a 100 ton gantry could require engines exceeding 600 kW.
• Travel speed and acceleration: RTG cranes must accelerate and decelerate frequently. Engines with high low-end torque are preferred for better control and reduced stalling risks.
• Duty cycle: RTG operations are intermittent but often long-duration, with frequent hoisting and lateral movement. Engines must maintain reliability under these repetitive load cycles.

Modern RTGs often employ high-performance diesel engines with turbocharging and advanced fuel injection systems to maximize torque at low RPMs while maintaining fuel efficiency.

2. Emission Standards Compliance

Port authorities and governments increasingly mandate low-emission engines to minimize environmental impact. Diesel engines for RTGs must meet applicable emission standards such as:

• Tier 3, Tier 4 (U.S. EPA)
• Stage IIIA, IIIB, IV (EU)

Emission compliance affects engine selection because advanced engines often include:

• Exhaust Gas Recirculation (EGR) to reduce NOx emissions
• Diesel Particulate Filters (DPF) for particulate matter reduction
• Selective Catalytic Reduction (SCR) for NOx control

Selecting an engine compliant with local environmental regulations is crucial to avoid operational restrictions or fines.

3. Fuel Efficiency

Fuel costs can account for a significant portion of RTG operational expenses. Diesel engines with higher thermal efficiency and adaptive load management can reduce fuel consumption considerably. Features that improve fuel efficiency include:

• Common rail fuel injection systems: Allow precise fuel delivery for better combustion efficiency.
• Variable geometry turbochargers: Improve air-fuel mixture under varying load conditions.
• Idle reduction technology: Automatically lowers engine output or shuts down non-essential functions during periods of inactivity.

Operators should consider both fuel efficiency during lifting and travel, as RTGs consume more fuel when frequently moving under heavy load.

4. Engine Reliability and Durability

RTG cranes operate in demanding environments—often outdoors, exposed to dust, moisture, and extreme temperatures. Diesel engines must be rugged and durable, capable of continuous operation over years with minimal downtime. Key considerations include:

• Cooling system efficiency: Prevents overheating during prolonged operation.
• Robust lubrication: Reduces wear under heavy loads.
• High-quality components: Turbochargers, injectors, and engine blocks designed for industrial usage.

Engines from reputable manufacturers, such as Caterpillar, Cummins, and Volvo Penta, are commonly used in RTGs for their proven reliability.

5. Maintenance and Serviceability

Diesel engines in RTG cranes must be easy to maintain to minimize operational downtime. Considerations include:

• Accessibility of engine components: Facilitates routine inspections and repairs.
• Availability of spare parts: Critical for ports in remote locations.
• Manufacturer support and warranty: Ensures long-term reliability and assistance for troubleshooting.

Engines with modular designs often allow quick component replacement, reducing downtime during maintenance cycles.

6. Integration with Hybrid and Electric Systems

Some modern RTG cranes combine diesel engines with electric or hybrid drives. In such configurations:

• The diesel engine operates primarily as a generator for electric wheel motors and hoisting systems.
• Hybrid systems can recover braking energy and store it in batteries, reducing fuel consumption.
• Engine sizing may differ from conventional diesel-only RTGs, as peak loads can be managed by stored electrical energy.

Hybrid RTGs often require diesel engines optimized for constant-speed operation, emphasizing fuel efficiency and emission reduction rather than high torque for direct mechanical drive.

7. Noise and Vibration Considerations

RTG operations occur near port workers and often close to residential areas. Diesel engine selection should account for:

• Noise reduction technology: Mufflers, acoustic enclosures, and vibration dampening.
• Vibration minimization: Reduces wear on crane structures and improves operator comfort.

Engines designed for industrial mobility typically include these features to comply with occupational safety standards.

Recommended Practices for Diesel Engine Selection

Based on the factors above, ports and operators can follow these best practices:

1. Conduct a Load Analysis: Calculate lifting and traveling loads, duty cycles, and environmental conditions to determine engine power requirements.
2. Verify Emission Compliance: Confirm that the engine meets local regulatory standards for NOx, CO, and particulate matter.
3. Prioritize Fuel Efficiency: Evaluate engines with advanced injection systems, turbocharging, and adaptive load management.
4. Assess Reliability: Review historical performance data from similar RTG operations.
5. Plan for Maintenance: Consider service intervals, part availability, and warranty coverage.
6. Consider Future Integration: Ensure the engine can be retrofitted with hybrid or electric systems if needed.
7. Consult OEM Expertise: Engage with crane manufacturers and engine suppliers to select engines optimized for RTG applications.

Case Example: Modern Diesel RTG Engine Applications

Many ports have upgraded their RTG fleets to engines meeting Tier 4 Final or Stage IV standards, integrating turbocharged engines with diesel oxidation catalysts and particulate filters. These engines offer:

• Improved fuel efficiency by up to 15% compared to older Tier 2 engines
• Reduced NOx and particulate emissions
• Enhanced reliability and reduced downtime due to modular service design

Ports adopting such engines report lower lifecycle costs, smoother operations, and compliance with increasingly stringent environmental regulations.

Conclusion

Selecting the right diesel engine for an RTG crane is a multi-dimensional decision. Beyond horsepower, factors such as torque curves, emission compliance, fuel efficiency, durability, maintenance, noise, and hybrid integration play pivotal roles. A well-chosen diesel engine ensures high operational efficiency, reduced environmental impact, and long-term cost savings, while a poorly matched engine can compromise performance, increase fuel costs, and reduce the lifespan of the crane.

As container terminals continue to expand and environmental regulations become stricter, careful diesel engine selection is no longer optional—it is central to sustainable, efficient, and profitable RTG crane operations. Port operators are encouraged to work closely with crane OEMs and engine manufacturers to select engines tailored to specific operational requirements and site conditions.
