使用 Cloud Functions 和 Cloud Scheduler定期清理未使用的IP 資源

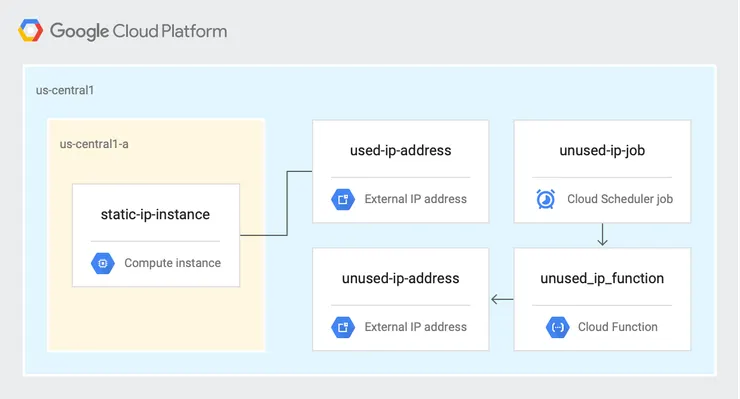

Overview

使用 Cloud Functions 和 Cloud Scheduler 來識別和清理浪費的雲端資源。

• 創建used-ip-address和unused-ip-address
• static-ip-instance使用used-ip-address
• 創建cloud function(unused_ip_function)檢查並刪除沒有被使用的ip資源
• 創建Cloud Scheduler定期執行cloud function

啟用 Cloud Scheduler API 和clone github repo

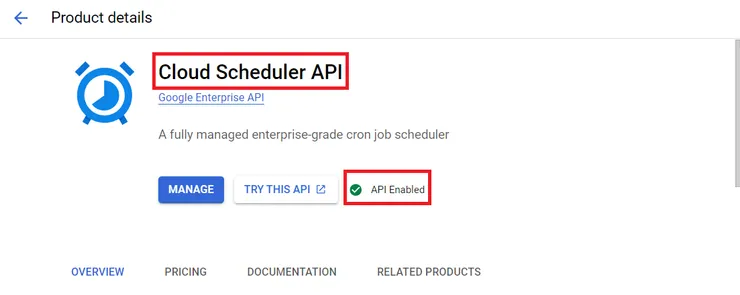

1. 啟用 Cloud Scheduler API

gcloud services enable cloudscheduler.googleapis.com

2. clone 原廠的github程式碼

git clone <https://github.com/GoogleCloudPlatform/gcf-automated-resource-cleanup.git> && cd gcf-automated-resource-cleanup/

3. 設定環境變數(PROJECT_ID, region, WORKDIR)

export PROJECT_ID=$(gcloud config list --format 'value(core.project)' 2>/dev/null)
export region=us-east1
export WORKDIR=$(pwd)

建立 IP 位址

cd $WORKDIR/unused-ip

1. 設定環境變數(USED_IP, UNUSED_IP)

export USED_IP=used-ip-address
export UNUSED_IP=unused-ip-address

2. 使用剛剛的環境變數建立兩個靜態IP

gcloud compute addresses create $USED_IP --project=$PROJECT_ID --region=us-east1
gcloud compute addresses create $UNUSED_IP --project=$PROJECT_ID --region=us-east1

3. 檢查環境中的ip資源

gcloud compute addresses list --filter="region:(us-east1)"

4. 將USED_IP的ip設定環境變數(USED_IP_ADDRESS)

export USED_IP_ADDRESS=$(gcloud compute addresses describe $USED_IP --region=us-east1 --format=json | jq -r '.address')

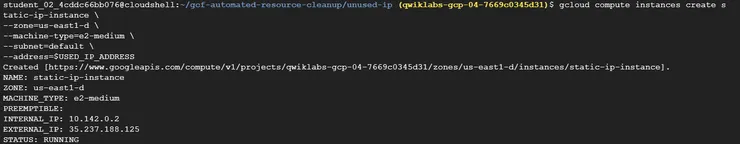

建立 VM

1. 使用USED_IP_ADDRESS建立VM(static-ip-instance)

gcloud compute instances create static-ip-instance \\
--zone=us-east1-d \\
--machine-type=e2-medium \\
--subnet=default \\
--address=$USED_IP_ADDRESS

2. 檢查IP資源使用情況

gcloud compute addresses list --filter="region:(us-east1)"

查看 github repo 的程式碼

1. grep "const compute" -A 31 → 查找"const compute"並往下顯示31行

cat $WORKDIR/unused-ip/function.js | grep "const compute" -A 31

output:

const compute = new Compute();
    compute.getAddresses(function(err, addresses){ // gets all addresses across regions
        if(err){
            console.log("there was an error: " + err);
        }
        if (addresses == null) {
            console.log("no addresses found");
            return;
        }
        console.log("there are " + addresses.length + " addresses");

        // iterate through addresses
        for (let item of addresses){

            // get metadata for each address
            item.getMetadata(function(err, metadata, apiResponse) {

                // if the address is not used:
                if (metadata.status=='RESERVED'){

                    // compute age by convering ISO 8601 timestamps to Date
                    var creationDate = new Date(metadata.creationTimestamp);
                    var currDate = new Date();
                    var addressAge = Math.floor((currDate - creationDate)/86400e3);;

                    // delete address
                    item.delete(function(err, operation, apiResponse2){
                        if (err) {
                            console.log("could not delete address: " + err);
                        }
                    })
                }

• compute.getAddresses(function(err, addresses) uses the getAddresses method to retrieve IP addresses across all regions in the project.
• item.getMetadata(function(err, metadata, apiResponse) gets the metadata for each IP address and checks its STATUS field.
• if ((metadata.status=='RESERVED') & (calculateAge(metadata.creationTimestamp) >= ageToDelete)){ checks whether the IP address is in use, calculates its age by using a helper function, and compares its age against a constant (set to 0 for the purposes of the lab).
• item.delete(function(err, operation, apiResponse2){ deletes the IP address.

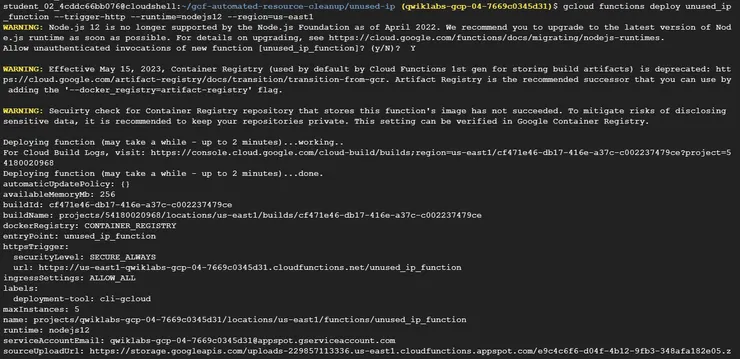

部署Cloud Function

1. 部署Cloud Function

gcloud functions deploy unused_ip_function --trigger-http --runtime=nodejs12 --region=us-east1

2. 將Cloud Function的Trigger URL設定環境變數(FUNCTION_URL)

export FUNCTION_URL=$(gcloud functions describe unused_ip_function --region=us-east1 --format=json | jq -r '.httpsTrigger.url')

使用Cloud Scheduler

1. 建立一個App Engine 以使用 Cloud Scheduler(舊版Scheduler需先起一個App Engine)

gcloud app create --region us-east1

2. 建立一個 Cloud Scheduler 任務以在每晚凌晨 2 點(UTC+0)執行 Cloud Function

gcloud scheduler jobs create http unused-ip-job \\
--schedule="* 2 * * *" \\
--uri=$FUNCTION_URL \\
--location=us-east1

•  時間表示使用 unix-cron 格式。

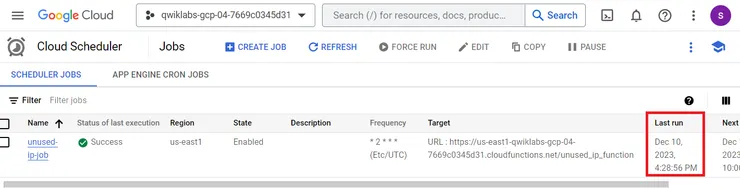

手動觸發Cloud Scheduler定時作業

1. 手動觸發Cloud Scheduler

gcloud scheduler jobs run unused-ip-job \\
--location=us-east1

檢查是否成功刪除

1. 檢查ip資源狀態只剩下used-ip-address

gcloud compute addresses list --filter="region:(us-east1)"

如果你喜歡這篇文章歡迎幫我按愛心鼓勵一下喔!~閱讀愉快!~
