- 這是一種生成式AI功能，可以將AWS控制台中的操作轉換成代碼
- 讓使用者可以輕鬆從原型設計過渡到生產環境部署
- 使用者可以選擇產生的代碼格式，如CloudFormation、CDK
- 代碼遵循AWS最佳實踐，可以幫助改進部署和創建可靠的生產工作負載
- 用戶不需要再在控制台和基礎設施即代碼(IaC)之間做選擇
- 一鍵操作即可擷取使用者在控制台的操作和工作流程並轉換為代碼
- 可以加速雲端解決方案的自動化代碼產生
- 幫助用戶輕鬆過渡到基礎設施即代碼的部署方式
目前僅在 us-east-1 的 EC2 控制台上可用
支援的格式：
- CDK(Java)
- CDK(Python)
- CDK(TypeScript)
- CloudFormation(JSON)
- CloudFormation(YAML)
實驗開始

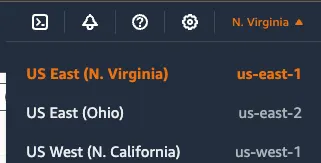

先確認區域是否為 us-east-1

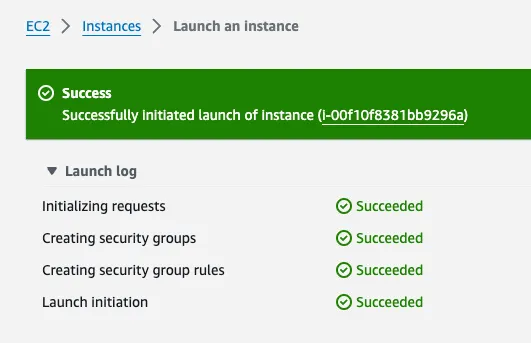

手動建立 EC2

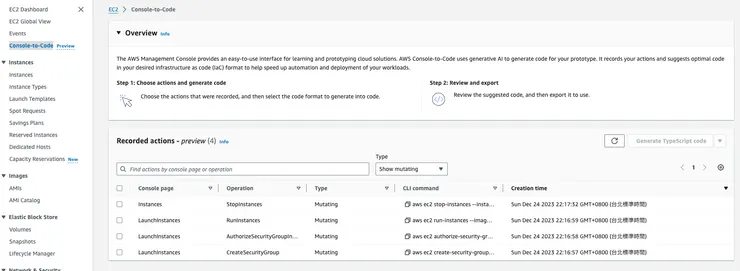

查看Console-to-Code 可以看到在 AWS Console 所執行的 API 動作名稱

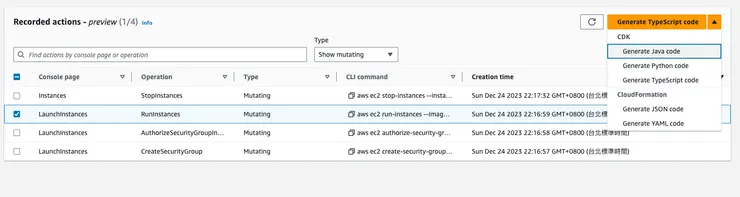

針對 RunInstances 選擇轉換的格式，其實也會產生CLI代碼

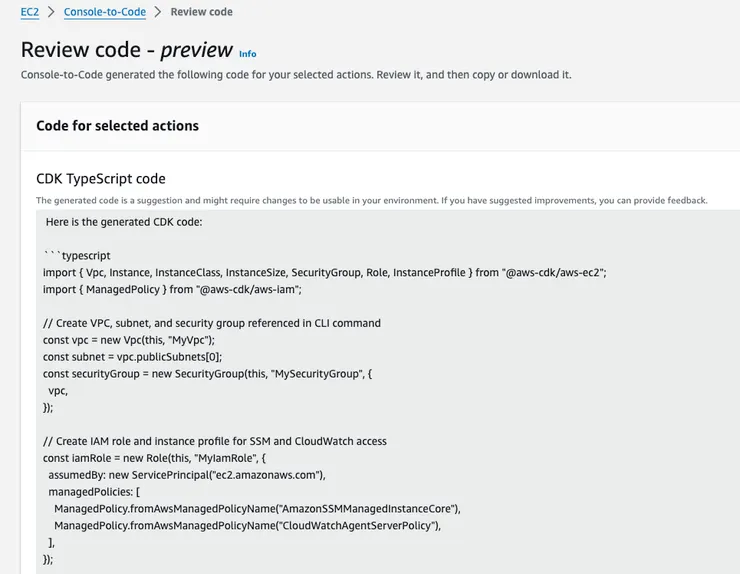

測試 CDK TypeScript code 稍後您將獲得一個 CDK 範本以及有關如何使用它的補充信息
如下參考完整範本
Here is the generated CDK code:
```typescript
import { Vpc, Instance, InstanceClass, InstanceSize, SecurityGroup, Role, InstanceProfile } from "@aws-cdk/aws-ec2";
import { ManagedPolicy } from "@aws-cdk/aws-iam";
// Create VPC, subnet, and security group referenced in CLI command
const vpc = new Vpc(this, "MyVpc");
const subnet = vpc.publicSubnets[0];
const securityGroup = new SecurityGroup(this, "MySecurityGroup", {
vpc,
});
// Create IAM role and instance profile for SSM and CloudWatch access
const iamRole = new Role(this, "MyIamRole", {
assumedBy: new ServicePrincipal("ec2.amazonaws.com"),
managedPolicies: [
ManagedPolicy.fromAwsManagedPolicyName("AmazonSSMManagedInstanceCore"),
ManagedPolicy.fromAwsManagedPolicyName("CloudWatchAgentServerPolicy"),
],
});
const instanceProfile = new InstanceProfile(this, "MyInstanceProfile", {
role: iamRole,
});
// Create EC2 instance
const instance = new Instance(this, "MyInstance", {
vpc,
instanceType: InstanceType.of(InstanceClass.T3, InstanceSize.NANO),
machineImage: MachineImage.latestAmazonLinux({
generation: AmazonLinuxGeneration.AMAZON_LINUX_2,
}),
keyName: "ming-Virginia",
networkInterfaces: [{
subnet,
associatePublicIpAddress: true,
securityGroups: [securityGroup],
}],
role: instanceProfile,
// Add tags
instanceName: "ming-ai-test",
// Metadata options
metadataOptions: {
httpTokens: 'required',
httpEndpoint: 'enabled',
httpPutResponseHopLimit: 2,
}
});
```
Reasoning:
- Created the VPC, subnet, and security group resources referenced in the CLI command
- Created an IAM role with SSM and CloudWatch managed policies, and an instance profile to associate it with the EC2 instance, as specified in the CLI command
- Created the EC2 instance with details like instance type, AMI, key pair, network interface config, IAM role, tags, and metadata options specified in CLI
- Used CDK constructs like Vpc, Instance, SecurityGroup, Role, InstanceProfile etc. to define the resources
- Made sure to include all details provided in CLI command in CDK code
AWS Console-to-Code 這功能對於，正在考慮當前操作轉換 IaC 可能會有所幫助。
CloudFormation 和 CDK 都可以提供，還提供了 CLI，如果想研究 CLI 的操作，蠻有用的
不過可能需要仔細檢查提供的程式碼以確保其按預期工作，但這是一個非常有用的功能，極推薦！
