Overhead cranes are essential lifting equipment used across a wide variety of industries, including manufacturing, construction, warehousing, steel production, shipbuilding, and power generation. While the crane’s structure, such as its girders, hoists, and trolley systems, plays a major role in determining its capabilities, the true flexibility of an overhead crane often comes from the specialized lifting attachments it uses. These attachments allow a crane to handle different shapes, sizes, weights, and materials with enhanced safety, speed, and efficiency.
In many cases, industries require custom overhead cranes tailored not only in terms of span, lifting height, and load capacity, but also with custom-designed lifting attachments. These attachments ensure the crane performs optimally in lifting specific loads that standard hooks or slings cannot manage effectively.
Understanding Lifting Attachments in Overhead Cranes
A lifting attachment, also referred to as a lifting device or end effector, is a tool that connects the hoist or lifting mechanism of the crane to the load. The design of these attachments directly affects the load's stability, the safety of the lifting operation, and the productivity of the handling process.
Specialized lifting attachments go beyond the traditional hook or chain setup and are often engineered to meet the unique requirements of specific applications. These attachments can be permanently integrated into a crane system or detachable depending on the nature of the tasks.
Common Types of Specialized Lifting Attachments

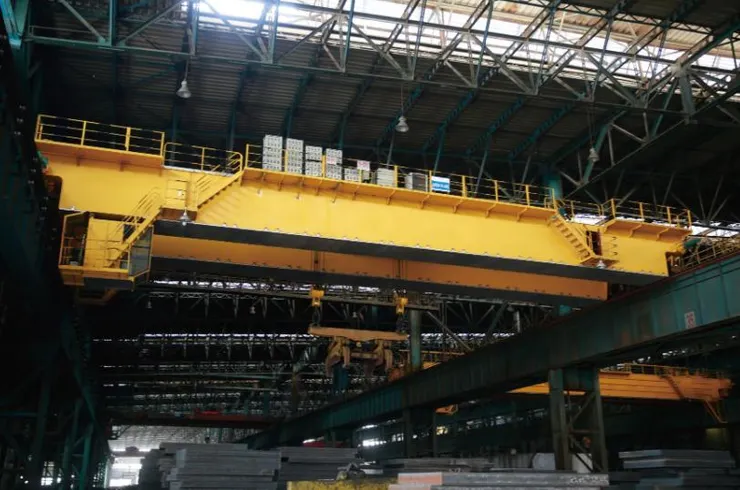

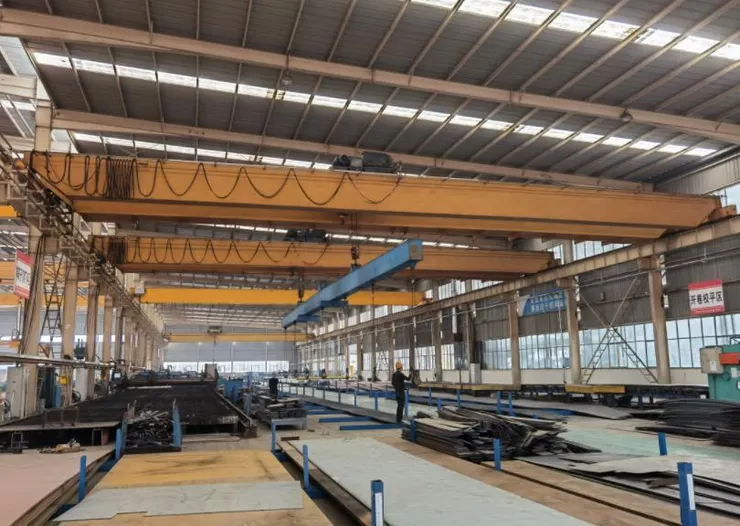

1. Spreader Beams and Lifting Beams
Spreader beams and lifting beams are some of the most widely used lifting attachments in custom overhead crane systems. They help distribute the load evenly, reducing stress on the load and lifting slings.
- Spreader beams use two or more lifting points connected to the hoist, maintaining the sling angle and preventing load compression.
- Lifting beams, on the other hand, have a single lifting point and are better suited for low-headroom applications.
These beams are especially useful in lifting long or large components like steel pipes, precast concrete elements, or machinery frames.
2. C-Hooks
C-hooks are commonly used in industries that handle coils, such as steel or paper industries. They are shaped like the letter "C" and are designed to engage the inside diameter of a coil.
Custom overhead cranes with C-hooks allow for safe and efficient handling of:
- Steel coils
- Paper rolls
- Aluminum coils
C-hooks can be counterbalanced and may include padding or lining to protect delicate coil materials.
3. Tongs and Grabs
Tongs and grabs are mechanical devices that use scissor-like or clamping action to grip and lift loads. They are typically used to handle items like:
- Scrap metal
- Ingots
- Pipes
- Rocks or boulders in mining
These attachments can be designed to open and close automatically using gravity or be powered hydraulically or electrically for precise control.
4. Magnets
Electromagnetic and permanent magnets are powerful lifting devices for handling ferrous metal objects. Magnetic overhead cranes are commonly used in steel mills and fabrication shops for lifting:
- Steel plates
- Bars and rods
- Scrap metal
Electromagnets can be turned on and off, providing flexibility in gripping and releasing loads. Battery backup systems may be integrated for safety in case of power failure.
5. Vacuum Lifters
Vacuum lifters use suction cups and vacuum technology to lift smooth, non-porous materials like:
- Glass panels
- Sheet metal
- Stone slabs
- Laminated wood boards
These attachments are ideal for industries like glass manufacturing, solar panel production, or furniture fabrication. They offer precision, minimize damage, and improve safety when lifting delicate or flat materials.
6. Lifting Clamps
Lifting clamps are commonly used for lifting plates, sheets, or structural sections. There are different types of clamps:
- Vertical plate clamps
- Horizontal plate clamps
- Beam clamps
These clamps can be used individually or in sets and are often selected for their ability to grip material securely without damaging the surface.
7. Rotating and Tilting Devices
For custom handling requirements where loads need to be rotated or tilted during the lifting process, rotating or tilting attachments can be integrated with the crane. These are especially useful for:
- Mold handling in foundries
- Rotating engine parts for maintenance
- Positioning components during assembly
Such devices are usually powered electrically or hydraulically and allow operators to manipulate loads with precision.
Applications of Specialized Attachments in Different Industries
Custom overhead cranes with specialized attachments are found across a wide range of industries. Below are some key application examples:
- Steel Industry: Coil lifters, magnets, and C-hooks are essential in handling steel coils, plates, and long sections in mills and distribution centers.
- Precast Concrete: Spreader beams and grabs are used to handle heavy concrete beams, panels, and blocks safely.
- Shipbuilding: Tongs and clamps are used for lifting large hull sections, steel plates, and engines during ship assembly.
- Power Plants: Rotating hooks and custom lifting beams are used to handle turbines, transformers, and heavy equipment during maintenance and installation.
- Manufacturing and Assembly Lines: Vacuum lifters and clamps assist in positioning delicate components like glass, sheet metal, or electronic panels.
- Warehouse Operations: Spreader beams and lifting clamps help streamline the handling of goods and reduce manual labor.
Benefits of Using Specialized Lifting Attachments
- Improved Safety: Tailored attachments reduce the risk of load instability, slipping, or operator error.
- Increased Efficiency: Handling time is minimized when the right attachment is used for the job.
- Reduced Damage: Attachments designed for specific materials minimize surface damage or deformation.
- Greater Load Versatility: One crane system can handle a broader range of loads with interchangeable attachments.
- Customization: Tailored solutions allow businesses to adapt their crane systems to unique production requirements.
Selecting the Right Lifting Attachment
When choosing or designing a specialized lifting attachment for a custom overhead crane, consider the following:
- Type of Load: Size, shape, weight, material, and center of gravity
- Frequency of Use: Continuous operation may require motorized or automated solutions
- Work Environment: Indoor vs. outdoor, temperature, humidity, corrosive atmosphere
- Crane Specifications: Hook travel, lifting height, capacity, and control system
- Regulatory Standards: Compliance with local and international lifting safety standards (e.g., ASME B30.20)
It’s essential to work with a trusted overhead crane manufacturer or supplier who can evaluate your lifting needs and provide a solution that integrates seamlessly with your overhead crane system.
Conclusion
Specialized lifting attachments are an integral part of modern overhead crane systems, especially when customized solutions are required. They transform standard lifting mechanisms into versatile, application-specific tools that ensure safety, productivity, and precision. By understanding the different types of attachments available and selecting the right ones for each task, businesses can maximize their investment in overhead crane systems and optimize their material handling operations.
As industries become more specialized and demands for precision handling grow, the role of custom lifting attachments will continue to expand. Investing in the right lifting tools not only improves operational efficiency but also contributes to a safer and more sustainable workplace.
