Container gantry cranes are vital in the logistics and port industry, used extensively for lifting and transferring containers between trucks, trains, and ships. With various types including Rail Mounted Gantry (RMG) cranes and Rubber Tyred Gantry (RTG) cranes, pricing can vary significantly depending on a multitude of factors. Whether you’re planning to invest in a new crane or comparing quotes from different suppliers, understanding the key elements that impact the price of a container gantry crane is crucial for making informed decisions.
Here are the 10 key factors that influence container gantry crane price:
1. Crane Type and Configuration
One of the most significant factors that affect container gantry crane price is the crane type. The two most common types—RMG cranes and RTG cranes—have different structural and operational characteristics, and thus, different price points.

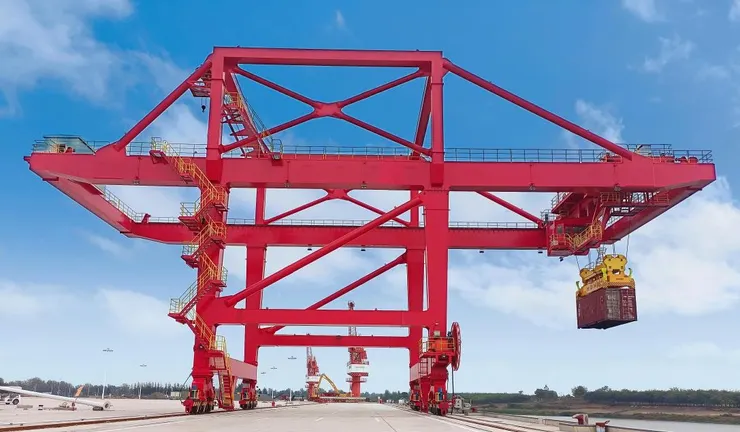

- RMG cranes are typically fixed on rails and used in container yards or intermodal terminals. They often come with higher initial installation costs due to rail system infrastructure.

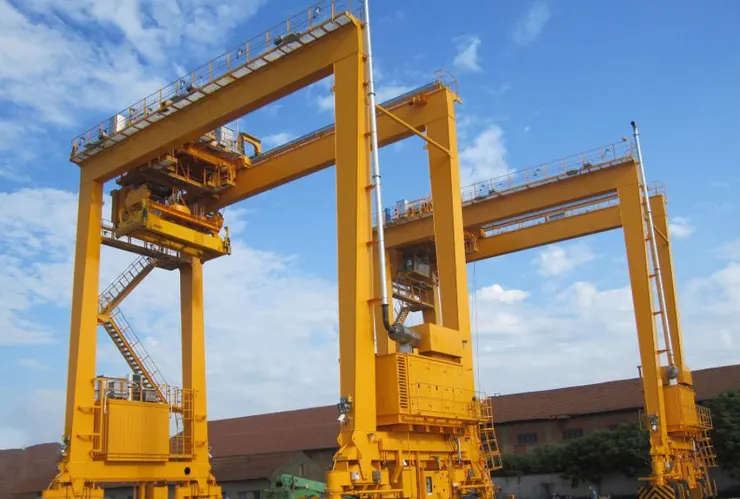

- RTG cranes, being mobile on rubber tires, offer flexibility in operation and are usually more expensive due to the added components like steering systems, engines (diesel or electric), and mobility controls.
Additionally, variations such as automated stacking cranes (ASC), hybrid-powered RTGs, or double cantilever structures also increase costs based on their complexity.
2. Lifting Capacity
The lifting capacity of the crane significantly influences the price. Container gantry cranes generally range from 30 tons to 65 tons, with larger capacities required for handling double-stacked or heavier container units.
The greater the lifting capacity:
- The larger and heavier the structural components.
- The more powerful the hoisting mechanisms.
- The more robust the safety systems need to be.
All of these contribute to increased material usage and engineering requirements, which drive up the cost.
3. Span and Lifting Height
The span (the horizontal distance between the crane’s legs) and lifting height (the maximum height the crane can lift containers) directly impact structural design and overall cost.
- A wider span allows the crane to straddle more container rows or railway lines, which demands more steel and a longer bridge girder.
- A greater lifting height is needed in high-density container yards where containers are stacked 5–6 high or more.
Increased dimensions result in more steel consumption, larger motors, and stronger foundations (especially for RMG cranes), all contributing to a higher price tag.
4. Drive System: Diesel vs. Electric vs. Hybrid
The type of drive system is another critical pricing factor. RTG cranes may come with diesel generators, fully electric power systems, or hybrid configurations.
- Diesel-powered RTGs are more affordable initially but have higher operational and maintenance costs.
- Electric-powered RTGs (via cable reel or busbar) have higher upfront costs but are more efficient and environmentally friendly.
- Hybrid RTGs combine diesel and battery systems, offering reduced emissions and fuel consumption at a moderate price point.
Choosing the right drive system will affect not only the purchase price but also long-term operational costs.
5. Automation and Smart Features
As automation technology advances, many port operators are adopting semi-automated or fully automated container gantry cranes to improve efficiency and safety. However, automation significantly increases the cost due to the integration of:
- Programmable logic controllers (PLCs)
- Anti-collision systems
- Remote monitoring
- Automated container positioning systems
- Operator cabins with advanced HMI (Human-Machine Interface)
While automation boosts productivity and reduces labor costs in the long term, it adds to the initial investment.
6. Steel Price and Raw Material Costs
Container gantry cranes are massive steel structures, and steel prices can have a substantial impact on gantry crane pricing. Fluctuations in global steel markets affect:
- Structural components (beams, girders, columns)
- Crane legs and undercarriage
- Support frames and load-bearing sections
Similarly, prices for electrical components, motors, control systems, and tires (for RTGs) can also be impacted by raw material costs, especially during periods of inflation or supply chain disruption.
7. Customization Requirements
Every container yard or terminal has specific operational demands. As a result, many gantry cranes are custom-engineered to match site conditions. Customization might involve:
- Special dimensions or capacities
- Unique span lengths to fit existing infrastructure
- Specific control modes (remote control, cabin, ground control)
- Integration with existing logistics or yard management systems
The more tailored the crane, the higher the cost due to engineering design work, specialized manufacturing, and longer lead times.
8. Brand and Manufacturer
The reputation and capabilities of the manufacturer also influence the pricing. Established brands often charge a premium based on:
- Proven performance
- Quality assurance
- Advanced technology
- Comprehensive after-sales support
However, lesser-known or regional manufacturers may offer lower pricing but vary in quality and service. Buyers must carefully evaluate the balance between price, reliability, and long-term value.
9. Delivery and Logistics Costs
The logistics involved in transporting a container gantry crane—especially larger RMG or RTG cranes—can add a significant amount to the total cost.
- Ocean freight, especially for oversized structures, is expensive.
- Special packaging, shipping containers, or partial assembly may be required.
- Inland transportation from port to project site also adds costs.
Additionally, import duties, tariffs, and customs fees should be considered for international purchases.
10. Installation and Commissioning Services
Installation is a major factor in the total cost of a gantry crane project. Depending on the type and complexity of the crane, you may require:
- On-site foundation work
- Assembly and alignment services
- Electrical connections
- Load testing and certification
- Operator training and commissioning
Some manufacturers include installation in the quoted price, while others offer it as an add-on service. Choosing a supplier that provides complete installation and commissioning support can streamline the process but may also raise the total cost.
Conclusion
The price of a container gantry crane is determined by a wide range of technical, operational, and logistical factors. While cost is a critical consideration, it’s essential to look at the total value—including performance, efficiency, support, and longevity—when evaluating crane investments.
By understanding the 10 key factors that influence container gantry crane pricing, you can make smarter purchasing decisions, negotiate more effectively with suppliers, and ensure your investment supports long-term operational success.
