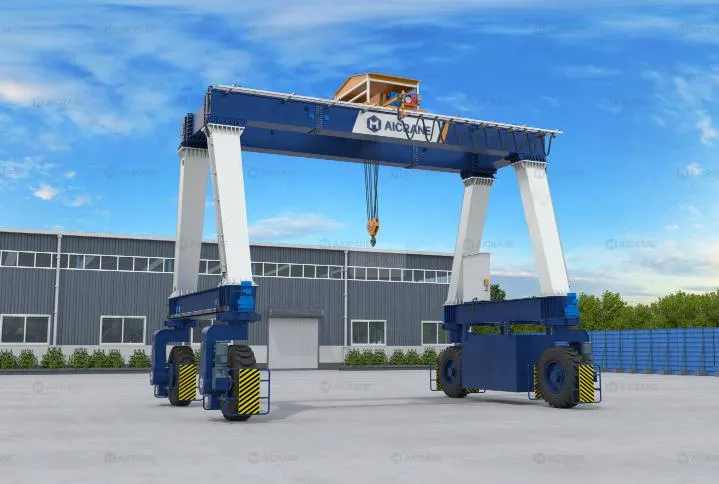

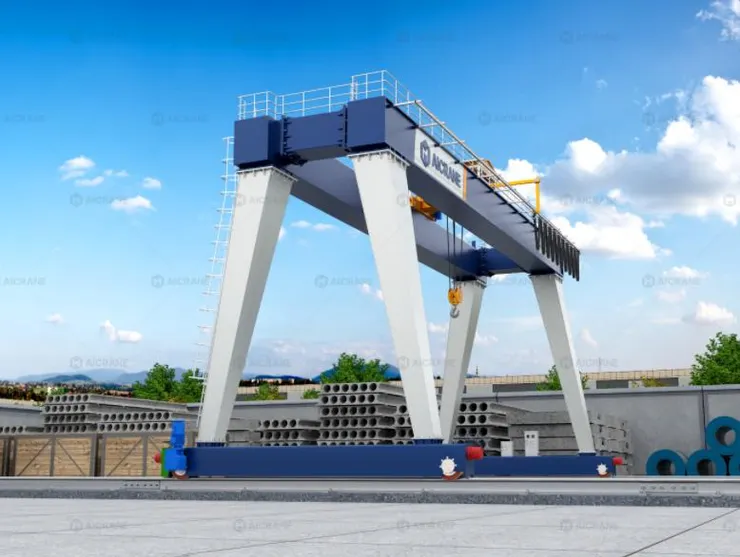

In the realm of industrial material handling, 25-ton gantry cranes occupy a crucial niche, offering a balance of strength and flexibility across applications such as construction, shipping yards, manufacturing, and logistics. While much attention is paid to crane structure, drive systems, and lifting mechanisms, one component is often underestimated in both complexity and importance - the brake system. A reliable, well-designed braking system is essential for the safe operation, positioning accuracy, and emergency control of a 25-ton gantry crane.
This article delves into the brake systems in 25 ton gantry crane design, focusing on safety functions, types of brakes, redundancy, and best practices to ensure fail-safe operation under all working conditions.
Why Brake Systems Matter in Gantry Cranes
Brakes in a 25-ton gantry crane are not just about stopping motion - they play a vital safety and operational role across various crane movements:
- Hoisting brake: Controls the raising and lowering of heavy loads.
- Trolley travel brake: Manages the movement of the trolley on the bridge.
- Crane travel brake: Controls the crane’s long travel movement along the rails or wheels.
Without a properly engineered braking system, there is a serious risk of runaway loads, crane instability, equipment damage, or worse - worker injury or fatal accidents. Brakes must perform consistently under normal operations, emergencies, and even during power failures.
Key Design Considerations for Braking Systems
When designing a brake system for a 25-ton gantry crane, several key parameters come into play:
- Load Capacity: A 25-ton capacity crane demands high-torque braking power to arrest motion safely.
- Duty Cycle: Cranes operating under Class D or E duty (frequent, heavy-duty operations) require robust brakes with higher thermal and mechanical endurance.
- Environment: Exposure to dust, moisture, or outdoor elements influences the choice of brake material and protection ratings.
- Redundancy: Backup systems are crucial to maintain safety in case of component failure or power loss.
Types of Brakes Used in 25-Ton Gantry Cranes
1. Electro-Hydraulic Thruster Brakes
One of the most common brake types used in 25-ton gantry cranes, especially in hoisting mechanisms and long-travel motors.
How It Works:
- A hydraulic thruster pushes the brake shoe open during operation.
- When power is cut, spring pressure forces the brake shoe against the drum or disc, stopping motion.
Advantages:
- Strong braking force
- Smooth operation
- Can be configured for fail-safe performance
Applications:
- Hoist and crane travel braking
- Outdoor and heavy-duty applications
2. Electromagnetic Disc Brakes
Used in lighter or precise braking operations, these brakes are powered by electromagnets.
How It Works:
- When power is applied, the electromagnet pulls the brake open.
- When power is lost or turned off, springs engage the brake.
Advantages:
- Compact
- Fast response
- Ideal for dry environments
Limitations:
- May not be suitable for high-dust or wet applications unless sealed.
3. Drum Brakes
Often used in traditional crane systems.
Features:
- Simple design
- Suitable for general-purpose use
- May be integrated with limit switches and sensors
While still used in many systems, drum brakes are gradually being replaced by disc brakes in modern 25-ton gantry crane designs for better performance and ease of maintenance.
Redundancy in Crane Brake Systems
A central principle in crane safety engineering is redundancy - ensuring that a failure in one brake or system doesn’t lead to catastrophic loss of control. In 25-ton gantry cranes, redundancy is achieved through several design strategies:
1. Dual Braking Systems
Especially in hoisting applications, gantry cranes are often equipped with:
- Primary brake (electro-hydraulic or electromagnetic)
- Secondary brake (emergency or holding brake)
These two systems function independently to ensure that if one fails, the other can stop or hold the load safely.
2. Load Brake + Holding Brake
This combination ensures that the crane can:
- Control the descent of a load (load brake)
- Hold the load in place when stationary (holding brake)
Such separation improves safety during maintenance and emergencies.
3. Fail-Safe Design
Modern crane brakes are designed to engage automatically upon power loss. This is critical in situations like:
- Electrical failure
- Operator error
- Emergency stop activation
A fail-safe brake system ensures that the crane stops in a controlled manner even if everything else fails.
Safety Features and Monitoring Systems
To enhance braking system performance and detect issues early, several monitoring and safety enhancements are often integrated into modern crane designs:
1. Brake Wear Monitoring
Sensors monitor brake shoe or pad thickness and alert operators when replacement is needed. This prevents accidents due to degraded brake performance.
2. Temperature Sensors
Overheating is a serious risk in high-duty cranes. Temperature sensors can trigger alarms or automatic shutdowns if brake components exceed safe operating temperatures.
3. Limit Switches and Interlocks
Installed on travel limits, hoist ranges, and brake actuation points to:
- Prevent over-travel
- Ensure brakes are properly engaged or disengaged
- Avoid collisions
4. Remote Diagnostics and Control
Advanced systems allow operators or maintenance personnel to:
- Remotely monitor brake status
- Trigger brake tests or resets
- Access diagnostics logs for predictive maintenance
Maintenance Best Practices for Crane Brakes
Regular maintenance is essential to keep the crane brake system reliable and compliant with safety standards. Some key practices include:
- Routine Inspection: Check for wear, corrosion, oil leakage (in hydraulic brakes), and electrical connection integrity.
- Lubrication and Cleaning: Keep mechanical parts clean and lubricated to prevent jamming or friction loss.
- Brake Testing: Conduct brake performance tests periodically under load conditions.
- Pad and Shoe Replacement: Follow manufacturer guidelines for replacement intervals.
- Training Operators: Ensure that crane operators are trained to recognize braking anomalies and respond properly.
Industry Standards and Compliance
Gantry cranes are subject to strict international and national safety regulations, such as:
- ISO 9927-1: Cranes – Inspections
- FEM 9.755: Recommendations for brakes on cranes
- ASME B30.2: Overhead and Gantry Cranes
- CMAA 70: Specifications for Top Running Bridge & Gantry Cranes
Compliant brake systems must meet stopping distance, emergency hold, and response time requirements as per these standards.
Conclusion
In a 25-ton gantry crane, the brake system is more than just a stopping mechanism - it is a critical component of operational safety, reliability, and control. Whether for lifting heavy loads, traveling across a yard, or stopping in emergencies, the brake must perform flawlessly. By choosing the right type of brakes (electro-hydraulic, electromagnetic, or dual systems), incorporating redundancy, monitoring wear and temperature, and adhering to strict maintenance routines, you ensure that your crane operates safely and efficiently in any industrial environment.
If you're designing or procuring a 25-ton gantry crane, never overlook the brake system. Work with experienced manufacturers who understand the technical and safety nuances of crane braking systems to deliver equipment that performs reliably today and well into the future.
