Steel products are the backbone of modern industry, forming the foundation for construction, shipbuilding, automotive manufacturing, and heavy machinery. The handling, lifting, and transportation of these heavy, bulky materials demand reliable, safe, and efficient equipment. Among the most effective solutions for such operations are gantry cranes, which provide the flexibility, capacity, and precision needed to move steel products in factories, warehouses, shipyards, and construction sites.
Understanding Gantry Cranes
A gantry crane is a type of overhead crane that features a bridge supported by legs, moving on wheels or rails. Unlike traditional overhead cranes fixed within a building structure, gantry cranes are freestanding, allowing them to operate over outdoor yards or large, open factory spaces. There are two main types: full gantry cranes and semi-gantry cranes.
- Full gantry cranes have legs on both sides of the load and move on rails or tracks laid on the ground. They are suitable for heavy-duty lifting and can handle extremely large steel components, such as beams, sheets, and coils.
- Semi-gantry cranes have a support leg on one side while the other side rides along a building structure or elevated rail. These are ideal for situations where space is limited on one side.

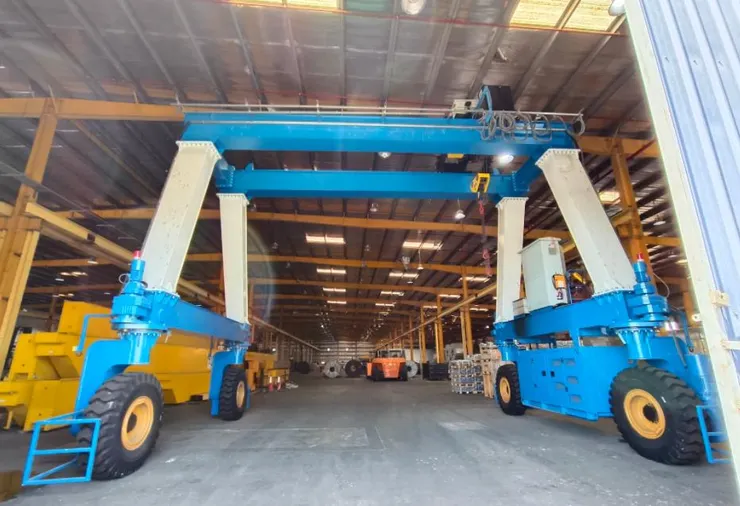

Gantry cranes can also be classified based on mobility: rail-mounted gantry cranes, which follow a fixed track, and rubber tyred gantry cranes, which can travel across concrete or asphalt surfaces. This mobility offers flexibility for handling steel products across different locations within a facility.
Applications in Steel Product Handling
Steel products come in various forms: structural beams, bars, plates, coils, sheets, pipes, and fabricated components. Each type presents unique challenges in lifting and transportation:
- Steel Beams and Plates – These are often long, heavy, and awkward to maneuver. Gantry cranes equipped with spreader beams or lifting clamps ensure the load is evenly balanced and lifted safely without bending or damaging the material.
- Steel Coils – Coils are dense and cylindrical, requiring specialized coil hooks or C-hooks for secure lifting. Gantry cranes allow operators to rotate, lift, and stack coils efficiently while minimizing the risk of slippage.

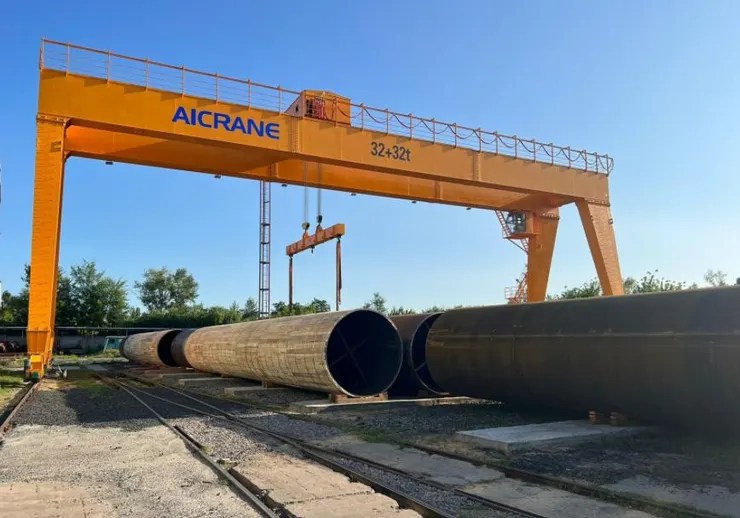

- Steel Pipes and Tubes – Handling long pipes requires cranes with extended spans and lifting slings or choker hooks to distribute weight evenly. This prevents rolling or shifting during transport.
- Fabricated Components – Complex assemblies, such as welded frames or machinery parts, often need precise positioning. Gantry cranes with hoists and trolleys allow smooth horizontal and vertical movement to place components accurately during storage or assembly.
Advantages of Using Gantry Cranes for Steel Products
1. High Load Capacity
Steel products are inherently heavy. Gantry cranes are engineered for substantial lifting capacities, ranging from a few tons to several hundred tons, depending on the model. This ensures that even the heaviest steel coils, beams, and plates can be moved safely.
2. Flexible Operation
Gantry cranes can operate in both indoor and outdoor environments, unlike traditional overhead cranes restricted by building structures. Mobile gantry cranes, in particular, allow steel products to be transported over various yard areas, reducing the need for additional handling equipment.
3. Enhanced Safety
Steel products can be dangerous if not handled correctly. Gantry cranes minimize manual handling, reducing workplace accidents. Modern gantry cranes are equipped with safety features such as anti-sway mechanisms, overload protection, emergency stop systems, and automated braking. This reduces the risk of damage to the steel, surrounding equipment, and personnel.
4. Precision Handling
Modern gantry cranes with electric or hydraulic hoists provide precise lifting, lowering, and lateral movement. This is critical when positioning steel products for storage, loading onto trucks or ships, or feeding them into fabrication lines. Remote control or cabin-operated systems further enhance precision while keeping operators at a safe distance from heavy loads.
5. Versatility
Gantry cranes can be fitted with a variety of lifting attachments: magnets for steel sheets, C-hooks for coils, clamps for plates, and spreader beams for long beams. This adaptability allows one crane to handle multiple types of steel products, improving operational efficiency and reducing equipment investment.
Key Considerations for Lifting Steel Products
1. Load Weight and Center of Gravity
Understanding the weight and balance of steel products is critical. An uneven load or misaligned center of gravity can cause tipping or uncontrolled movement. Operators must calculate load distribution and select the appropriate lifting gear to maintain stability.
2. Lifting Height and Span
The height to which a steel product must be lifted and the distance it must be transported influence the type of gantry crane required. For example, moving steel beams over other machinery may require higher clearance, while wide loads may necessitate cranes with larger spans.
3. Surface Conditions
For mobile gantry cranes, the ground surface must be stable and level to support heavy loads. Uneven or soft surfaces can compromise safety and operational efficiency. In rail-mounted setups, the track alignment must be regularly inspected to prevent derailment or uneven lifting.
4. Handling Attachments
The selection of lifting attachments is essential for safe operation. Improper clamps, hooks, or magnets can damage steel surfaces or cause accidents. Attachments should match the product’s shape, weight, and surface properties.
5. Operator Training
Even the most advanced gantry crane cannot operate safely without skilled personnel. Operators should undergo specialized training for steel handling, including load assessment, attachment selection, crane control, and emergency procedures. Regular refresher courses are essential to maintain safe and efficient operations.
Operational Tips for Efficient Steel Handling
- Pre-Operation Inspection: Check the crane’s mechanical and electrical systems, wire ropes, hooks, brakes, and limit switches before each shift.
- Secure Lifting Attachments: Ensure clamps, magnets, and hooks are correctly fastened to prevent load slippage.
- Slow and Steady Movement: Avoid sudden starts, stops, or jerks, which can destabilize steel products.
- Maintain Clear Paths: Keep pathways and crane movement areas free of obstacles to prevent collisions.
- Monitor Load Sway: Use anti-sway features or manual techniques to stabilize long or flexible steel loads.
- Communication: Maintain clear communication between crane operators, riggers, and ground staff using radios, signals, or hand gestures.
Case Example
Consider a steel fabrication yard producing large beams for construction projects. A rail mounted gantry crane with a 50-ton capacity moves beams from storage to cutting and welding stations. With spreader bars and remote control operation, the crane lifts beams up to 12 meters high and transports them 30 meters across the yard. This setup eliminates the need for forklifts, reduces labor costs, and ensures safety for the heavy steel products.
Conclusion
Gantry cranes are indispensable for lifting and transporting steel products, offering unmatched capacity, precision, and safety. By carefully selecting the appropriate crane type, span, lifting attachments, and operator training programs, steel handling operations can be conducted efficiently while minimizing risks to personnel and materials. Whether for indoor fabrication facilities, outdoor storage yards, or heavy industrial projects, gantry cranes provide a flexible and reliable solution for managing the weight, bulk, and complexity of steel products.
The continued evolution of gantry cranes, including automation, remote control, and smart monitoring systems, promises even greater efficiency and safety in steel handling. For industries that rely on steel, investing in quality gantry crane solutions is not just a matter of convenience—it is a strategic necessity that ensures productivity, safety, and long-term operational success.
