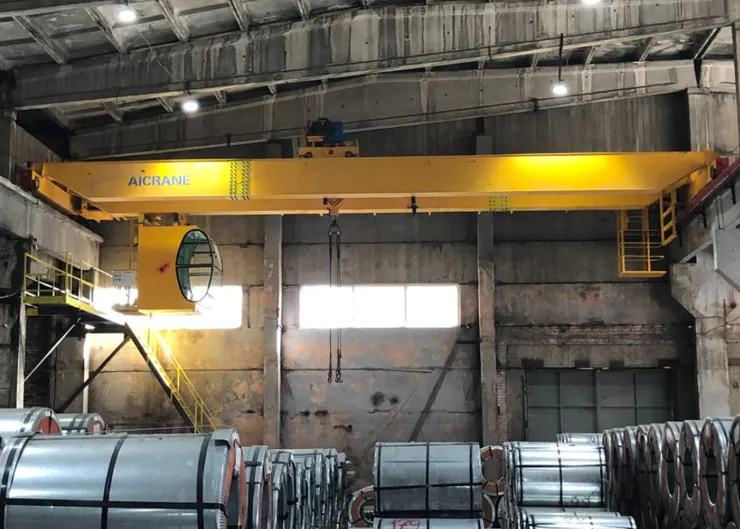

Warehouse overhead cranes play a pivotal role in modern material handling, enabling the efficient lifting and movement of heavy loads across factories, warehouses, and logistics centers. While the mechanical structure of these cranes—the girders, hoists, trolleys, and wheels—is highly visible, the electrical components that power and control them are equally critical. From the control panels that allow operators to command precise movements to the cabling that safely transmits electricity, the electrical system forms the backbone of a reliable and safe overhead crane operation. This article explores the key electrical components in warehouse overhead cranes and their functions, offering a comprehensive guide for operators, engineers, and warehouse managers.
1. Control Panels: The Nerve Center of the Crane
The control panel is the central hub through which an operator manages all crane functions. It houses various switches, circuit breakers, relays, and programmable logic controllers (PLCs) that coordinate the movement of the hoist, trolley, and bridge. Modern control panels are often designed with touchscreen interfaces, providing real-time data on crane status, load weight, and operational limits.
Key features of warehouse overhead crane control panels include:
- Emergency Stop Buttons: Allow operators to immediately halt all crane operations in unsafe conditions.
- Motor Starters and Variable Frequency Drives (VFDs): VFDs control the speed of electric motors, ensuring smooth acceleration and deceleration during lifting and movement. This is particularly important for delicate loads or when precise positioning is required.
- Overload Protection: Electrical sensors in the panel detect excessive current draw, which can indicate overload conditions. When triggered, the system stops the crane to prevent mechanical damage or accidents.
- Programmable Logic Controllers (PLCs): PLCs can automate complex sequences, such as coordinated lifting, trolley positioning, or dual-crane operations, ensuring efficiency and safety.
For a warehouse installing a 20-ton overhead crane, the control panel design must accommodate high-power motors, multiple operational modes, and integration with safety devices like limit switches and anti-collision systems.
2. Electric Motors: Driving the Movement
Electric motors are the powerhouse of an overhead crane. They convert electrical energy into mechanical motion, enabling the bridge to travel along the runway, the trolley to move along the bridge, and the hoist to lift and lower loads. Depending on the crane type, several motors may be installed:
- Bridge Travel Motors: Move the crane along the length of the warehouse. They are typically high-torque motors designed for heavy-duty operation.
- Trolley Travel Motors: Move the hoist across the span of the bridge, often requiring precise speed control for positioning heavy loads.
- Hoist Motors: Lift and lower the load, often equipped with gears and drum mechanisms for controlled lifting.

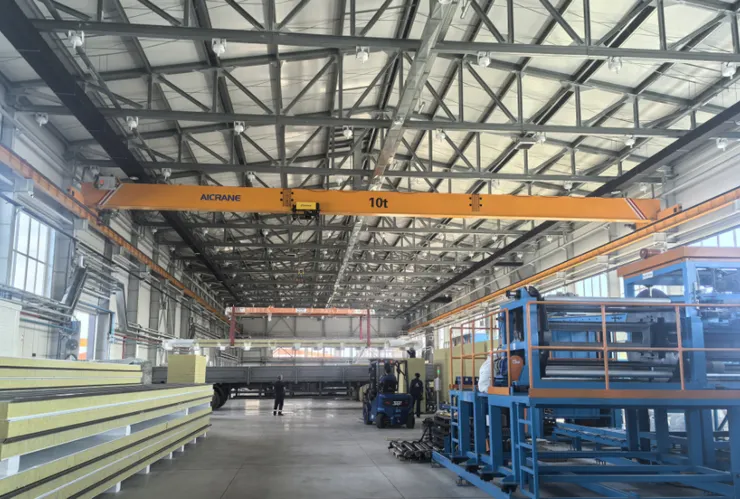

For energy efficiency and smoother operation, modern warehouse cranes often use three-phase AC motors in combination with VFDs. In smaller 5-ton or 10-ton cranes, DC motors are sometimes still used for fine control and responsiveness.
3. Cabling Systems: Power and Signal Transmission
Cabling is the often-overlooked but critical component of overhead crane electrical systems. It ensures reliable power transmission to motors and controls while protecting against environmental hazards. The choice of cabling depends on crane capacity, operational speed, and warehouse conditions.
There are three main types of crane cabling systems:
- Festoon Systems: Cables are suspended in a series of trolleys that move along the bridge. Festoon systems are flexible and commonly used for long spans and moderate-speed applications.
- Conductor Bars (Busbars): Ideal for high-power cranes, busbars provide a stable power connection along the crane runway. They reduce the wear and tear seen in cable festoon systems and can support continuous operation.
- Cable Reels: Used for cranes with variable operational paths, cable reels wind and unwind a power cable as the crane moves. This system is compact and ideal for mobile or semi-permanent cranes in warehouses.
High-quality insulation and shielding in crane cables prevent electrical faults, minimize electromagnetic interference, and ensure operator safety. For instance, in environments with dust, moisture, or corrosive chemicals, special cables with protective sheathing are essential.
4. Control Devices and Switches
An overhead crane’s electrical system also includes an array of switches and devices that allow the operator to control movement precisely. These include:
- Pendant Controls: Handheld devices connected by cable that allow the operator to move the crane from the floor level.
- Radio Remote Controls: Wireless control units that provide operators with freedom to maneuver the crane safely from a distance.
- Limit Switches: Safety devices installed on the crane to prevent over-travel of the hoist or trolley. They automatically cut power to the motors when the crane reaches its maximum permissible positions.
- Proximity Sensors and Load Sensors: Monitor crane position, speed, and load weight, feeding data to the control panel or PLC for safe operation.
For example, in a warehouse using a 40-ton gantry crane, load sensors integrated with the control panel can prevent lifting beyond rated capacity, reducing the risk of mechanical failure.
5. Safety Devices Integrated with Electrical Systems
Electrical systems in overhead cranes are closely tied to safety mechanisms. In addition to limit switches and overload sensors, modern cranes incorporate:
- Emergency Brakes: Electrically actuated brakes that engage automatically if power is lost or an emergency stop is triggered.
- Anti-Collision Systems: Detect obstacles or other cranes in shared operational areas, automatically slowing or stopping the crane.
- Wind Load Sensors: Particularly in large warehouse cranes near doors or open spaces, these sensors prevent operation in unsafe wind conditions.
Proper integration of these devices with the control panel ensures that the crane not only performs efficiently but also minimizes risks to personnel and equipment.
6. Transformers and Power Supply Considerations
Warehouse overhead cranes require stable electrical supply to function safely. Transformers may be installed to step down voltage from the facility’s high-voltage supply to levels suitable for crane motors and control circuits. Other power considerations include:
- Phase Balancing: Ensures that three-phase motors operate efficiently and without overheating.
- Harmonic Suppression: Reduces electrical noise from VFDs or other devices, which could interfere with sensitive sensors.
- Grounding and Earthing: Critical for operator safety and protection of electrical components from lightning or short circuits.
For a 50 ton overhead crane operating in a large industrial warehouse, robust transformers and cabling infrastructure are crucial to maintain continuous operation without interruptions or damage to motors.
7. Integration with Automation and Warehouse Management Systems
Modern warehouses increasingly rely on automation for efficiency. Electrical systems of overhead cranes are often integrated with warehouse management systems (WMS) and industrial automation platforms. This allows:
- Automated Positioning: Cranes can move to pre-programmed positions for loading and unloading.
- Data Logging: Electrical systems can track operating hours, load cycles, and motor performance for predictive maintenance.
- Remote Diagnostics: Electrical faults can be diagnosed remotely, minimizing downtime.
By connecting the electrical components to higher-level control systems, warehouses can optimize crane utilization, reduce energy consumption, and enhance safety.
8. Maintenance and Inspection of Electrical Components
Maintaining the electrical components of an overhead crane is as important as maintaining the mechanical parts. Key practices include:
- Regular inspection of control panels, switches, and wiring for wear or damage.
- Checking insulation resistance of cabling to prevent shorts or electrical leaks.
- Testing limit switches, load sensors, and safety devices for proper function.
- Cleaning dust and debris from motors and electrical enclosures to prevent overheating.
A preventive maintenance schedule ensures that a 20-ton or 40-ton crane operates reliably over years of warehouse service.
Conclusion
The electrical components of warehouse overhead cranes—ranging from control panels and motors to cabling and sensors—form the lifeline of safe and efficient material handling operations. These systems not only power the crane but also provide precise control, safety interlocks, and integration with modern automation technologies. Understanding the design, function, and maintenance of these components is essential for warehouse managers, engineers, and operators who aim to maximize productivity while ensuring operational safety. From the smallest 5-ton crane to the largest 50-ton gantry crane, investing in robust electrical systems and regular maintenance pays dividends in reliability, efficiency, and workplace safety.
