Electric gantry cranes are pivotal pieces of equipment in modern industrial and logistical operations. Found in shipyards, container terminals, warehouses, and steel plants, these cranes facilitate the movement of heavy loads efficiently, safely, and reliably. Understanding how electric gantry cranes operate, particularly the motor and control systems, is essential for operators, maintenance personnel, and industry professionals seeking to maximize crane performance and longevity.
Overview of Electric Gantry Cranes

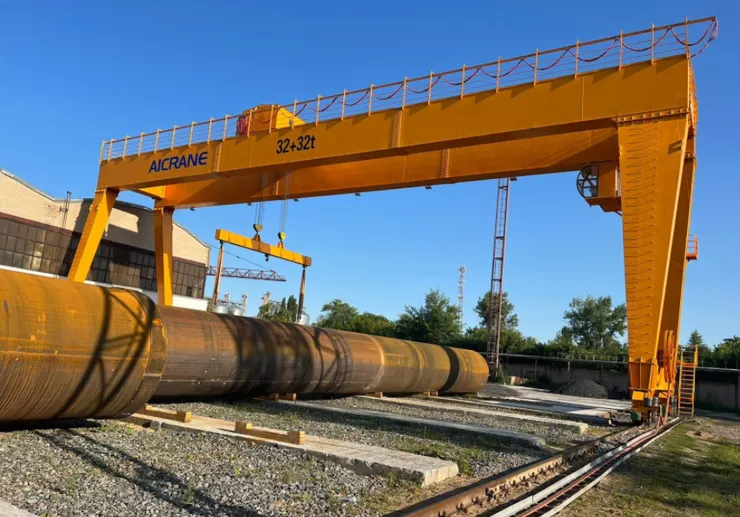

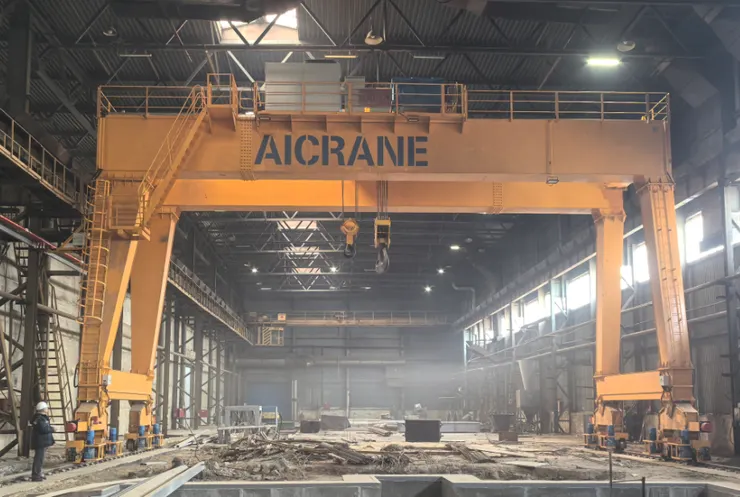

A gantry crane is a type of overhead crane with a bridge supported by two vertical legs that move on wheels or along a track. Unlike a traditional bridge crane that runs along fixed runways inside a building, electric gantry cranes can operate outdoors or indoors, providing mobility and flexibility in material handling. The crane’s key components include the bridge, trolley, hoist, motor systems, control system, and safety mechanisms.
Electric gantry cranes are powered entirely by electricity, which drives the motors responsible for various motions such as hoisting, lowering, bridge traveling, and trolley movement. This electric operation allows for precise control of load handling, energy efficiency, and reduced manual labor compared to hydraulic or manual alternatives.
Motor Systems in Electric Gantry Cranes
The motor system is the heart of an electric gantry crane, translating electrical energy into mechanical motion. A typical electric gantry crane has several motors dedicated to different functions:
1. Hoist Motor
The hoist motor is responsible for lifting and lowering the load. Electric hoist motors are usually either AC (Alternating Current) or DC (Direct Current) motors, depending on the crane’s design and application requirements.
- AC Hoist Motors: These motors are known for durability, low maintenance, and compatibility with variable frequency drives (VFDs) for precise speed control. AC motors are common in large gantry cranes due to their ability to handle heavy loads efficiently.
- DC Hoist Motors: DC motors offer excellent speed control and are often used in applications requiring fine positioning or frequent start-stop cycles. However, they typically require more maintenance due to brushes and commutators.
The hoist motor is coupled with a gearbox to modify speed and increase torque, allowing the crane to lift heavy loads smoothly. In some modern cranes, planetary gear systems are used for compact design and higher efficiency.
2. Bridge Travel Motor
The bridge travel motor moves the entire crane along the gantry rails. Depending on the crane’s span and load capacity, multiple bridge motors may be installed to distribute weight evenly and ensure smooth movement. Electric bridge travel motors often use variable frequency drives (VFDs) to allow acceleration and deceleration control, reducing mechanical stress and improving safety.
3. Trolley Travel Motor
The trolley, which carries the hoist, moves along the bridge. The trolley travel motor ensures precise positioning of the load over the intended location. Speed control is crucial here, as sudden movements can cause load swing or impact other objects. Trolley motors typically employ AC or DC technology with braking systems for controlled motion.
4. Auxiliary Motors
Some electric gantry cranes have additional motors for functions like rotating hooks, boom extensions, or clamping devices. These auxiliary motors enhance the crane’s versatility, especially in specialized applications like container handling or shipbuilding.
Control Systems in Electric Gantry Cranes
While motors provide the mechanical force, the control system orchestrates their operation, ensuring safety, precision, and efficiency. Modern electric gantry cranes use advanced electrical and electronic control systems that integrate multiple functions.
1. Traditional Control Methods
Early electric gantry cranes used contactors and relays for motor control. These systems allowed simple start-stop and direction control for each motor but lacked fine speed control. Operators manually coordinated the crane’s hoist and travel movements using push-button stations or pendant controls.
While reliable, traditional relay-based systems had limitations:
- Limited speed regulation
- Less energy efficiency
- Higher mechanical stress due to abrupt starts and stops
2. Variable Frequency Drives (VFDs)
The introduction of VFD technology revolutionized crane control. VFDs adjust the frequency of the electrical supply to AC motors, allowing variable speed operation. Key advantages include:
- Smooth acceleration and deceleration
- Reduced mechanical wear
- Energy savings during partial load operation
- Improved load positioning accuracy
Bridge and trolley travel motors, as well as hoist motors, often use VFDs in modern electric gantry cranes to enhance operational performance and safety.
3. Programmable Logic Controllers (PLC)
A PLC is a specialized computer that controls crane operations. It monitors sensor inputs, executes programmed logic, and sends commands to motors, brakes, and safety systems. PLC-based control systems offer:
- Automated sequencing of crane movements
- Integration with plant automation systems
- Advanced diagnostics and fault detection
- Support for remote operation and monitoring
PLCs can coordinate multiple motors simultaneously, preventing collisions and minimizing load sway during complex maneuvers.
4. Human-Machine Interface (HMI)
HMIs provide operators with a user-friendly interface to monitor and control crane operations. Features include:
- Load weight display
- Motor status indicators
- Real-time alarms for overloads or limit switch activation
- Operation logs and diagnostics
In some advanced electric gantry cranes, HMIs integrate with touchscreen panels, wireless remote controls, or tablet interfaces, allowing flexible and ergonomic operation.
5. Safety Systems
Safety is a critical aspect of gantry crane operation. Control systems are equipped with:
- Overload protection: Prevents lifting beyond rated capacity
- Limit switches: Prevent excessive hoist or trolley travel
- Anti-sway devices: Minimize load swing
- Emergency stop circuits: Instantly halts all operations in case of hazards
- Brake monitoring: Ensures motors remain stopped when needed
Integration of motor drives with these safety systems ensures the crane operates reliably and minimizes risk to personnel and materials.
Integration of Motor and Control Systems
The interplay between motors and control systems determines the efficiency, safety, and precision of an electric gantry crane. Key integration points include:
- Motor selection for load requirements: Control systems must match motor torque and speed characteristics to load capacity.
- Synchronization of multiple motors: Bridge motors, trolley motors, and hoist motors often operate together under PLC coordination to prevent structural stress and uneven load distribution.
- Dynamic braking and regeneration: Modern electric cranes can recover energy during deceleration and feed it back into the electrical system, reducing overall power consumption.
- Predictive maintenance: Sensors monitor motor temperature, vibration, and current draw, allowing the control system to schedule maintenance before failures occur.
Practical Applications
Electric gantry cranes with sophisticated motor and control systems are used in various industries:
- Shipbuilding: Handling massive ship components with precise positioning
- Container terminals: Rapid loading and unloading of containers from ships
- Steel plants: Moving steel coils, billets, and other heavy materials
- Warehouses and logistics centers: Managing heavy inventory efficiently
The combination of robust motors, precise control systems, and safety features ensures that electric gantry cranes remain reliable and versatile across demanding operations.
Conclusion
Electric gantry cranes operate through a sophisticated blend of motor and control systems, transforming electrical energy into precise mechanical motion. Motors provide the lifting and traveling power, while control systems—ranging from traditional relays to advanced PLCs and VFDs—ensure safe, efficient, and precise operation. Safety systems, HMIs, and predictive maintenance further enhance performance, making electric gantry cranes indispensable in industries where heavy lifting and material handling are essential. Understanding the integration of these systems is crucial for maximizing operational efficiency, minimizing downtime, and ensuring workplace safety. With continuous advancements in motor technology and digital control, electric gantry cranes are evolving into smarter, more energy-efficient, and highly reliable solutions for industrial lifting needs.
