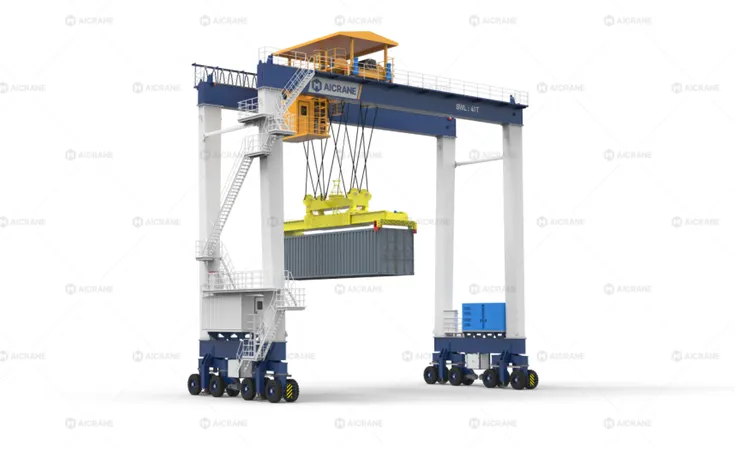

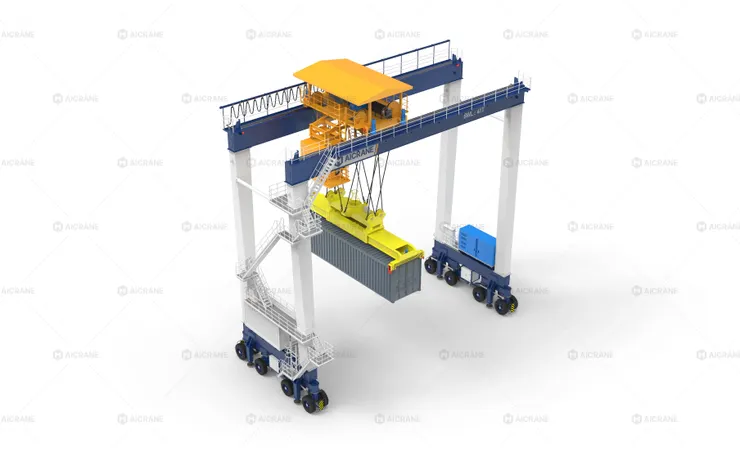

Rubber Tyred Gantry (RTG) cranes are a critical component of modern container handling operations, particularly in container yards, inland terminals, and intermodal logistics hubs. Unlike rail-mounted systems, RTG cranes rely on rubber tires for mobility, enabling flexible stacking operations and efficient yard utilization. However, the performance, safety, and service life of RTG cranes are closely tied to the environments in which they operate. Understanding typical RTG crane working environments is essential for proper crane selection, structural design, system configuration, and long-term operational planning.
This article explores the most common working environments for RTG cranes and explains how environmental factors influence design requirements, operational strategies, and maintenance practices.
1. Overview of RTG Crane Operating Environments
RTG cranes are primarily designed for outdoor container handling environments, where mobility, stacking efficiency, and adaptability are critical. Typical operating sites include:
- Marine container terminals
- Inland container depots (ICDs)
- Dry ports and rail-truck intermodal yards
- Logistics parks and distribution hubs
These environments expose rubber gantry cranes to variable weather, ground conditions, traffic density, and operational cycles. Unlike indoor lifting systems, RTG cranes must function reliably under continuous environmental stress while maintaining precise load control and high productivity.
2. Container Yard Environments in Seaports
Open and High-Traffic Operating Zones
The most common working environment for RTG cranes is the open container yard within a seaport terminal. These areas typically feature:
- Long container stacking rows
- Heavy truck and trailer traffic
- Continuous day-and-night operations
- Limited shelter from weather elements
RTG gantry cranes in port yards must handle high throughput while maintaining stable operations despite wind, rain, temperature fluctuations, and uneven pavement.
Environmental Design Implications
In these environments, RTG cranes are commonly equipped with:
- Wind-resistant gantry structures
- Anti-sway systems for container stability
- Wide-tread tires to distribute ground pressure
- Weather-proof electrical enclosures and control cabins
Wind load considerations are particularly important, as open port yards often experience strong coastal winds that directly affect crane stability and load handling accuracy.
3. Coastal and Marine Environmental Conditions
High Humidity and Salt Exposure
RTG cranes operating in coastal ports are continuously exposed to high humidity, salt-laden air, and corrosive marine environments. These conditions accelerate material degradation and increase maintenance demands.
Typical environmental challenges include:
- Corrosion of steel structures
- Electrical component degradation
- Reduced lifespan of cables and connectors
Protective Measures for Coastal RTG Cranes
To withstand marine environments, RTG cranes are often designed with:
- Enhanced anti-corrosion paint systems
- Galvanized or stainless steel components
- Sealed control cabinets with higher IP ratings
- Corrosion-resistant fasteners and bearings
Without these measures, environmental corrosion can significantly reduce crane service life and increase downtime.
4. Ground and Pavement Conditions in RTG Working Areas
Importance of Ground Bearing Capacity
Because RTG cranes move on rubber tires, ground conditions are a defining factor in their working environment. Typical surfaces include:
- Reinforced concrete pavement
- Heavy-duty asphalt yards
- Compacted industrial ground surfaces
The ground must support dynamic loads from the crane structure, lifted containers, and traveling motion.
Environmental Impact on Mobility
Uneven surfaces, poor drainage, or ground settlement can lead to:
- Reduced travel stability
- Increased tire wear
- Misalignment of stacking positions
- Higher structural stress during operation
Proper yard design and regular pavement inspection are essential for maintaining safe RTG crane operations.
5. Weather and Climate Variations
Temperature Extremes
RTG cranes operate in a wide range of climates, from hot desert terminals to cold northern ports. Environmental temperature directly affects:
- Hydraulic system performance
- Electrical component reliability
- Lubrication effectiveness
- Operator comfort
In hot climates, RTG cranes may require upgraded cooling systems, while cold environments demand low-temperature-rated lubricants and electrical components.
Rain, Snow, and Ice
Precipitation presents additional environmental challenges:
- Reduced traction on wet or icy surfaces
- Visibility limitations for operators
- Increased risk of electrical faults
RTG cranes operating in such environments often include anti-skid tire designs, enclosed operator cabins, and enhanced lighting systems to maintain safety and productivity.
6. Wind Conditions and Stability Requirements
Wind Load as a Critical Environmental Factor
Because RTG cranes are tall, mobile structures, wind conditions significantly affect their working environment. High winds can:
- Increase sway of suspended containers
- Reduce positioning accuracy
- Pose overturning risks during idle periods
Design Responses to Wind Environments
RTG cranes are typically designed with:
- Defined maximum operating wind speeds
- Storm locking and anchoring systems
- Wind monitoring sensors integrated into control systems
Understanding local wind patterns is essential when planning RTG crane operations and yard layouts.
7. Operational Density and Traffic Environment
Interaction with Yard Vehicles
RTG cranes operate in environments shared with:
- Terminal trucks
- Automated guided vehicles (AGVs)
- Reach stackers and forklifts
High-traffic conditions require RTG cranes to function safely within confined operating lanes.
Environmental Safety Considerations
To adapt to these environments, RTG cranes often feature:
- Travel speed limiting systems
- Anti-collision devices
- Warning alarms and visual indicators
- Clear line-of-sight cabin design
These systems help reduce the risk of accidents in busy container yards.
8. Environmental Noise and Vibration Conditions
RTG crane working environments are typically noisy, with constant equipment movement and container handling. Excessive noise and vibration can affect both operators and surrounding infrastructure.
Modern RTG crane designs address these conditions by:
- Using low-noise electric drives
- Optimizing structural damping
- Improving cabin insulation
These measures contribute to safer and more comfortable working environments.
9. Environmental Compliance and Sustainability Factors
Emissions and Energy Use
Many RTG cranes operate in regions with strict environmental regulations. Typical environmental requirements include:
- Reduced exhaust emissions
- Lower fuel consumption
- Noise level limitations
As a result, electric RTGs and hybrid RTGs are increasingly deployed in environmentally sensitive working environments.
Sustainable Yard Operations
RTG cranes designed for modern working environments may include:
- Regenerative braking systems
- Energy monitoring and optimization features
- Compatibility with green terminal initiatives
Environmental sustainability is now a key consideration in RTG crane deployment.
10. Maintenance Environment and Lifecycle Considerations
The working environment of an RTG crane directly influences maintenance strategies. Harsh conditions require:
- Shorter inspection intervals
- Enhanced lubrication schedules
- Regular corrosion protection checks
Understanding environmental impacts allows operators to plan proactive maintenance programs that extend crane lifespan and reduce unplanned downtime.
Conclusion
Understanding typical working environments for RTG cranes is essential for ensuring safe, efficient, and long-lasting container handling operations. From open port yards and coastal climates to high-traffic logistics hubs and extreme weather conditions, each environment places unique demands on RTG crane design and operation.
By carefully evaluating environmental factors such as weather, ground conditions, corrosion exposure, wind loads, and operational density, terminal operators and project planners can select RTG crane configurations that deliver reliable performance and long-term value. As container terminals continue to evolve, adapting RTG crane solutions to their working environments remains a cornerstone of efficient and sustainable yard operations.
