Preventing Structural Fatigue in 100T Gantry Crane Operation

Gantry cranes with a lifting capacity of 100 tons play a crucial role in heavy industrial environments such as shipyards, steel plants, precast concrete yards, railway yards, and large fabrication workshops. These cranes are designed to handle massive loads repeatedly, often operating under demanding duty cycles and environmental conditions. While they are engineered with robust steel structures and safety factors, one of the long-term risks associated with continuous heavy-duty operation is structural fatigue.

This article explores the causes of structural fatigue in gantry cranes and outlines practical strategies to prevent it during daily operations and long-term use.

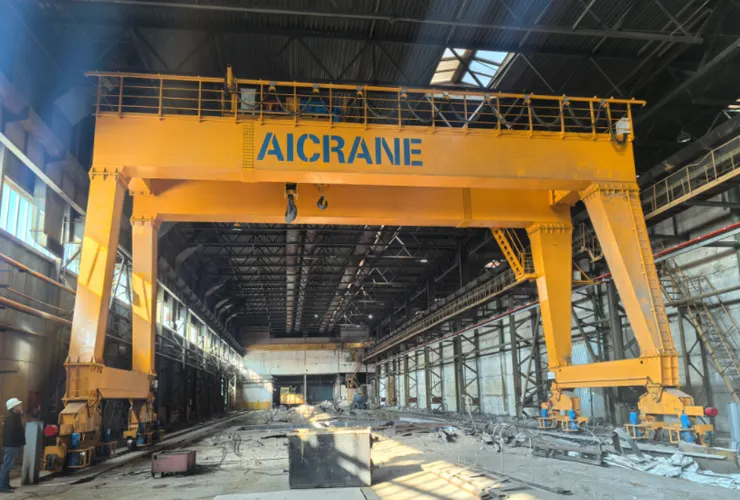

Understanding Structural Fatigue in Gantry Cranes

Structural fatigue is a progressive failure mechanism that occurs when metal components experience repeated loading and unloading cycles. Even when stresses remain below the material's maximum strength, micro-cracks can develop over time due to continuous stress fluctuations.

For a 100 ton gantry crane, fatigue risks are higher because:

• The crane handles extremely heavy loads.
• Operations involve frequent lifting cycles.
• Dynamic forces occur during starting, stopping, and load movement.
• Large steel structures are subjected to constant stress variations.

Typical structural components that may experience fatigue include:

• Main girders
• End beams
• Supporting legs
• Rail connections
• Welded joints
• Trolley rail sections
• Structural stiffeners

Over time, fatigue cracks can initiate in high-stress areas and propagate if not detected early.

Key Factors Contributing to Structural Fatigue

Several operational and environmental factors accelerate structural fatigue in heavy-duty gantry cranes.

1. Repetitive Heavy Load Cycles

The primary cause of fatigue is repeated load cycling. In industrial yards where 100 ton gantry cranes operate continuously, the crane may perform hundreds of lifting cycles daily.

Each cycle produces:

• Tensile stress when lifting
• Compressive stress when lowering
• Dynamic forces during acceleration and deceleration

Over thousands of cycles, these stresses gradually weaken the metal structure.

2. Overloading Beyond Rated Capacity

Operating a crane beyond its rated capacity dramatically increases stress on structural components. Even occasional overloading can significantly shorten the fatigue life of the crane.

When a 100 ton crane lifts loads exceeding its design limit:

• Structural stress rises sharply
• Welded joints experience abnormal strain
• Load distribution becomes uneven

This creates conditions where fatigue cracks develop faster.

3. Dynamic Impact Loads

Impact loads occur when loads swing, drop suddenly, or experience abrupt stopping. These forces may exceed the static load and produce high stress concentrations in the crane structure.

Common causes of impact loads include:

• Sudden braking during trolley movement
• Rapid hoisting or lowering
• Load sway during lifting
• Improper rigging or load imbalance

Impact forces are particularly harmful because they create stress spikes that accelerate fatigue damage.

4. Poor Load Distribution

Improper load positioning can create uneven stress across the gantry crane structure.

For example:

• Off-center loads may twist the main girder.
• Uneven lifting using multiple hooks can create torsional forces.
• Improper rigging angles may concentrate stress on certain structural members.

Over time, these irregular stresses contribute to localized fatigue damage.

5. Environmental Conditions

Outdoor gantry cranes frequently operate in challenging environmental conditions that affect structural integrity.

These may include:

• Corrosion from moisture or salt air
• Temperature fluctuations causing expansion and contraction
• Wind loads adding additional stress
• Dust or chemical exposure degrading protective coatings

Corrosion combined with cyclic loading significantly increases the likelihood of fatigue cracking.

Design Considerations that Reduce Fatigue Risks

Modern 100 ton gantry cranes incorporate several design features that help reduce fatigue risks.

High-Strength Structural Steel

Manufacturers typically use high-quality structural steel with strong fatigue resistance. Proper material selection improves the crane's ability to withstand repeated stress cycles.

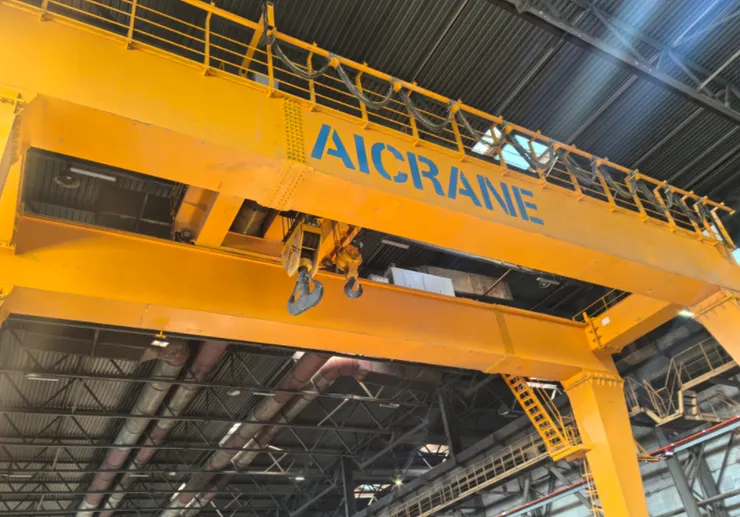

Optimized Girder Design

The main girder is one of the most critical structural components. Engineers design it with:

• Adequate stiffness
• Reinforced stress zones
• Proper load distribution across the span

Box girder designs are often preferred because they offer superior torsional rigidity and fatigue resistance.

Reinforced Welded Joints

Welded joints are common locations for fatigue cracks. To prevent this, engineers use:

• Full penetration welding
• Smooth weld transitions
• Reinforcement plates in high-stress areas

Proper welding quality significantly extends structural life.

Anti-Sway and Control Systems

Modern gantry cranes often include anti-sway technology and smooth motion control systems that reduce dynamic loading during operation. This minimizes structural stress and improves overall stability.

Operational Practices to Prevent Structural Fatigue

While crane design plays a major role, operational practices are equally important in preventing fatigue damage.

Maintain Proper Load Limits

Operators must always respect the crane's rated lifting capacity. Load monitoring systems and overload protection devices should be used to ensure safe lifting conditions.

Key practices include:

• Verifying load weight before lifting
• Avoiding sudden load shocks
• Following proper rigging procedures

Ensure Smooth Crane Movements

Abrupt movements generate unnecessary stress on structural components. Operators should focus on smooth, controlled motions during:

• Hoisting
• Trolley travel
• Gantry travel
• Load positioning

Variable frequency drive (VFD) systems help reduce acceleration shocks and protect the structure.

Reduce Load Swing

Load sway increases structural stress and can cause impact forces. To minimize swinging:

• Lift loads slowly
• Avoid sudden stops
• Use taglines when necessary
• Apply anti-sway control systems

Stable load handling reduces fatigue stress on the crane.

Train Operators Properly

Operator training is essential for fatigue prevention. Experienced operators understand how their actions affect crane structures.

Training should include:

• Load handling techniques
• Proper acceleration and braking
• Recognizing unusual structural behavior
• Safe lifting practices

Well-trained operators significantly reduce fatigue risks.

Importance of Regular Structural Inspections

Routine inspections are critical for detecting fatigue damage before it becomes dangerous.

Visual Inspections

Daily or weekly visual checks can identify early warning signs such as:

• Surface cracks
• Deformed structural members
• Loose bolts
• Corrosion or paint damage

Operators should immediately report any abnormal findings.

Non-Destructive Testing (NDT)

Advanced inspection methods help detect hidden structural defects. Common techniques include:

• Ultrasonic testing
• Magnetic particle inspection
• Dye penetrant testing
• Radiographic inspection

These tests are especially important for weld seams and high-stress areas.

Monitoring High-Stress Areas

Certain locations in a 100 ton gantry crane are more prone to fatigue damage, including:

• Girder-to-leg connections
• End beam joints
• Trolley rail connections
• Welded reinforcement plates

Regular monitoring of these zones ensures early detection of structural issues.

Preventive Maintenance Strategies

A well-planned maintenance program helps prevent fatigue-related failures.

Structural Alignment Checks

Misalignment between crane wheels and rails can introduce additional stress on the structure. Periodic alignment checks ensure smooth crane travel.

Corrosion Protection

Maintaining protective coatings helps prevent corrosion-related fatigue. This includes:

• Regular repainting
• Cleaning structural surfaces
• Applying anti-corrosion treatments

Protecting steel surfaces improves long-term durability.

Repairing Minor Cracks Early

Small fatigue cracks can grow rapidly if ignored. Immediate repair procedures should include:

• Crack detection
• Structural reinforcement
• Professional welding repairs

Early intervention prevents major structural failures.

Role of Modern Monitoring Technologies

Advanced monitoring technologies are increasingly used in heavy duty gantry crane systems.

These may include:

• Structural stress monitoring sensors
• Load cycle recording systems
• Smart maintenance software
• Real-time crane diagnostics

Such technologies allow maintenance teams to track structural performance and predict fatigue risks before failures occur.

Conclusion

Structural fatigue is an inevitable challenge in heavy-duty lifting equipment, especially for 100 ton gantry cranes operating under frequent load cycles. However, with proper design, responsible operation, and proactive maintenance strategies, fatigue-related risks can be effectively minimized.

Preventing structural fatigue requires a comprehensive approach that includes respecting load limits, ensuring smooth crane operation, performing regular inspections, and maintaining structural integrity through preventive maintenance. Advanced monitoring technologies and operator training further enhance safety and extend crane lifespan.

By implementing these best practices, industrial facilities can ensure that their 100 ton gantry cranes continue to operate safely, efficiently, and reliably for many years, supporting demanding material handling tasks without compromising structural integrity.
