How to Choose the Right Crane for Precast Concrete Plants

In precast concrete production, material handling is one of the most critical factors affecting productivity, safety, and product quality. Precast plants must move heavy and oversized components such as beams, wall panels, slabs, columns, and molds through multiple production stages—casting, curing, storage, and transportation. Because of this complex workflow, selecting the right overhead crane or gantry crane system is not just a technical decision, but a strategic investment that directly impacts operational efficiency and long-term profitability.

This article provides a professional and structured guide on how to choose the right overhead and gantry crane for precast concrete plants.

Understanding Crane Types in Precast Concrete Plants

Before selecting a crane system, it is important to understand the two main types used in precast operations.

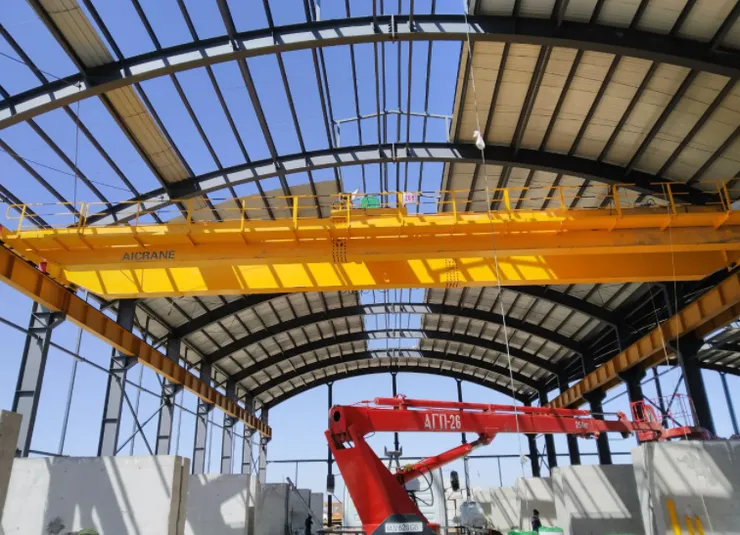

Overhead Cranes (Bridge Cranes)

Overhead cranes operate on elevated runways installed inside production buildings. The crane moves along fixed rails mounted on columns or building structures.

Key features include:

• Ideal for indoor production workshops
• High precision lifting and positioning
• Efficient for repetitive production cycles
• Common capacity range: 5–50 tons in precast applications

Overhead cranes are typically used in:

• Mold preparation areas
• Casting stations
• Production lines inside workshops

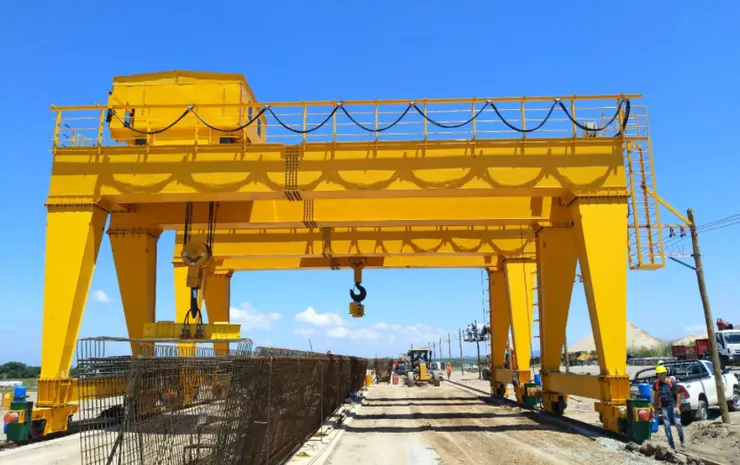

Gantry Cranes (Including RTG or Rail-Mounted Types)

Gantry cranes operate on ground-level rails or rubber tires and have a self-supporting structure.

Key features include:

• Suitable for outdoor yards
• Wide-span coverage
• High lifting capacity for heavy precast components
• Flexible movement across storage areas

In precast yards, gantry cranes are widely used for:

• Moving finished concrete elements
• Loading/unloading trucks
• Stacking large beams and panels

Key Factors for Selecting the Right Crane System

Choosing between overhead and gantry cranes depends on several critical technical and operational factors.

1. Production Capacity and Load Requirements

The first and most important factor is the weight and volume of precast products.

Small to Medium Production Plants

• Typical loads: 5–20 tons
• Suitable crane: single or double girder overhead cranes
• Focus: precision and frequent lifting cycles

Large-Scale Precast Plants

• Typical loads: 20–100+ tons
• Suitable crane: gantry cranes or heavy-duty overhead systems
• Focus: high capacity and continuous operation

As production volume increases, cranes must handle heavier loads and higher lifting frequency without overheating or performance loss.

2. Plant Layout and Space Availability

Plant layout is one of the most decisive factors.

Indoor Workshop Layout

If production is concentrated inside buildings:

• Overhead cranes are preferred
• They utilize vertical space efficiently
• No ground obstruction is required

Outdoor Yard Layout

If large outdoor storage areas are used:

• Gantry cranes are essential
• They can move freely across open space
• Suitable for stacking and transporting finished products

A well-designed precast facility often combines both systems:

• Overhead cranes for production
• Gantry cranes for yard logistics

3. Type of Precast Products

Different precast components require different handling strategies.

Small Precast Elements

• Wall panels
• Small beams
• Standard molds
  👉 Overhead cranes provide sufficient control and speed

Large Structural Components

• Bridge beams
• Tunnel segments
• Heavy molds
  👉 Gantry cranes are more suitable due to higher capacity and span coverage

For long or irregular components, stability and balanced lifting become more important than speed.

4. Required Precision and Handling Accuracy

Precast production requires high precision to avoid damage.

Overhead Crane Advantage

• Better positioning accuracy
• Smooth movement inside controlled environment
• Ideal for mold alignment and demolding operations

Gantry Crane Advantage

• Stable lifting of large outdoor components
• Less sensitive to building constraints
• Suitable for heavy but less precision-sensitive operations

In general:

• Overhead cranes = precision
• Gantry cranes = capacity and coverage

5. Duty Class and Working Frequency

Precast plants operate continuously with high lifting frequency.

Key considerations:

• Cycle time per lift
• Daily working hours
• Load repetition rate

For high-frequency operations:

• Double girder overhead cranes are preferred for indoor cycles
• Heavy-duty gantry cranes (A5–A7 duty class) are required for yard operations

Choosing a lower-duty crane for heavy production leads to overheating, faster wear, and reduced service life.

6. Safety Requirements

Safety is critical in precast handling due to heavy loads and personnel interaction.

Overhead Crane Safety Advantages

• Controlled indoor environment
• Reduced wind impact
• Lower risk of external interference

Gantry Crane Safety Considerations

• Outdoor wind load resistance required
• Anti-sway systems recommended
• Ground stability must be ensured

Modern systems often include:

• Load monitoring systems
• Anti-collision sensors
• Emergency stop protection

Safety design must match operational risk level.

7. Flexibility and Future Expansion

Precast plants often expand over time.

Overhead Crane Systems

• Fixed infrastructure
• Limited flexibility once installed
• Suitable for stable production lines

Gantry Crane Systems

• Highly flexible yard expansion
• Can be relocated or extended
• Suitable for growing production sites

If future expansion is expected, gantry cranes provide better scalability.

8. Cost Considerations

Cost includes more than just purchase price.

Overhead Crane Costs

• Lower initial investment
• Requires building structure support
• Efficient for indoor production lines

Gantry Crane Costs

• Higher initial investment for large systems
• Requires ground preparation
• Higher flexibility and yard efficiency

However, cost should be evaluated based on:

• Productivity improvement
• Labor savings
• Material damage reduction
• Long-term ROI

A cheaper system may become more expensive in long-term operation if it reduces efficiency.

9. Integration of Both Systems (Best Practice)

In modern precast plants, the most efficient solution is often a combined crane system:

• Overhead cranes handle production inside workshops
• Gantry cranes manage yard storage and logistics

This division creates:

• Smooth workflow transition
• Reduced bottlenecks
• Higher production output
• Better space utilization

This integrated approach is widely used in large-scale precast facilities globally.

Conclusion

Choosing the right overhead and gantry crane system for a precast concrete plant requires careful evaluation of multiple factors, including production capacity, plant layout, product size, precision requirements, duty class, safety conditions, and future expansion plans.

Overhead cranes are ideal for indoor precision work and high-frequency production cycles, while gantry cranes are essential for outdoor handling, large precast components, and yard logistics.

In most modern precast plants, a combination of both systems delivers the best performance—ensuring smooth material flow from production to storage and transportation.

A well-designed crane system is not just handling equipment; it is the backbone of an efficient, scalable, and profitable precast production operation.
