Overhead cranes play a crucial role in numerous industries, from manufacturing and construction to shipbuilding and warehousing. These systems handle heavy loads, often in demanding or hazardous environments, where any failure can lead to significant safety risks, equipment damage, or production downtime. To mitigate such risks, fail-safe design considerations must be integrated into the crane system from the earliest stages of engineering. This article explores the key principles and components of fail-safe design in overhead cranes, why they are essential, and how they contribute to safe and reliable crane operations.
What is a Fail-safe Design?
A fail-safe design ensures that if a system or component fails, it defaults to a safe condition. In overhead cranes, this means incorporating features and controls that prevent uncontrolled movements, protect personnel, preserve structural integrity, and allow for quick recovery from failures. Rather than trying to eliminate all possible failures—a near-impossible task in complex systems—a fail-safe approach accepts that failures may occur and focuses on minimizing their impact.
Why Fail-safe Design Matters in Overhead Cranes
Overhead cranes handle extremely heavy loads suspended in midair. Any malfunction—such as a brake failure, hoist cable breakage, or control system error—could lead to dropped loads, collisions, or tipping. Fail-safe features are thus vital for:
- Protecting workers and preventing fatalities
- Avoiding costly damage to machinery and materials
- Ensuring compliance with international safety standards (e.g., OSHA, ASME, EN)
- Reducing liability and insurance claims
- Maintaining operational continuity
Key Fail-safe Design Considerations
1. Redundant Systems
Redundancy is a cornerstone of fail-safe design. It involves duplicating critical components to ensure that if one fails, the backup can take over. In overhead eot crane for sale, common redundancies include:
- Dual hoist ropes or chains: If one fails, the second maintains the load.
- Redundant brakes: Two braking systems—typically a service brake and an emergency brake—are used so that if one fails, the other can stop the load safely.
- Dual limit switches: These prevent over-travel in hoisting operations. A second, emergency limit switch provides backup in case the primary fails.
2. Mechanical Safety Features
Fail-safe mechanical components are essential for preventing accidents even if controls or power systems malfunction.
- Load brakes and holding brakes: These automatically engage when power is lost, preventing a suspended load from dropping.
- Overload protection devices: These stop hoisting if the load exceeds rated capacity, preventing mechanical failure.
- End stops and buffers: Installed on runway beams and trolleys to prevent over-travel and collision with end walls.
3. Electrical and Control Fail-safes
Modern cranes rely heavily on electrical systems, which must also be designed with fail-safe principles:
- Emergency stop systems: Easily accessible buttons or pull cords immediately cut power and engage brakes when activated.
- Phase monitoring relays: Prevent operation if phase sequence or voltage is incorrect, avoiding motor damage.
- Automatic reset prevention: Requires manual intervention after a fault to prevent accidental restarts.
- Position feedback systems: Encoders or limit switches that detect abnormal movement or positioning.
4. Fail-safe Programmable Logic Controllers (PLCs)
Advanced overhead crane systems often utilize PLCs to manage lifting operations. These must be fail-safe certified, meaning they have:
- Built-in diagnostics to detect faults.
- Watchdog timers to reset or halt operations if the PLC malfunctions.
- Safe-state defaults, such as automatically lowering the load slowly or stopping all motion if an error is detected.
5. Manual Override and Backup Controls
In emergencies or power failures, crane operators must be able to regain control manually.
- Manual lowering devices on hoists allow operators to bring down loads safely.
- Backup pendant controls or wireless remotes can take over if the primary control system fails.
- Battery backup systems (UPS) for control circuits can provide limited operation during power loss.
Design Standards and Compliance
Fail-safe features are often guided by safety standards that define minimum requirements. Some of the leading standards include:
- OSHA (Occupational Safety and Health Administration)
- ASME B30.2 for overhead and gantry cranes
- FEM (Fédération Européenne de la Manutention) guidelines
- EN ISO 13849-1: Safety of machinery – Safety-related parts of control systems
Compliance with these standards ensures that crane systems are built and maintained with sufficient attention to risk management and fail-safe design.
Fail-safe Maintenance Practices
Fail-safe design does not end with installation; it must be supported by routine inspection and maintenance:
- Frequent testing of brakes, limit switches, and emergency stop functions.
- Visual inspections of ropes, hooks, and structural elements for wear or damage.
- Calibration of load limiters and control sensors to maintain accuracy.
- Logbooks and digital diagnostics to track issues and maintenance history.
Regular inspections help detect wear and tear early and verify that fail-safe systems remain functional. In many jurisdictions, scheduled third-party inspections are mandated by law.
Case Example: Fail-safe in Action

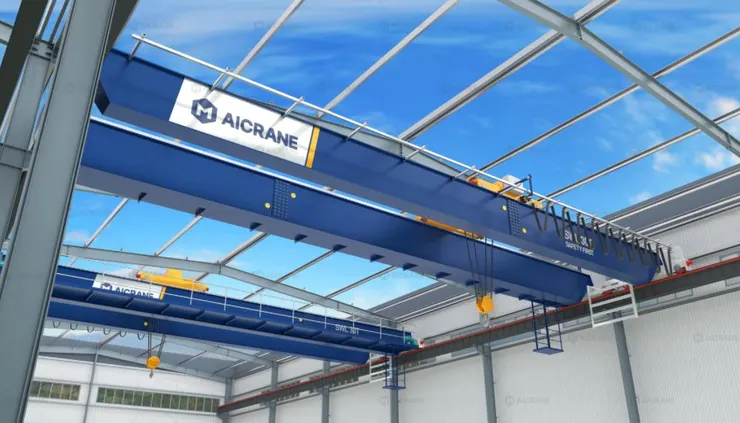

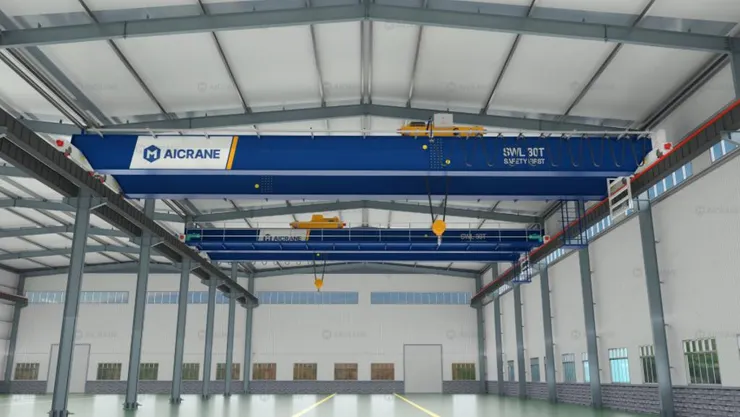

A steel mill operating a double girder 30 ton overhead crane experienced a power failure mid-operation. Thanks to fail-safe holding brakes on the hoist motor and a redundant power supply for control systems, the crane automatically stopped, holding the load safely in place. The operator was then able to manually lower the steel coil to the ground using the backup control pendant. This prevented potential damage and allowed operations to resume once power was restored, underscoring the real-world importance of robust fail-safe design.
Emerging Technologies in Fail-safe Crane Design
With Industry 4.0 and digitalization, fail-safe crane systems are evolving:
- Smart sensors provide real-time health monitoring of mechanical and electrical components.
- AI-powered diagnostics predict failures before they happen.
- Remote control and monitoring systems allow for off-site shutdowns or overrides in emergencies.
- Self-checking safety systems that conduct regular internal tests to ensure operational readiness.
These technologies enhance traditional fail-safe features and open new possibilities for predictive safety management.
Conclusion
Fail-safe design is not just an engineering preference—it is a fundamental requirement for modern overhead crane systems. By integrating redundant systems, mechanical and electrical safety devices, emergency controls, and compliance with recognized safety standards, manufacturers and operators can significantly reduce risks. The result is not only safer workplaces but also more reliable operations, lower downtime, and long-term cost savings.
Whether designing a new overhead crane or upgrading an existing one, incorporating fail-safe features should be a top priority. In an industry where failure can be catastrophic, designing for safety is designing for success.
