Gantry cranes are widely used in industries ranging from manufacturing to construction and logistics. Among the popular models, the 10-ton gantry crane strikes a balance between lifting power and flexibility. One of the most critical but often misunderstood aspects of crane operation is the distinction between static load capacity and dynamic load capacity. This distinction is essential not only for crane design engineers but also for operators and facility planners who aim to ensure safety and maximize crane efficiency.
In this article, we will dive into the meaning, significance, and differences between static and dynamic load capacities in 10 ton gantry cranes, and explore how they impact crane design, operation, safety, and performance.
Understanding Load Capacity Basics
Load capacity is the maximum weight a crane can safely lift under specific operating conditions. This capacity is not a fixed value in all scenarios but varies depending on multiple factors. For simplicity, load capacity is typically categorized into:
- Static Load Capacity
- Dynamic Load Capacity
These two categories serve different purposes in design and application.

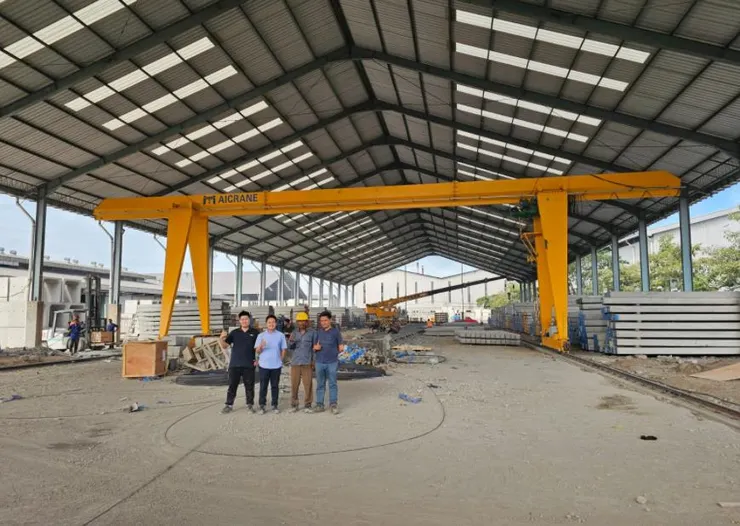

What Is Static Load Capacity?
Static load capacity refers to the maximum weight that a 10t single girder gantry crane can support when the load is not in motion. This means the crane is stationary, and the load is being held or suspended without any vertical or horizontal movement. It includes:
- The self-weight of the crane structure
- The vertical load of the lifted item
- Safety factors as defined by engineering codes
In simple terms, static capacity reflects the structural strength of the crane under non-dynamic conditions.
Example: If a 10-ton gantry crane is rated with a static load capacity of 10,000 kg, it can safely hold a stationary 10,000 kg load under controlled conditions without failure.

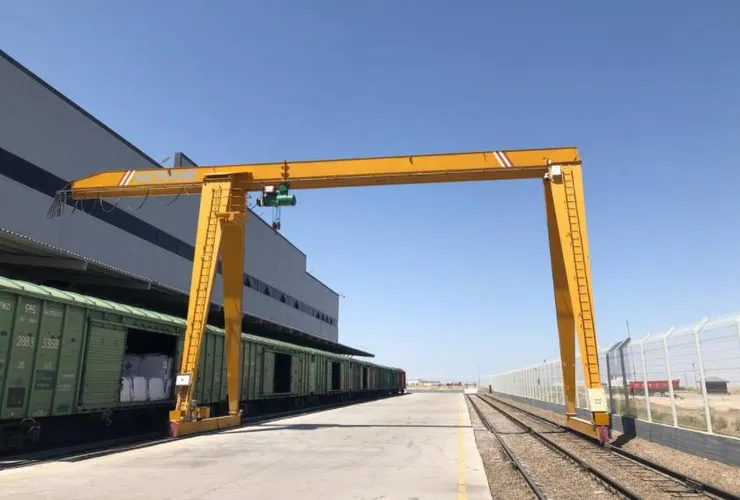

What Is Dynamic Load Capacity?
Dynamic load capacity, on the other hand, considers the additional forces that act on the crane during lifting, lowering, traveling, or other motions. These forces include:
- Acceleration and deceleration forces
- Swinging loads
- Load impact during lifting
- Wind or environmental forces
- Vibrations and structural deflections
Dynamic capacity reflects how the crane responds to motion and changing forces. It is typically lower than the static load capacity because the added stresses must be factored in for safety.
Example: A 10-ton gantry crane may have a dynamic load capacity of only 8.5 to 9 tons, depending on its speed, duty cycle, and application.
Why the Distinction Matters
Differentiating static and dynamic load capacities is vital for the following reasons:
1. Safety Assurance
Overloading a crane during dynamic movement increases the risk of structural damage, hoist failure, or tipping. Understanding dynamic capacity helps operators avoid these risks.
2. Accurate Engineering Design
Engineers use dynamic load data to design key crane components, such as girders, wheels, and hoists, to withstand transient forces over the crane’s lifecycle.
3. Proper Equipment Selection
Buyers can make informed decisions by considering both static and dynamic demands. A crane may technically support a 10-ton load statically but fail if used in fast-paced operations with high-speed movements.
4. Compliance with Standards
Organizations like FEM, ISO, and OSHA incorporate dynamic effects in load calculations. Compliance ensures reliability and legal safety.
Dynamic Load Factors in Design
To calculate dynamic effects, engineers use Dynamic Load Factors (DLFs) or Impact Factors. These are multipliers applied to the static load to estimate the equivalent dynamic forces.
Typical values:
- Hoisting with soft start: 1.1 to 1.25
- Hoisting with abrupt start/stop: 1.4 to 1.7
- Traveling with load swing: 1.5 to 2.0
So, for a 10-ton crane, the effective load during abrupt motion could be as high as:
10 tons × 1.5 = 15 tons of dynamic equivalent load
This emphasizes why dynamic design criteria are stricter.
Real-World Application: 10 Ton Gantry Crane Use Cases
Consider the following common applications for 10-ton gantry cranes:
1. Workshop Fabrication
Lifting machinery parts that are slowly raised and lowered. Here, static load capacity may dominate since motion is limited.
2. Precast Yard
Lifting concrete slabs with frequent movement and sudden stops. Dynamic capacity must be prioritized due to high load momentum and vibration.
3. Shipyard Maintenance
Outdoor use with exposure to wind. Dynamic capacity becomes critical, especially if the crane is also mobile and moves over uneven ground.
Each of these environments demands different assessments of static vs. dynamic forces.
Design Adjustments Based on Dynamic Loads
To accommodate dynamic loads, manufacturers incorporate specific design elements into 10-ton gantry cranes:
- Robust Wheel and Rail Systems: To handle side thrust and momentum
- Heavy-duty End Trucks and Girders: Designed for higher fatigue resistance
- Anti-sway Devices or VFD Controls: To reduce dynamic impact
- Structural Reinforcements: Such as stiffeners or bracing at stress points
These ensure the crane can operate safely below its maximum dynamic load capacity even during frequent motion.
Operator Considerations
Operators must be trained to:
- Avoid sudden lifting or lowering
- Prevent swinging loads during travel
- Use soft start/stop functions
- Stay within dynamic load limits, not just the nameplate capacity
Ignoring these principles could lead to structural fatigue or catastrophic failure.
Testing and Validation
Before commissioning a 10-ton gantry crane, manufacturers perform:
- Static Load Tests (typically at 125% of rated capacity)
- Dynamic Load Tests (typically at 110% of rated capacity during motion)
These tests validate both capacity types and ensure safety.
Conclusion
The distinction between static and dynamic load capacity is fundamental to the safe and efficient operation of any gantry crane, especially a commonly used 10-ton model. While static capacity reflects the crane’s ability to hold weight in a stationary state, dynamic capacity takes into account real-world movement, shock, vibration, and other forces encountered during lifting operations.
Design engineers must account for dynamic loads during structural analysis, while crane operators must ensure that operational practices do not exceed the equipment’s dynamic limits. When both design and operation align with these principles, the result is a safer, more reliable gantry crane system.
