Gantry cranes are vital lifting equipment used in many industries for moving heavy loads efficiently and safely. Among the wide range of gantry cranes, the 20 ton gantry crane is a popular choice for medium-duty lifting tasks across manufacturing plants, warehouses, construction sites, and more. However, to fully utilize this equipment safely and effectively, it’s essential to understand the technical meaning behind its 20 ton capacity - what it represents, how it is determined, and how it impacts daily operations.
In this article, we will explore the technical aspects of 20 ton gantry crane capacity, breaking down the engineering principles, safety considerations, operational factors, and best practices for selection and use.
What Does 20 Ton Gantry Crane Capacity Mean?
The capacity of a gantry crane refers to the maximum weight it is designed to lift safely under specific conditions. For a 20 ton gantry crane, this means the crane is engineered and rated to lift loads up to 20 tons (20,000 kilograms) without risking structural damage or unsafe working conditions.
This rating is established based on engineering design principles, material strength, and safety standards. It is essential to note that the 20 ton figure is a maximum safe working load (SWL) or rated load, not the weight the crane can lift beyond this point.
Engineering Basis of 20 Ton Capacity
Structural Design Considerations
The crane’s structural components - including girders, legs, trolley mechanisms, wheels, and the hoist system - are all designed to handle loads up to 20 tons with a margin of safety.
- Main Girder and Supporting Framework: The main girder must support the weight of the load plus the self-weight of the crane and trolley. It resists bending and shear forces caused by the suspended load.
- Legs and Base: The vertical supports must transfer the combined load to the ground or runway rails while maintaining stability.
- Hoisting Mechanism: The hoist, rope, and hook must be capable of lifting and holding 20 tons safely.
- Wheels and Rails: The wheels carry the entire weight over the runway, requiring sufficient strength and proper distribution to prevent deformation or rail damage.
Safety Factors
Engineering codes require applying safety factors - often between 1.25 to 1.5 times the rated capacity - to account for unexpected stresses, material imperfections, dynamic effects, and wear over time.
This means while the crane is rated for 20 tons, it is structurally tested and built to handle more than 25 to 30 tons momentarily during testing.
Load Testing and Certification
Before commissioning, the crane undergoes proof load testing by lifting loads exceeding the rated capacity, commonly 125% of the rated load (i.e., 25 tons for a 20 ton crane). This confirms structural integrity and performance.
Factors Affecting the Effective Capacity
Although the crane is rated at 20 tons, actual safe lifting capacity can be influenced by various operational and environmental factors:
Load Center Distance
The capacity is based on the load being lifted directly under the hook’s vertical axis. If the load’s center of gravity is offset or if the load is long and unbalanced, the effective capacity decreases due to additional moments and stresses on the crane structure.
Lifting Height
Increasing the lifting height can alter the crane’s stability and may reduce the capacity in some designs, especially portable or semi gantry cranes.
Environmental Conditions
Factors such as wind, rain, temperature extremes, and ground unevenness affect the crane’s stability and performance. For instance, strong winds can cause swinging loads, increasing dynamic forces beyond the static rated capacity.
Duty Cycle and Usage Frequency
Frequent or continuous lifting may necessitate a reduction in load capacity to avoid overheating the hoist motor or excessive wear on mechanical components.
Types of 20 Ton Gantry Cranes and Capacity Implications
There are several types of gantry cranes with 20 ton capacity, and their designs impact how the capacity is applied.

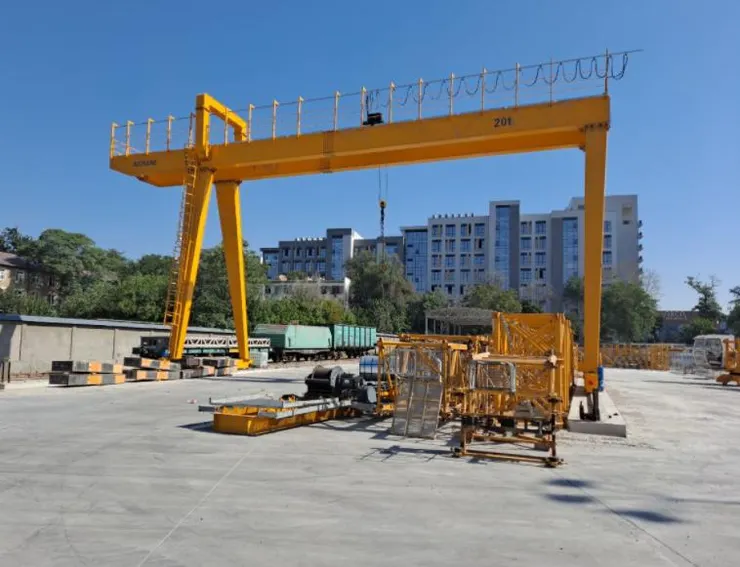

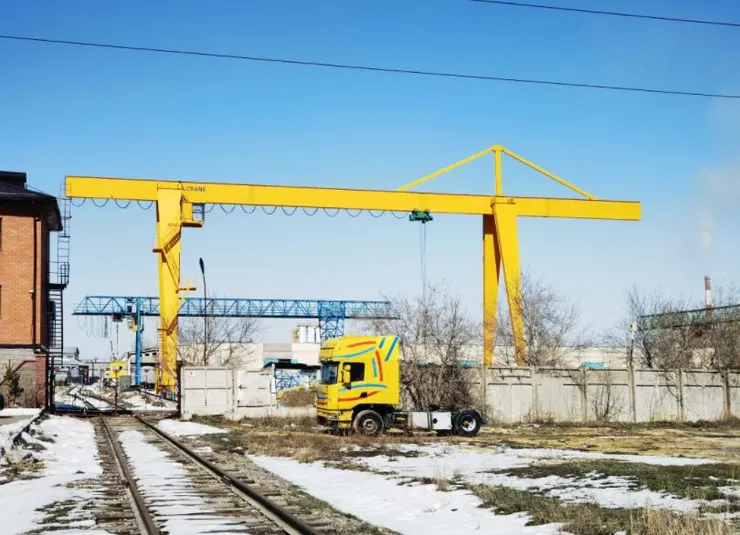

Single Girder 20 Ton Gantry Crane
Single girder cranes generally have lighter structural elements and are common for lower to medium loads. A 20 ton capacity is achievable but less common, as double girder cranes provide better load distribution and higher stability for this weight.
Double Girder 20 Ton Gantry Crane
The most popular choice for 20 ton capacity due to superior structural strength and rigidity. The double girder design allows higher lifting height and longer spans, making it versatile for various industrial applications.
Semi-Gantry Crane
One side of the crane runs on rails or beams, while the other side has legs on the ground. The capacity can be 20 tons, but the support configuration affects how the load is transferred and the effective capacity.
Portable Gantry Crane
Typically used for flexible applications and smaller loads, but custom portable gantry cranes can reach 20 ton capacity. The mobility feature requires design considerations that may affect capacity under different ground conditions.
Calculating Load Capacity: Key Technical Concepts
Rated Load vs. Actual Load
- Rated Load: Manufacturer’s certified maximum safe load (20 tons).
- Actual Load: Weight of the load plus rigging equipment (slings, shackles, hooks).
Always calculate the total rigged load to ensure it does not exceed the rated 20 ton capacity.
Dynamic Load and Impact Factors
Loads are rarely static. Sudden acceleration, stopping, or load swinging can create dynamic forces that exceed static weight, impacting the crane’s components.
Design standards include these dynamic effects, but operators must avoid sudden motions or jerks.
Load Charts and Load Radius
Load charts provide information about how the crane capacity changes with the position of the trolley and boom angle (if applicable). For gantry cranes, the trolley position on the girder can influence the load distribution and capacity.
Importance of Proper Capacity Utilization
Safety Considerations
Operating a crane beyond its 20 ton capacity risks catastrophic failure, endangering personnel and equipment.
Efficiency
Using a crane properly matched to your load requirements maximizes productivity and minimizes wear and maintenance costs.
Cost Implications
Choosing a crane with a capacity far exceeding your needs can increase capital expenditure unnecessarily. Conversely, selecting a crane with insufficient capacity risks operational delays and accidents.
Maintenance and Capacity Retention
To ensure that the gantry crane maintains its rated 20 ton capacity throughout its lifespan, regular maintenance and inspections are mandatory:
- Structural Inspections: Look for cracks, deformations, corrosion, and wear.
- Hoist and Rope Checks: Ensure wire ropes, hooks, and pulleys are in good condition.
- Load Testing: Conduct periodic load tests to verify the crane’s lifting ability.
- Lubrication and Component Replacement: Maintain moving parts for smooth operation.
Proper maintenance prevents degradation of capacity and improves safety.
Choosing the Right 20 Ton Gantry Crane
When selecting a 20 ton gantry crane, consider:
- Span: Distance between legs affects stability and coverage area.
- Lifting Height: Maximum height the load needs to be lifted.
- Work Environment: Indoor, outdoor, corrosive, or dusty environments require different materials and coatings.
- Mobility: Fixed, semi-gantry, portable - depends on site flexibility needs.
- Control System: Manual pendant, remote, or cabin operation.
- Duty Cycle: Frequency and intensity of crane use.
Consulting with experienced manufacturers and engineers ensures the crane is tailored to your specific operational needs.
Conclusion
The 20 ton gantry crane capacity is a fundamental technical specification that defines the maximum safe working load the crane is designed to handle. This capacity is the result of meticulous engineering design, strict safety factors, and rigorous testing to ensure reliable and safe operation.
Understanding the technical meaning of this capacity enables operators and buyers to make informed decisions, match the crane to the application, and operate it safely within limits. Factors such as load geometry, environmental conditions, duty cycle, and proper maintenance all influence the crane’s effective capacity.
By selecting the right 20 ton gantry crane configuration and adhering to safety and maintenance protocols, businesses can achieve efficient, safe, and cost-effective material handling solutions for medium-duty lifting tasks.
