Wire Rope vs Chain Hoist for Single Girder Overhead Cranes

Single girder overhead cranes are a popular choice for industrial lifting and material handling applications. They are widely used in workshops, factories, warehouses, and other industrial environments due to their versatility, cost-effectiveness, and relatively simple design. A key component of these cranes is the hoisting mechanism, which determines the efficiency, safety, and suitability of the crane for specific lifting tasks. Among the most common hoisting mechanisms are wire rope hoists and chain hoists. While both serve the same fundamental purpose—lifting and lowering heavy loads—they have distinct characteristics that influence their performance, application, and cost. This article explores the differences between wire rope and chain hoists in the context of single girder overhead cranes, helping users make informed decisions.

Understanding Single Girder Overhead Cranes

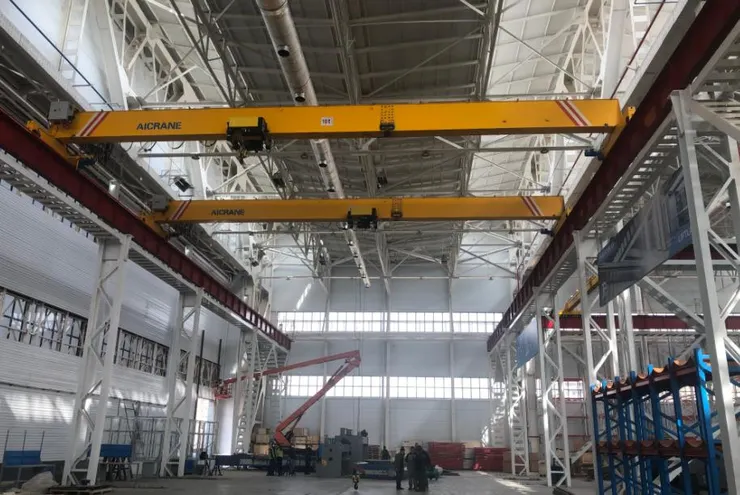

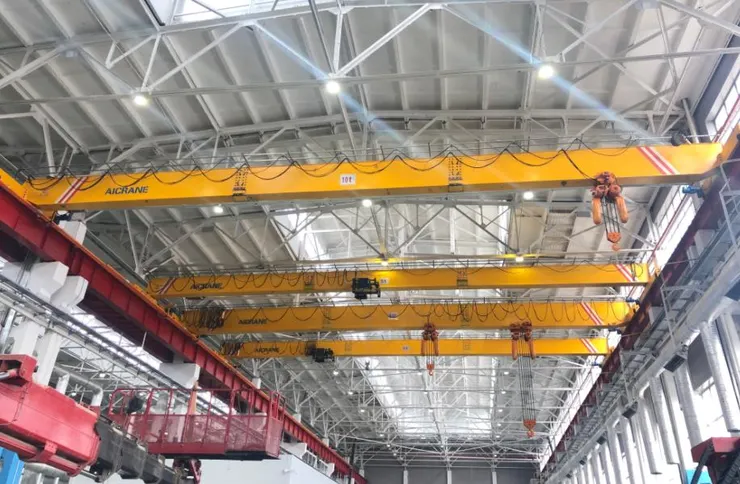

Before delving into the differences between wire rope and chain hoists, it is essential to understand the basic structure of a single girder overhead crane. A single girder crane consists of one main girder supported by end trucks that move along runway beams. The hoist is mounted on a trolley, which travels along the girder to position the load accurately. Single girder cranes are typically used for lighter lifting tasks compared to double girder cranes, with capacities ranging from 1 ton to 50 tons. The choice of hoist directly affects the crane’s load capacity, lifting height, speed, and maintenance requirements.

Wire Rope Hoists

Structure and Working Principle

Wire rope hoists utilize a steel wire rope wound around a drum to lift loads. The drum is powered by an electric motor, which turns gears to rotate the drum and raise or lower the load. Wire rope hoists are often used with heavy-duty cranes due to their high lifting capacity and long service life.

Advantages of Wire Rope Hoists

1. High Lifting Capacity: Wire rope hoists can handle heavier loads, making them suitable for industrial applications where lifting capacities exceed 10 tons. They are commonly used in steel mills, shipyards, and large factories.
2. Faster Lifting Speeds: The drum mechanism allows for faster lifting speeds compared to chain hoists, which increases productivity in operations requiring frequent lifting and lowering of materials.
3. Longer Lifting Heights: Wire rope hoists are capable of lifting loads to greater heights. The rope can be spooled multiple times on the drum, making them suitable for facilities with high ceilings or tall storage racks.
4. Durability: Wire ropes are resistant to wear and tear, especially when properly maintained. They can withstand harsh environments, including outdoor conditions, and are less prone to stretching under heavy loads.
5. Smooth Operation: Wire rope hoists typically provide smoother and more controlled lifting, which is crucial for handling delicate or expensive materials.

Limitations of Wire Rope Hoists

1. Higher Initial Cost: Wire rope hoists are generally more expensive than chain hoists, especially for smaller lifting capacities. The cost includes not only the hoist but also the trolley and mounting requirements.
2. Maintenance Requirements: Wire rope hoists require regular maintenance, including lubrication of the wire rope, drum inspection, and replacement of worn ropes. Neglecting maintenance can lead to safety hazards.
3. Complex Installation: Installation can be more complex, as it may require precise alignment of the drum, rope, and trolley. Additionally, wire rope hoists often need sufficient space to accommodate the drum’s size.

Chain Hoists

Structure and Working Principle

Chain hoists use a looped lifting chain that passes through a system of gears to lift or lower a load. The chain is either manually operated, electrically powered, or pneumatically driven. In single girder cranes, electric chain hoists are the most common, providing a reliable and compact solution for medium-duty lifting tasks.

Advantages of Chain Hoists

1. Compact Design: Chain hoists are smaller and lighter than wire rope hoists, making them ideal for limited space applications. Their compact size allows easier integration with trolleys on single girder cranes.
2. Lower Initial Cost: Chain hoists are generally more affordable than wire rope hoists, which makes them an attractive option for small and medium-sized facilities.
3. Ease of Maintenance: Chain hoists require less maintenance compared to wire rope hoists. The chain can be lubricated periodically, and replacement is relatively simple and inexpensive.
4. Durability in Short Lifts: For applications requiring shorter lifting heights and frequent operation, chain hoists are highly durable and less prone to problems caused by rope stretch or drum misalignment.
5. Flexibility: Chain hoists can easily be adapted for different capacities by adjusting the chain length and hoist configuration. This adaptability is useful for facilities with varying lifting requirements.

Limitations of Chain Hoists

1. Lower Lifting Capacity: Chain hoists are typically limited to lifting capacities below 20 tons. For heavy-duty industrial applications, they may not be suitable.
2. Slower Lifting Speeds: The gear mechanism used in chain hoists generally results in slower lifting speeds compared to wire rope hoists, which can reduce efficiency in high-volume operations.
3. Limited Lifting Height: Chain hoists are more suitable for low to medium lifting heights. Extremely tall lifting requirements may necessitate long chain lengths, which can affect operational efficiency and safety.
4. Chain Wear: Chains are subject to wear and elongation over time, which requires periodic inspection and replacement. Improper use or overloading can accelerate wear, posing safety risks.

Choosing the Right Hoist for Your Single Girder Crane

The choice between a wire rope hoist and a chain hoist depends on multiple factors, including load capacity, lifting height, operational speed, budget, and maintenance capabilities. Here are some guidelines for selecting the right hoist:

1. Load Capacity Requirements: For lifting loads above 10–20 tons, a wire rope hoist is generally the better choice due to its higher strength and durability. Chain hoists are ideal for lighter loads under 10–15 tons.
2. Lifting Height: If your facility requires lifting to high levels, wire rope hoists are more suitable because they can accommodate longer ropes without compromising safety or efficiency.
3. Operational Speed: In operations where time is critical and fast lifting and lowering are necessary, wire rope hoists offer better performance.
4. Space Constraints: If your single girder eot crane operates in a facility with limited overhead clearance or narrow aisles, a compact chain hoist may be more practical.
5. Budget Considerations: For facilities with tight budgets, chain hoists provide a cost-effective solution, especially for small and medium-sized loads.
6. Maintenance Capabilities: Consider the maintenance resources available. Wire rope hoists require more intensive maintenance, while chain hoists are relatively easier to maintain.
7. Application Environment: For harsh environments, such as outdoor operations with exposure to dust, moisture, or chemicals, wire rope hoists with protective coatings or stainless steel options may be preferable. Chain hoists are more suited to controlled indoor environments.

Conclusion

Both wire rope and chain hoists have their strengths and limitations, and understanding these differences is crucial for optimizing the performance of a single girder overhead crane. Wire rope hoists excel in heavy-duty, high-speed, and high-lifting applications, offering durability and smooth operation, though at a higher cost and maintenance demand. Chain hoists, on the other hand, are compact, cost-effective, and ideal for medium-duty lifting tasks with lower lifting heights, making them suitable for workshops, small factories, and warehouses.

Ultimately, the choice between a wire rope hoist and a chain hoist should be based on a careful evaluation of your lifting requirements, facility constraints, budget, and operational priorities. By selecting the appropriate hoist, businesses can ensure efficient, safe, and long-lasting crane operations, maximizing productivity while minimizing operational costs.
