A 20-ton gantry crane is a powerful and versatile lifting solution widely used in factories, warehouses, shipyards, and construction sites. Its ability to move heavy loads safely and efficiently makes it an essential piece of equipment in various industries. However, installing a gantry crane, especially one with a 20-ton capacity, is not a trivial task. Many businesses ask: “How long does 20-ton gantry crane installation typically take?” The answer depends on a range of factors, including crane type, site conditions, preparation, labor experience, and the installation method. This article will explore the timeline, steps, and considerations to provide a realistic expectation for installation duration.

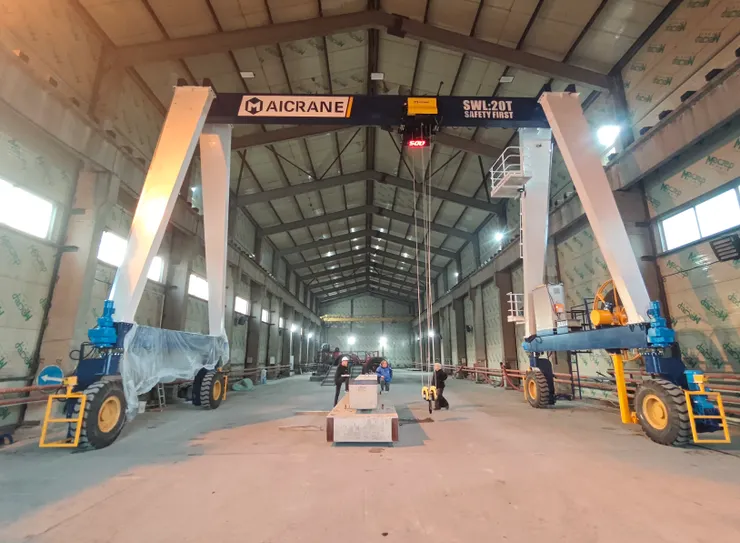

Understanding Gantry Crane Installation
Before estimating the timeline, it’s important to understand what gantry crane installation involves. A gantry crane 20 ton, unlike a simple hoist or trolley, consists of several major components:
- Main Girder/Bridge – The horizontal beam supporting the trolley and lifting mechanism.
- End Trucks/Legs – Vertical supports that allow the crane to move along the ground.
- Trolley and Hoist System – The moving platform and lifting device that handle the load.
- Control System – Electrical wiring, control panels, and remote or pendant operation setup.
- Safety Systems – Limit switches, overload protection, anti-collision devices, and grounding.
Installation requires precise assembly of these components to ensure safety, operational efficiency, and compliance with local regulations.
Typical Installation Phases
The installation of a 20-ton gantry crane generally occurs in several phases, each contributing to the total timeline:
1. Site Preparation
Before any assembly begins, the site must be prepared. This phase includes:
- Leveling and Ground Reinforcement: Gantry cranes exert significant pressure on the ground. A 20-ton crane can generate wheel loads of 5–8 tons per wheel. The ground or floor must be level, stable, and able to bear this load.
- Utility Check: Ensure sufficient electrical power is available for the crane’s motor, lighting, and control systems.
- Obstacle Removal: Clear the installation area of obstructions and debris to allow unhindered movement of components and lifting equipment.
Typical Duration: 1–3 days, depending on site complexity.
2. Component Delivery and Inspection
Once the site is ready, crane components are delivered. For a 20-ton gantry crane, these may include bridge girders, end trucks, hoist, trolley, and control equipment. Inspecting each component is critical to ensure:
- No damage occurred during transit.
- All parts match the specifications.
- Required tools and equipment for assembly are available.
Typical Duration: 1 day.

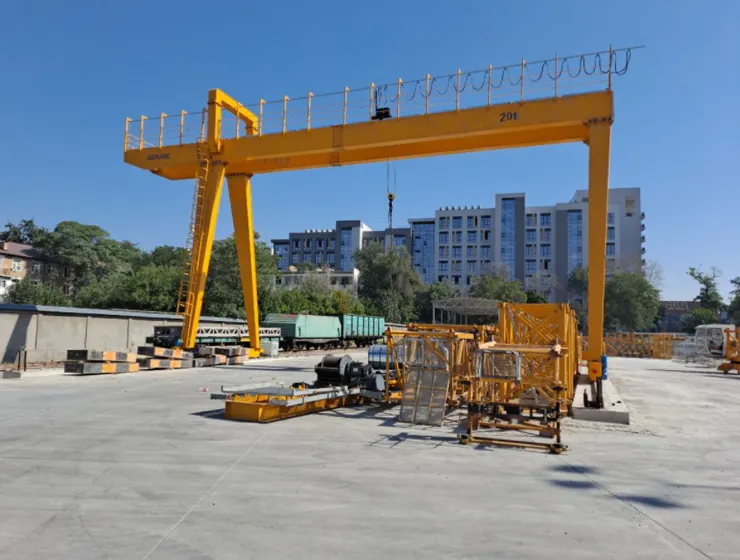

3. Structural Assembly
The structural assembly involves erecting the main frame of the gantry crane:
- Leg Installation: Vertical end trucks or legs are positioned and secured.
- Bridge/Girder Placement: The main girder is lifted and fixed atop the legs.
- Bolting and Welding: Depending on the crane design, bolting or welding may be required for stability.
- Alignment: The structure must be perfectly aligned to ensure smooth operation and prevent uneven wear.
Typical Duration: 2–5 days. Factors such as crane size, site space, and the use of lifting equipment can influence this phase.
4. Hoist and Trolley Installation
After the structure is complete, the lifting components are installed:
- Hoist Mounting: The hoist is attached to the trolley or directly to the bridge, depending on the design.
- Trolley Setup: The trolley is fixed to the bridge and tested for smooth movement.
- Wire Rope or Chain Installation: The lifting mechanism is connected with the appropriate cables, chains, or hooks.
- Lubrication and Adjustment: Proper lubrication and adjustment ensure reliable operation.
Typical Duration: 1–2 days.
5. Electrical and Control System Installation
Modern gantry cranes rely on electrical systems for safe and efficient operation:
- Power Supply Connection: Electrical lines are connected to motors and control panels.
- Control Setup: Pendant control, remote control, or cabin installation is completed.
- Safety System Integration: Overload protection, limit switches, and emergency stops are wired and tested.
- Grounding and Inspections: Proper grounding is crucial to prevent electrical hazards.
Typical Duration: 1–2 days.
6. Testing and Commissioning
Once assembly is complete, the crane undergoes rigorous testing:
- No-load Test: The crane is operated without a load to check movement, alignment, and control response.
- Load Test: The crane is tested with a load (often 125–150% of its rated capacity) to verify stability and safety.
- Safety Checks: Emergency brakes, limit switches, and overload protection devices are inspected and adjusted.
- Operator Training: On-site personnel are trained to operate the crane safely.
Typical Duration: 1–3 days. Load testing may require coordination with local authorities depending on regulations.
Factors Influencing Installation Time
While the above phases provide a standard framework, the actual installation time can vary. Here are key influencing factors:
1. Crane Type
- Single Girder vs. Double Girder: Single girder cranes are simpler and generally faster to install, often 1–2 days shorter than double girder gantry cranes.
- Fixed vs. Mobile Gantry: Mobile cranes may require less foundation work but more alignment during movement testing.
2. Site Conditions
- Ground Bearing Capacity: If the site requires reinforcement, this can extend installation time.
- Obstacles and Space Constraints: Limited space or nearby structures can slow assembly and require special lifting arrangements.
3. Labor Experience
Experienced technicians can assemble, wire, and test a 20-ton gantry crane much faster than inexperienced personnel. Manufacturers often offer on-site or online guidance to improve efficiency.
4. Weather Conditions
Outdoor installations are affected by weather. Rain, strong winds, or extreme temperatures can delay lifting operations and assembly.
5. Regulatory Inspections
In some countries, cranes require inspection by local authorities before commissioning. Scheduling these inspections can add 1–2 days or more to the installation timeline.
Average Installation Timeline
Considering all installation phases and influencing factors, the typical timeline for a 20-ton gantry crane usually falls between 7 and 16 days under standard conditions. The installation begins with site preparation, which may take 1 to 3 days, depending on the level of ground reinforcement, utility readiness, and clearance of obstacles. Component delivery and inspection generally take around 1 day, ensuring that all parts meet specifications and are undamaged.
Structural assembly, which includes erecting the legs, placing and securing the main girder, and performing alignment checks, often takes 2 to 5 days, influenced by the crane type and site space. Installing the hoist and trolley, connecting wire ropes or chains, and performing lubrication and adjustment usually requires 1 to 2 days. Electrical wiring, control system setup, grounding, and safety system integration generally take another 1 to 2 days.
Finally, testing and commissioning—including no-load and load tests, safety checks, and operator training—can require 1 to 3 days. More complex sites or additional regulatory inspections may extend the total timeline, in some cases up to 3–4 weeks.
Tips to Speed Up Installation
- Pre-assembly Planning: Review site layout, crane specifications, and component lists before delivery.
- Site Preparation in Advance: Ensure level, stable ground, and ready utilities.
- Use Experienced Installers: Certified technicians familiar with 20-ton gantry cranes reduce errors and delays.
- Coordinate Deliveries: Schedule component arrival sequentially to avoid on-site storage issues.
- Adopt Manufacturer Support: Many crane manufacturers offer online or on-site guidance, which can streamline installation and reduce downtime.
Conclusion
Installing a 20-ton gantry crane is a structured process that requires careful planning, precise assembly, and thorough testing. On average, the installation can take 7–16 days, although site complexity, crane type, labor experience, and regulatory requirements can lengthen the timeline. Understanding the installation phases—from site preparation to final commissioning—allows businesses to plan effectively and ensure the crane operates safely and efficiently from day one.
Proper preparation, coordination with the manufacturer, and adherence to safety protocols not only reduce installation time but also extend the operational lifespan of the gantry crane, ensuring a solid return on investment.
