In the modern construction of bridges, precast concrete segments play a critical role in achieving high efficiency, uniform quality, and structural reliability. Precasting bridge segments in controlled environments allows construction teams to produce complex components with precise dimensions and superior durability. However, handling these massive elements—often weighing tens of tons—presents a significant logistical and safety challenge. This is where straddle carriers come into play, offering a safe, efficient, and flexible solution for lifting, transporting, and positioning large precast bridge segments.
Understanding Straddle Carriers

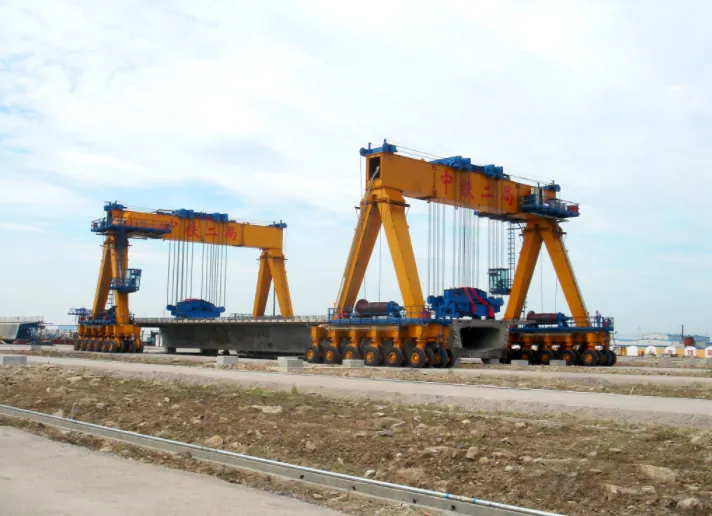

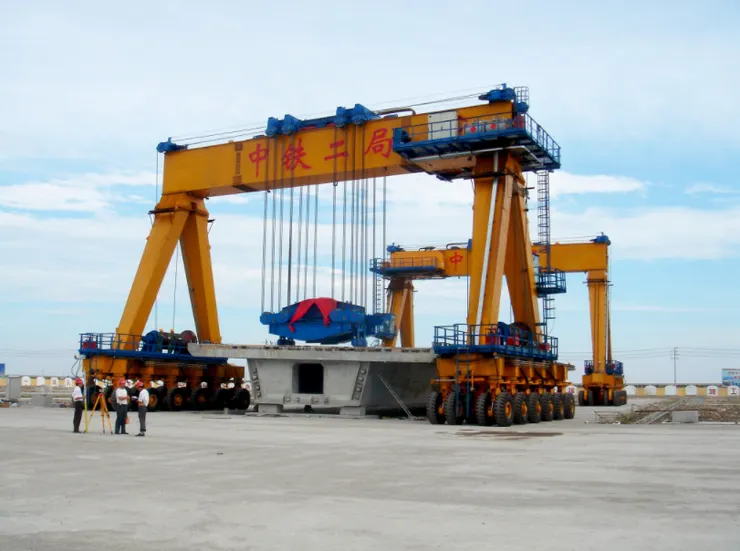

A straddle carrier is a type of mobile lifting equipment designed to lift heavy and bulky loads using a framework that straddles the load. Unlike conventional cranes that lift from above, straddle carrier cranes lift from underneath, allowing them to handle extremely large precast segments with stability and precision. They are particularly advantageous for precast bridge construction due to their mobility, adaptability to different segment sizes, and ability to operate in confined areas.
Straddle carriers are typically equipped with hydraulic lifting mechanisms, spreader bars, and adjustable lifting arms. These components allow operators to secure the load evenly, minimizing the risk of tipping or uneven stress distribution on the concrete segments.
Advantages of Using Straddle Carriers for Precast Bridge Segments
Enhanced Safety
Safety is paramount when handling large concrete segments. Straddle carriers reduce the reliance on human labor for lifting and positioning, minimizing the risk of accidents associated with manual rigging. By using hydraulics and stable lifting frames, the load is distributed evenly, reducing the likelihood of cracking or structural damage during transport. Additionally, most modern straddle carriers come with sensors and load monitoring systems that provide real-time feedback to operators, further enhancing operational safety.
Efficient Handling and Transportation
Precast bridge segments are often produced at a casting yard and then transported to the construction site. Straddle carriers allow for direct lifting from the casting bed, through storage areas, and onto transport vehicles without the need for intermediate cranes or forklifts. This reduces cycle times and increases the overall efficiency of precast operations. Their mobility allows them to maneuver within confined spaces and navigate complex construction layouts, making them ideal for bridge projects in urban or challenging terrains.
Reduced Stress on Segments
Large bridge segments are prone to damage if lifted unevenly or handled incorrectly. Straddle carriers lift from multiple points, typically at the segment’s designed lifting inserts, ensuring uniform stress distribution. This reduces the risk of cracks, chipping, or structural deformation. By minimizing mechanical stress during handling, straddle carriers help preserve the structural integrity of the precast segments, which is critical for bridge safety and longevity.
Flexibility for Different Segment Sizes
Bridge segments vary in size depending on the span, design, and load requirements. Straddle carriers can be equipped with adjustable lifting frames or telescopic arms to accommodate different segment dimensions. This flexibility allows construction teams to use a single piece of equipment for multiple types of segments, reducing the need for specialized lifting devices and streamlining site logistics.
Key Safety Considerations When Using Straddle Carriers
While straddle carriers offer numerous benefits, operating them safely requires strict adherence to safety protocols and engineering principles. Key considerations include:
Load Assessment
Before lifting, the weight, dimensions, and center of gravity of each segment must be accurately determined. Overloading a straddle carrier or misaligning the lifting points can lead to instability and potential accidents. Engineers and operators should review lifting plans and ensure that the carrier’s rated capacity exceeds the segment’s weight with an adequate safety margin.
Proper Attachment
Bridge segments are designed with lifting points such as embedded steel inserts or lifting anchors. Operators must attach the straddle carrier’s lifting mechanism precisely to these points. Misalignment or improper attachment can cause uneven stress distribution, risking segment damage or tipping during lifting.
Ground Conditions and Stability
Straddle carriers require stable ground to operate safely. Uneven surfaces, soft soil, or slopes can compromise stability, especially when handling heavy segments. Construction sites should have prepared, reinforced paths or pads that can support the combined weight of the carrier and the precast segment.
Operator Training and Certification
Handling large precast bridge segments demands skilled operators. Proper training ensures that operators understand load dynamics, maneuvering techniques, and emergency procedures. Many construction projects require operators to be certified in heavy equipment operation and safety standards.
Maintenance and Inspection
Regular inspection and maintenance of straddle carriers are critical for safety. Hydraulic systems, lifting arms, tires, brakes, and load sensors must be checked frequently to prevent mechanical failures. Preventive maintenance reduces downtime and mitigates the risk of accidents caused by equipment malfunction.
Integrating Straddle Carriers Into Precast Bridge Construction
Straddle carriers are most effective when integrated into a well-planned precast bridge construction workflow. Typical integration steps include:
Casting Yard Operations
Straddle carriers pick up freshly cast segments directly from the curing beds, lifting them gently to prevent stress concentration. They transport segments to temporary storage areas, arranging them for sequential delivery to the construction site.
Transport and Loading
For bridge projects requiring off-site fabrication, straddle carriers load segments onto trucks or trailers. They can also position segments onto rail or barge transport when moving large segments to remote sites.
Site Placement
At the construction site, straddle carriers lift segments from transport vehicles and position them on temporary supports or permanent bearings. Their precise maneuvering capabilities allow operators to align segments accurately for subsequent post-tensioning or joining operations.
Coordination With Other Equipment
Straddle carriers often work in tandem with rubber tyred cranes, gantries, or temporary supports for final installation. Effective coordination ensures smooth workflow, reduces idle time, and maximizes overall project efficiency.
Case Studies of Successful Straddle Carrier Use
Many modern bridge projects worldwide have demonstrated the effectiveness of straddle carriers in lifting large precast segments. For instance, in complex highway bridge projects in urban areas, straddle carriers have enabled rapid handling of 50- to 100-ton segments, minimizing traffic disruption and maintaining high safety standards. In marine bridge construction, straddle carriers have successfully maneuvered long segments in tight quayside conditions, showcasing their adaptability in diverse environments.
Conclusion
Handling large precast bridge segments is a demanding task that requires careful planning, precise equipment, and skilled operators. Straddle carriers provide a safe, efficient, and flexible solution for lifting and transporting these massive elements. By minimizing stress on the segments, improving safety, and enhancing operational efficiency, straddle carriers have become indispensable in modern bridge construction projects. For engineers and construction managers, integrating straddle carriers into precast workflows not only accelerates project timelines but also safeguards structural quality and ensures worker safety.
