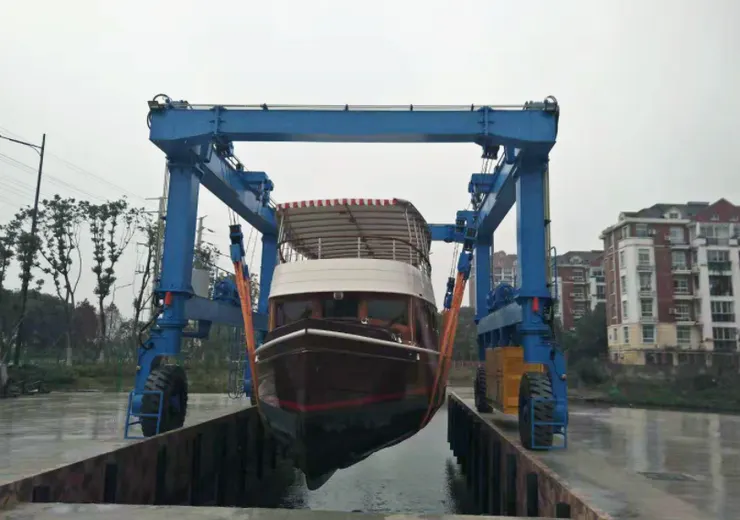

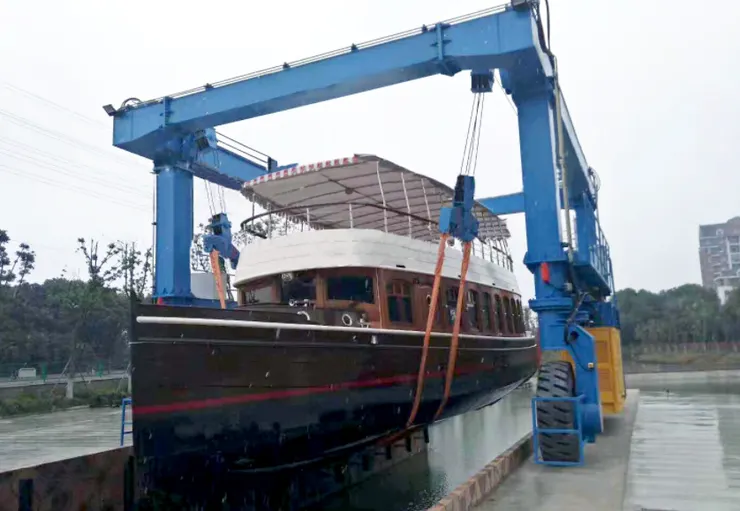

A 35 ton travel lift is a highly specialized marine lifting machine widely used in shipyards, marinas, and boat maintenance facilities. It is designed to lift, transport, and launch medium-to-large vessels safely out of the water and onto dry land for inspection, repair, or storage. While its structural frame and hoisting capacity are critical, the control system is what ultimately determines how safe, precise, and efficient the equipment operates.
Modern 35 ton travel lifts are no longer simple mechanical machines. They are integrated electro-hydraulic systems with advanced electronic controls, synchronization technology, and safety monitoring features. This article explains the key control system features that define modern 35 ton travel lifts and why they matter in real-world marine operations.
1. Centralized Control System Architecture
At the core of a 35 ton travel lift is a centralized control system, typically housed in an operator cabin or control console. This system coordinates all major machine movements, including:
- Hoisting (lifting and lowering)
- Traveling (forward and reverse movement)
- Steering (multi-wheel directional control)
- Load balancing between lifting points
The centralized design ensures that operators can manage all functions from a single interface, reducing operational complexity and minimizing human error.
Most modern systems use PLC (Programmable Logic Controller) technology, which allows precise automation logic and real-time decision-making.
2. PLC-Based Intelligent Control
The PLC control system is the brain of the travel lift. It continuously processes input from sensors and sends commands to hydraulic valves, motors, and braking systems.
Key advantages include:
- Synchronized lifting of multiple hoist points
- Automatic load distribution control
- Fault detection and alarm triggering
- Customizable lifting programs for different vessel types
For example, if one side of the lift begins to carry more load than the other, the PLC automatically adjusts hydraulic pressure to rebalance the system. This prevents hull deformation and ensures safe lifting of sensitive vessels.
3. Wireless Remote Control Operation
Many modern 35 ton travel lifts are equipped with wireless remote control systems, allowing operators to control the machine from outside the cabin.
This feature provides several benefits:
- Improved visibility during vessel positioning
- Reduced blind spots
- Enhanced safety during docking and lifting
- Flexible operation from different vantage points
Wireless remotes typically include joystick controls, emergency stop buttons, and digital displays showing load status and system alerts.
4. Hydraulic Synchronization Control System
One of the most important control features in a travel lift for sale is the hydraulic synchronization system. Since the lift uses multiple hoists (often 8 or more wheels), maintaining even lifting speed is essential.
The system ensures:
- All lifting cylinders move at the same speed
- Equal pressure distribution across hydraulic lines
- Real-time adjustment for uneven loads
Without synchronization control, a vessel could tilt during lifting, leading to structural damage or even catastrophic failure.
Advanced systems use proportional valves and electronic feedback sensors to maintain millimeter-level lifting precision.
5. Steering and Multi-Wheel Control System
A 35 ton travel lift must maneuver in tight marina environments. Therefore, the control system includes a multi-mode steering system, often controlled electronically.
Common steering modes include:
- Straight-line steering
- 90-degree right-angle steering
- Crab steering (sideways movement)
- Coordinated multi-axle steering
The operator can switch steering modes through the control panel or remote interface. The PLC ensures all wheels align correctly, preventing tire wear and improving maneuverability in confined spaces.
6. Load Monitoring and Overload Protection
Safety is a core function of the control system. A 35 ton travel lift is equipped with load monitoring sensors that continuously measure weight distribution across lifting points.
Key features include:
- Real-time load display on control screen
- Automatic overload alarm
- Lifting cut-off when safe limits are exceeded
- Uneven load warning system
If the system detects that the load exceeds 35 tons or becomes unbalanced beyond safe thresholds, it will immediately stop hoisting operations and alert the operator.
This feature is essential in preventing structural damage to both the vessel and the equipment.
7. Emergency Stop and Safety Interlock System
Emergency safety functions are integrated directly into the control system. A dual-layer safety interlock system ensures the machine can be stopped instantly in dangerous situations.
These include:
- Emergency stop buttons on cabin and remote control
- Automatic braking when system failure is detected
- Hydraulic lock valves to hold load in position
- Anti-slip protection during travel movement
In modern designs, safety interlocks prevent movement unless all systems are confirmed operational. For example, if hydraulic pressure is unstable, the system will not allow lifting to begin.
8. Anti-Sway and Load Stabilization Control
Although travel lifts operate at relatively low speeds compared to cranes, load swing can still occur, especially in windy marine environments.
The anti-sway control system helps reduce movement of suspended vessels by:
- Gradually accelerating and decelerating hoist motors
- Adjusting hydraulic flow rates dynamically
- Maintaining synchronized lifting speed across all points
Some advanced systems even incorporate feedback algorithms that automatically dampen oscillations in real time.
This ensures smooth handling of boats with minimal stress on hull structures.
9. Human-Machine Interface (HMI) Display System
Modern 35 ton travel lifts are equipped with digital HMI touch screens that provide real-time operational data.
Operators can monitor:
- Load weight per hoist point
- Total lifted weight
- Hydraulic pressure levels
- Steering mode status
- Travel speed
- System diagnostics
The HMI also provides multilingual support, alarm history logs, and maintenance reminders. This improves usability and reduces training time for operators.
10. Fault Diagnosis and Predictive Maintenance System
One of the most advanced features in modern control systems is self-diagnostic capability.
The system continuously monitors:
- Hydraulic oil temperature and pressure
- Motor current and voltage
- Sensor performance
- Brake system condition
If abnormalities are detected, the system generates alerts before a failure occurs. This enables predictive maintenance, reducing downtime and repair costs.
Some systems can even transmit data remotely to service engineers for troubleshooting support.
11. Energy Efficiency Control Features
To reduce operational costs, modern travel lifts include energy-efficient control modes such as:
- Variable frequency drive (VFD) motor control
- Load-based power adjustment
- Idle energy-saving mode
These features optimize hydraulic pump output and motor speed based on real-time load conditions, significantly reducing fuel or electricity consumption.
12. Integration with Smart Yard Management Systems
In advanced shipyards, 35 ton travel lifts can be integrated into digital yard management systems. This allows operators to:
- Schedule lifting operations digitally
- Track vessel movement history
- Coordinate with other lifting equipment
- Optimize yard space utilization
This level of integration improves overall productivity and reduces operational delays.
Manufacturers such as Aicrane often incorporate these smart control capabilities into their marine lifting solutions to meet modern industrial requirements.
Conclusion
The control system of a 35 ton travel lift is far more than a simple operator interface—it is a highly integrated network of intelligent technologies that ensure safety, precision, and efficiency in marine lifting operations.
From PLC-based synchronization and hydraulic balancing to wireless remote control and predictive maintenance systems, each feature plays a critical role in ensuring stable vessel handling.
As shipyards continue to modernize, control systems will become even more advanced, incorporating AI-assisted diagnostics, remote monitoring, and fully automated lifting cycles. For operators and facility owners, understanding these control features is essential for selecting the right equipment and maximizing long-term operational performance.
