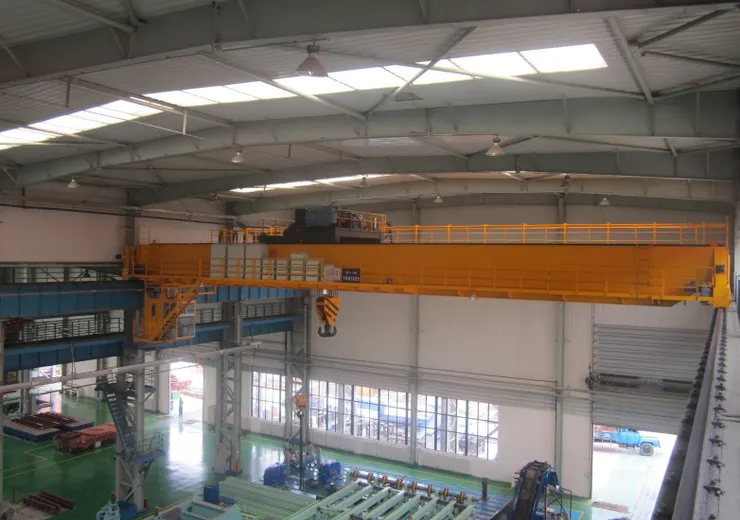

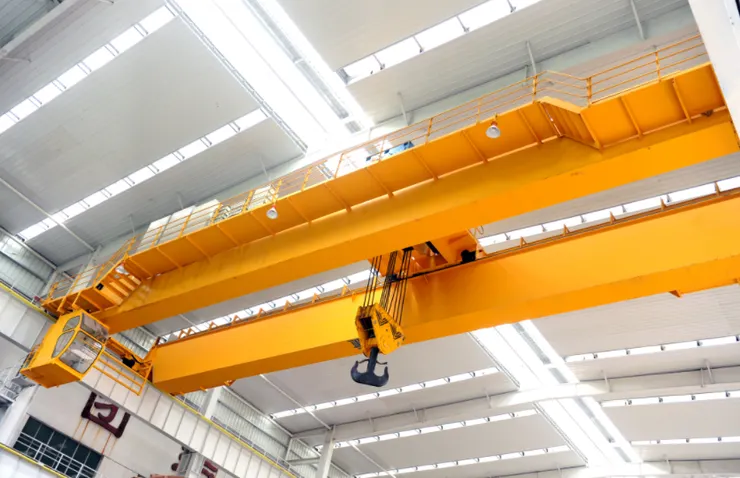

In the world of heavy industry, a 100-ton overhead crane is a colossal investment. Whether it is lifting massive turbines in a power plant, moving molten metal in a foundry, or positioning heavy dies in an automotive factory, the stakes are incredibly high. At this capacity, the difference between a smooth operation and a catastrophic failure often comes down to how the motor is controlled.
Traditionally, heavy cranes relied on contactors and resistors—systems that were effective but blunt. Today, the gold standard for controlling these giants is the Variable Frequency Drive (VFD). A VFD is a type of motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor.For a 100 ton overhead crane, moving from "on/off" control to a VFD-controlled system isn't just an upgrade; it’s a fundamental shift in efficiency and safety. Here are the top five benefits of implementing VFDs in high-capacity overhead cranes.
1. Superior Load Control and Precision Positioning
When you are suspended with 100 tons of equipment, "close enough" is never good enough. Traditional motor controls often result in "jerky" movements because the motor receives full power instantly. This causes the load to swing—a phenomenon known as load sway.
How VFDs Solve This: VFDs allow for stepless speed control. Instead of having two or three fixed speeds, the operator can accelerate and decelerate at a smooth, programmed rate. This is particularly critical for a 100-ton crane where the inertia is massive.
- Micro-positioning: Operators can move the crane in increments of millimeters. This is essential when aligning heavy machinery or placing a load onto a precise mounting point.
- Electronic Anti-Sway: Many modern VFDs come with built-in software that calculates the pendulum effect of the load and automatically adjusts the crane's acceleration to counteract and neutralize sway.
2. Significant Reduction in Mechanical Wear and Tear
A 100-ton crane generates immense physical stress every time it starts or stops. With traditional "across-the-line" starting, the motor instantly jumps to full torque, creating a "shock" that ripples through the entire mechanical chain.
- The Gearbox and Couplings: This sudden torque puts immense pressure on gear teeth and couplings, leading to premature fatigue and chipping.
- The Brakes: In non-VFD systems, brakes are often used to slow the crane down. This causes high friction and heat, meaning brake pads must be replaced frequently.
The VFD Advantage: VFDs provide a "Soft Start" and "Soft Stop." The drive ramps the frequency up from zero, allowing the motor to gradually build torque. More importantly, the VFD uses dynamic braking or regenerative braking to slow the crane down electrically before the mechanical brakes even engage. Consequently, the mechanical brakes act only as a "holding" mechanism rather than a "stopping" mechanism, extending the life of the brake liners and gearboxes by years.
3. Enhanced Safety Features and Fault Diagnostics
Safety is the primary concern when managing a 100-ton load. A mechanical failure at this scale is not just a downtime issue; it is a life-safety issue. VFDs act as the "brain" of the crane, constantly monitoring the health of the system.
Advanced Safety Protections:
- Overload Protection: The VFD monitors the current drawn by the motor. If it detects a spike that suggests the 100-ton limit is being exceeded or the load is snagged, it can shut down the lift instantly.
- Phase Loss Protection: If one of the power phases drops out, the VFD detects the imbalance and prevents the motor from running, which avoids "single-phasing" that could burn out an expensive 100-ton hoist motor.
- Brake Proving: Before the VFD allows the hoist to lift, it performs a "torque check" to ensure the motor has control of the load before the mechanical brake is released. If the motor isn't producing enough torque to hold the weight, the brake stays shut.
4. Energy Efficiency and Cost Savings
It takes a staggering amount of electricity to get a 100-ton load moving from a dead stop. In traditional systems, this "inrush current" can be up to 600% higher than the motor’s rated current. This not only spikes your energy bill but can also strain the building's electrical infrastructure.
Efficiency Gains:
- Reduced Inrush Current: VFDs limit the starting current to roughly 100-150% of the motor’s rating. This levels out the "demand spikes" on your utility bill, which are often the most expensive part of industrial electricity costs.
- Regenerative Power: When a 100-ton load is being lowered, gravity is doing the work. A regenerative VFD can actually turn the motor into a generator, taking that potential energy and feeding it back into the facility's power grid. On a heavy-duty overhead crane, this can result in energy savings of 30% or more.
5. Increased Productivity and Duty Cycle
While it might seem that "slower is safer," VFDs actually allow a crane to work faster when it is safe to do so. This is achieved through a feature known as "Extended Speed Range" or "Field Weakening."
Optimizing the Workflow:
- Empty Hook Speed: When the crane is not carrying a load, the VFD can safely run the motor at speeds above its base frequency (e.g., 60Hz to 90Hz). This allows the operator to return the hook to the starting position twice as fast, significantly reducing cycle times.
- Customizable Acceleration: Different tasks require different speeds. A 100-ton crane might be used for a 90-ton lift in the morning (requiring slow, careful movement) and a 10-ton lift in the afternoon. The VFD allows the operator to switch "profiles" to optimize speed for the specific weight being handled.
Implementation Considerations for 100-Ton Systems
While the benefits are clear, installing a VFD on a 100-ton crane requires professional engineering. You must consider:
- Heat Dissipation: VFDs generate heat. For large cranes, the control panels often require specialized cooling or air conditioning to ensure the electronics don't overheat in demanding environments like steel mills.
- Harmonic Distortion: Large drives can introduce "noise" into the electrical system. Using line reactors or harmonic filters is essential to protect other sensitive electronics in your facility.
- Encoder Feedback: For maximum precision on 100-ton hoists, a "closed-loop" system using an encoder on the motor shaft is recommended. This provides the VFD with real-time data on the exact position and speed of the motor.
Final Thoughts
Upgrading to a Variable Frequency Drive is the single most impactful improvement you can make to a 100-ton overhead crane. By moving away from the "all-or-nothing" approach of traditional contactors, you gain unparalleled precision, drastically reduce your maintenance budget, and—most importantly—create a significantly safer environment for your operators and equipment.
In an era where industrial efficiency is the key to competitiveness, a VFD-equipped crane isn't just a luxury; it’s a technical necessity for modern heavy lifting operations.
