Rubber Tyred Gantry (RTG) cranes are a vital piece of equipment in container handling operations at ports and intermodal terminals. Known for their mobility, flexibility, and high load capacities, RTG cranes play a critical role in stacking containers efficiently and reducing turnaround time. One of the often-overlooked yet crucial design considerations of RTG cranes is the number of wheels they are equipped with. This seemingly minor component significantly affects the crane's stability, maneuverability, load distribution, and overall performance. In this article, we delve deep into how the number of wheels influences RTG crane functionality and the factors that determine the optimal wheel configuration.
Understanding RTG Crane Design

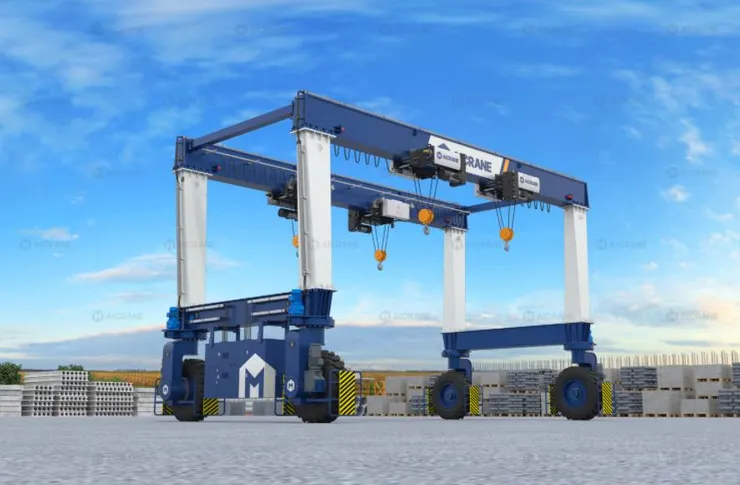

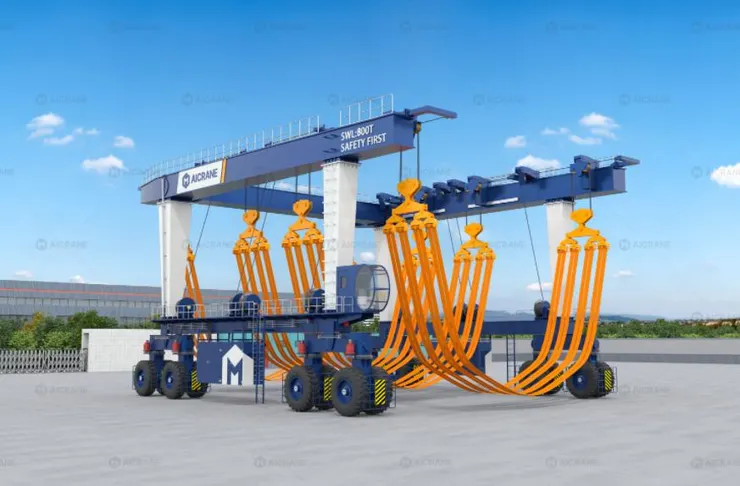

Before we analyze the impact of wheel count, it’s important to understand the basic structure of an RTG crane. An RTG rubber tyred gantry crane consists of:
- A gantry frame mounted on rubber tires (instead of rails),
- A trolley that runs along the gantry crossbeam,
- A hoisting system for lifting containers,
- Diesel, hybrid, or electric power systems, and
- Steering and drive mechanisms housed in the wheel assemblies.
Typically, RTG cranes come in 4-wheel, 8-wheel, 16-wheel, or even 20-wheel configurations, depending on their design and application requirements.
The Role of Wheels in RTG Cranes
Wheels are not just for movement; they are essential in distributing the crane’s load, ensuring stability during operation, minimizing ground pressure, and facilitating precise maneuverability. Here's how the number of wheels affects each of these aspects:
1. Load Distribution and Ground Pressure
The total load of an RTG crane, including its self-weight and the container it carries, must be supported by the wheel assemblies. Increasing the number of wheels spreads the load across a larger surface area, which significantly reduces ground pressure. This is crucial for:
- Preventing surface damage to container yards or terminals with lower pavement strength.
- Maintaining safety and structural integrity, especially in yards with sub-optimal foundation conditions.
- Allowing heavier loads to be carried without overburdening individual wheels or tires.
For example, a 16-wheel RTG crane exerts less pressure per wheel than an 8-wheel counterpart, making it suitable for use in container yards with soft ground or asphalt surfaces.
2. Stability During Lifting Operations
Stability is paramount when lifting and stacking containers that can weigh over 40 tons. More wheels improve stability in the following ways:
- Larger footprint: More wheels mean the crane has a wider and more stable base.
- Better load balancing: The crane’s structure is better supported from multiple points, minimizing tipping risks.
- Resistance to sway: During container handling, especially in windy conditions, more wheels reduce the amount of sway and enhance crane control.
In addition, RTG cranes with higher wheel counts typically feature advanced anti-sway systems and load sensors to further optimize safe operation.
3. Maneuverability and Steering Precision
While it may seem that more wheels would reduce maneuverability, modern RTG wheeled gantry cranes are equipped with independent steering mechanisms and multi-mode steering systems that counter this issue. Nevertheless, wheel count does play a role in maneuverability:
- 4- and 8-wheel RTG cranes are generally easier to maneuver in tight spaces.
- 16- or 20-wheel cranes may have a wider turning radius, but this is offset by advanced steering technologies such as 90-degree steering, carousel turning, or crab steering.
Yard layout plays a significant role in determining whether fewer wheels (and hence greater agility) or more wheels (and hence greater stability) are more beneficial.
4. Operational Efficiency
RTG cranes are expected to handle large numbers of containers quickly. The number of wheels impacts efficiency in the following ways:
- Reduced downtime: More wheels mean less stress on individual tires, extending their life and reducing maintenance frequency.
- Smooth mobility: With even load distribution, the crane moves more smoothly over yard surfaces.
- Increased safety margins: Cranes with more wheels have built-in redundancy. If one wheel or axle fails, others can help maintain functionality temporarily.
This ultimately reduces delays and ensures smoother terminal operations.
5. Maintenance Considerations
Maintenance costs and requirements also vary with wheel count:
- More wheels mean more parts: Bearings, axles, tires, and braking systems require regular inspection.
- Tire wear is more distributed: This can reduce replacement frequency and improve ROI over time.
- Hydraulic and electrical systems for steering and driving more wheels are more complex and require specialized service personnel.
Crane operators must balance the maintenance implications against operational benefits when selecting wheel configurations.
6. Cost Implications
More wheels mean higher initial investment due to the cost of additional components. However, this can be offset by:
- Longer operational life,
- Lower ground repair costs,
- Increased load capacity, and
- Improved safety.
Therefore, total cost of ownership (TCO) analysis is essential when determining the most cost-effective wheel configuration for a specific terminal.
Wheel Configurations in Practice
4-Wheel and 8-Wheel RTG Cranes
- Best for light-duty operations or small terminal yards.
- Offer better agility and are easier to deploy in narrow aisle layouts.
- Limited in maximum lifting capacity and ground pressure distribution.
16-Wheel RTG Cranes
- Industry standard for medium- to heavy-duty operations.
- Provide an excellent balance between load capacity, stability, and maneuverability.
- Suitable for most modern container yards with average to good ground conditions.
20-Wheel RTG Cranes
- Used in heavy-duty terminals or areas with soft ground conditions.
- Enable extremely low ground pressure and maximum stability.
- Ideal for handling twin-lift operations or stacking containers 5-6 high.
Factors to Consider When Choosing Wheel Number
When selecting the number of wheels for an RTG crane, consider the following factors:
- Terminal ground conditions – soil strength and pavement structure.
- Container handling volume – throughput and average container weight.
- Yard layout – available space for turning and stacking.
- Budget and lifecycle costs – including maintenance and tire replacement.
- Environmental conditions – wind load, rain, and surface friction.
Conclusion
The number of wheels on an RTG crane significantly impacts its stability, load distribution, performance efficiency, and operational safety. While fewer wheels offer maneuverability and simplicity, higher wheel counts provide better ground pressure management, enhanced stability, and longer component life—especially critical in high-load or soft-ground environments.
Port operators and terminal designers must carefully assess their operational needs and environmental conditions to determine the ideal RTG crane configuration. With the right wheel setup, RTG cranes can deliver optimal performance, reduce maintenance downtime, and enhance the overall efficiency of container handling operations.
