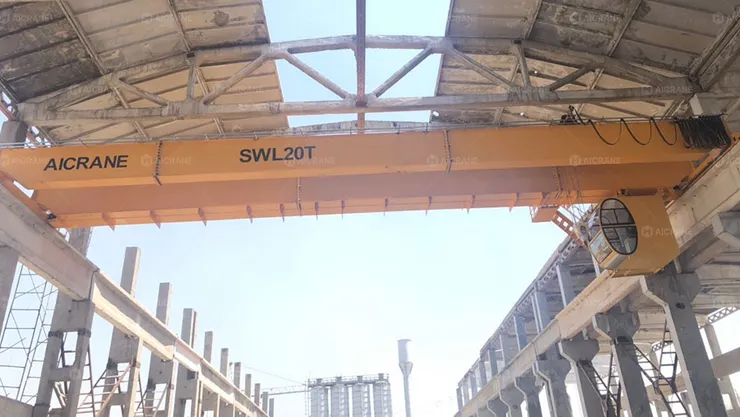

Designing a 20-ton overhead crane requires meticulous engineering that not only ensures optimal performance but also prioritizes safety. One of the most essential aspects of safe crane operation is the incorporation of safety margins. Safety margins are the calculated allowances included in a crane’s design to compensate for uncertainties, reduce risks of failure, and improve the overall reliability of the system. In this article, we’ll explore how to effectively incorporate safety margins into the design of a 20-ton overhead crane, addressing structural, mechanical, electrical, and operational considerations.
1. Understanding Safety Margins in Overhead Crane Design
A safety margin, or safety factor, is the ratio between the crane's maximum load-carrying capacity and the maximum expected working load. For example, if a crane is designed to lift a maximum of 20 tons (working load), the components might be rated to handle 25 or even 30 tons, depending on the application, safety standards, and environmental factors.
These margins are not meant to encourage overloading; instead, they account for:
- Material variability
- Unexpected dynamic forces
- Wear and fatigue over time
- Operator error
- Environmental impacts (e.g., wind, temperature)
International standards, such as those from FEM, ISO, CMAA, and ASME, guide safety factors for different components of the 20 ton overhead crane.
2. Structural Design Safety Margins
a. Load Factor and Design Factor
When calculating the structure of a 20-ton crane (including girders, end trucks, and supports), engineers use load combinations and apply load factors. These factors depend on the intended duty class of the crane (e.g., light duty, moderate, heavy, or severe).
For example, a typical structural safety factor might be:
- 1.5 to 2.0 for the crane girders
- 2.0 to 3.0 for supporting columns or runway beams
These factors vary depending on:
- Fatigue life (number of expected cycles)
- Type of operation (indoor vs. outdoor)
- Whether the crane will carry dynamic or impact loads
b. Material Strength
The yield strength of the structural steel is considered in safety margin calculations. For a 20-ton overhead crane, engineers often use high-strength steel for the main beam and connections, ensuring that even under stress and fatigue, the structure won’t deform or fail prematurely.
3. Hoisting Mechanism and Mechanical Components
a. Wire Ropes and Hooks
- Wire ropes usually have a safety factor of 5 to 7. This means that a wire rope used in a 20-ton crane must be capable of bearing 100 to 140 tons before failing.
- Hooks must comply with ASME B30.10 or equivalent, which requires at least a 5:1 safety factor for hoist hooks.
b. Gearing and Drive Mechanisms
The gears and drives are designed to operate under full load with an added safety margin. For a 20-ton crane, this includes:
- Oversized gearboxes capable of handling overloads without excess wear
- Brake systems with at least 150% holding capacity of the rated load
- Dual or redundant braking systems in case one fails
These margins ensure the crane can function safely even if one component degrades or underestimates the applied loads.
4. Electrical and Control Systems
Safety margins are also integrated into the design of the crane's electrical and control systems.
a. Motor Sizing
Hoisting motors and trolley motors are typically designed with higher power ratings than the minimum required. This allows the motor to run cooler, avoid overheating, and cope with voltage fluctuations or mechanical resistance.
- A hoist motor for a 20-ton single girder overhead crane may have a rated capacity of 25–30 tons.
- Thermal protection and overload relays provide added protection to electrical components.
b. Limit Switches and Sensors
- Limit switches for lifting, lowering, trolley travel, and bridge travel must be fail-safe and tested with margins.
- Overload sensors prevent the crane from lifting loads beyond rated capacity. These are typically set below the ultimate failure point to ensure intervention happens in time.
5. Operational Safety Margins
a. Rated Load Test
Before a crane is commissioned, it's subjected to load testing as part of the safety assurance process.
- According to many global standards (e.g., ASME B30.2), a proof load test is conducted at 125% of the rated capacity (i.e., 25 tons for a 20-ton crane) to verify that all components perform safely under stress.
b. Duty Classification
Cranes are categorized based on the number of load cycles and intensity of usage. The higher the duty class, the greater the safety margin needs to be.
- For example, an FEM Class 2m or CMAA Class C crane may require higher safety margins in components due to more frequent usage than a Class A crane.
6. Environmental Safety Margins
Incorporating environmental considerations is critical for cranes exposed to harsh conditions.
- Wind load safety margins for outdoor cranes (adding wind load factors in the structure design)
- Temperature effects (material strength varies with extreme cold or heat)
- Corrosive environments (requiring corrosion-resistant materials and extra coatings)
7. Maintenance and Inspection Provisions
A well-designed crane includes features that facilitate easier inspection and maintenance, thus indirectly contributing to operational safety margins.
- Access platforms and ladders for safe maintenance
- Built-in diagnostics in control systems to monitor real-time conditions
- Condition monitoring systems for wire ropes, brakes, and motors
Proactive maintenance based on these systems ensures that actual operating margins remain within safe limits throughout the crane’s lifespan.
8. Redundancy in Critical Systems
Redundancy is a form of safety margin that ensures a second system is available in case the primary one fails.
Examples in 20-ton overhead crane design include:
- Dual brakes on hoists
- Redundant power feeds
- Backup control systems in automated cranes
Conclusion
Incorporating safety margins in the design of a 20-ton overhead crane is essential to ensure reliable, long-term, and secure operations. These margins are not just theoretical calculations—they translate directly into the crane’s ability to withstand the unpredictable realities of industrial environments. By integrating safety factors into the structural, mechanical, electrical, and operational elements, designers can build cranes that deliver both performance and peace of mind.
When selecting a 20-ton overhead crane, buyers should not only consider the rated capacity but also inquire about the safety margins, compliance with international standards, and the manufacturer’s engineering philosophy. A crane that’s engineered with thoughtful safety margins is an investment in reliability, reduced downtime, and most importantly, workplace safety.
