In industries that involve the handling of extraordinarily heavy and oversized components, overhead cranes with lifting capacities of 100 tons or more become essential. These cranes are not only feats of engineering, but also critical assets in industrial operations where safety, efficiency, and precision are paramount. From steel mills and power plants to shipyards and aerospace assembly lines, 100+ ton overhead cranes play a pivotal role. This article delves into where these powerful cranes are used, why they are necessary, and the features that make them suitable for the most demanding lifting tasks.
Understanding 100+ Ton Overhead Cranes

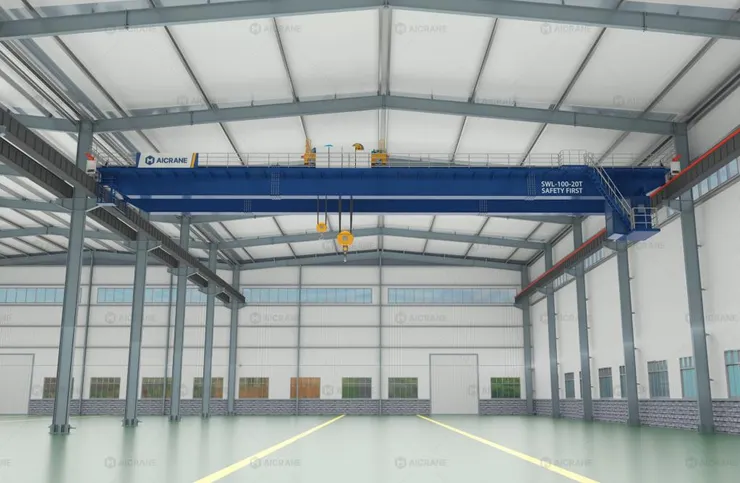

Overhead cranes, also known as bridge cranes or EOT (Electric Overhead Traveling) cranes, consist of parallel runways with a traveling bridge spanning the gap. A hoist, the lifting component, travels along the bridge. When we talk about 100 ton overhead cranes, we are referring to cranes that can lift loads exceeding 100 tons (approximately 220,000 pounds or 100,000 kilograms).
These cranes are usually double girder or even custom-engineered multiple girder types, designed to handle high-capacity loads consistently. Often built with advanced control systems, redundant safety mechanisms, and heavy-duty mechanical structures, these cranes are essential for industries where large-scale materials must be handled with accuracy and care.
Industries That Use 100+ Ton Overhead Cranes
1. Steel and Metal Production

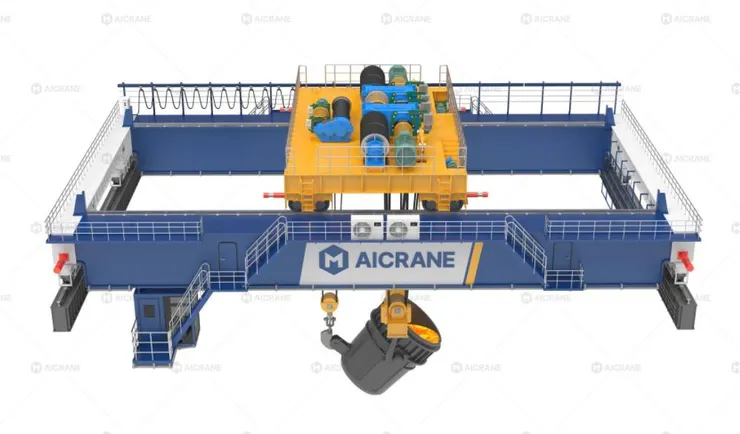

Steel mills and heavy metal processing plants are perhaps the most common settings for 100+ ton overhead cranes. These steel mill cranes are used to transport molten metal ladles, large ingots, and steel coils. Due to the extreme temperatures and weights involved, the cranes must be built to withstand heat, provide stability, and operate without failure in harsh environments.
Why they are used:
- To move molten steel in ladles weighing over 100 tons.
- To transport massive steel rolls or slabs across long distances.
- To support the 24/7 operational cycles of steel production with minimal downtime.
2. Hydropower and Thermal Power Plants
Power stations, especially hydroelectric and thermal power plants, use 100+ ton cranes for installation and maintenance of turbines, generators, and other large-scale mechanical equipment.
Why they are used:
- These plants often need to lift and assemble massive components during construction and major overhauls.
- Precision and safety are critical when positioning turbines or removing damaged parts for maintenance.
3. Shipbuilding and Ship Repair Yards
Shipyards regularly use overhead cranes to handle sections of ships, engines, and other marine components. While gantry cranes are also common, overhead cranes installed in large ship manufacturing hangars are used to lift and position ship modules that can easily exceed 100 tons.
Why they are used:
- For lifting large ship blocks and aligning them for assembly.
- To transfer heavy equipment and engines inside ship hulls.
- To reduce reliance on mobile cranes or gantries in indoor assembly operations.
4. Aerospace and Aircraft Manufacturing
Although not as widespread, some aircraft and space vehicle manufacturing processes also require 100+ ton overhead cranes. They may be used to lift fuselages, rocket boosters, or other large components during assembly and testing.
Why they are used:
- To handle large, fragile, and expensive aerospace components with high precision.
- For safe movement in highly controlled environments like clean rooms or assembly bays.
5. Mining and Cement Plants
In heavy-duty industries like mining and cement, 100+ ton cranes are used to move equipment such as crushers, rotary kilns, and grinding mills during installation or maintenance.
Why they are used:
- To reduce manual labor and the time required for moving heavy machinery.
- To ensure precise handling of equipment that is central to continuous operations.
6. Precast Concrete Manufacturing
Factories producing large concrete bridge beams, columns, and tunnel segments use high-capacity overhead cranes to move and stack products.
Why they are used:
- To handle the immense weight of precast concrete elements.
- To support tandem lifting operations involving multiple cranes lifting the same load.
Key Features of 100+ Ton Overhead Cranes
1. Double or Multiple Girder Designs
For high lifting capacities, double girder or multi-girder configurations are essential. These designs ensure structural rigidity, load stability, and minimized deflection under weight.
2. Heavy-Duty Hoists and Trolleys
The hoisting system must be capable of smooth lifting while handling heavy loads. High-capacity wire rope hoists or winch-type hoists are common, with advanced braking systems and thermal protection.
3. Precision Control Systems
High-capacity cranes often come with variable frequency drives (VFDs) and programmable logic controllers (PLCs) that allow for micro-adjustments during lifting, improving safety and accuracy.
4. Redundant Safety Features
Safety is paramount in lifting operations involving 100+ tons. These cranes are equipped with:
- Overload protection devices
- Anti-collision systems
- Emergency stop systems
- Load sway reduction systems
- Operator cabins or remote control with safety feedback
5. Custom Span and Lifting Height
To accommodate different facility layouts, these cranes are often custom-engineered to specific span and height requirements, sometimes exceeding 30 meters in span or 20 meters in lifting height.
Benefits of Using 100+ Ton Overhead Cranes
- Enhanced Efficiency: These cranes eliminate the need for multiple lifts or intermediate handling, improving overall production speed.
- Labor and Cost Savings: Automation and high-capacity lifting reduce labor costs and prevent delays caused by equipment limitations.
- Improved Safety: Replacing forklifts or mobile cranes with overhead cranes significantly reduces workplace accidents.
- Space Optimization: By using overhead space, ground-level floor space remains open for other operations or logistics.
Considerations When Choosing a 100+ Ton Overhead Crane
1. Application Specificity
Understand whether the crane is needed for periodic maintenance, continuous production, or tandem operations. The frequency of use impacts the required duty classification (e.g., A5, A6, A7, A8).
2. Environment
Operating conditions such as high temperatures, humidity, dust, or corrosive environments affect crane material choices and protective coatings.
3. Custom Engineering
Because every heavy-duty application is unique, most 100+ ton overhead cranes are not off-the-shelf products. Partnering with a trusted manufacturer ensures tailored solutions that match exact operational needs.
4. Installation and Maintenance
Due to the scale and complexity, professional installation and long-term maintenance planning are crucial for safe and uninterrupted operations.
Conclusion
100+ ton overhead cranes are indispensable tools in industries that require safe, reliable, and efficient handling of the heaviest loads. Their applications span across some of the most demanding sectors—steelmaking, shipbuilding, power generation, aerospace, and mining—where the ability to move large components safely can directly influence productivity and safety.
As industries grow and the need for mega-scale infrastructure continues, the role of high-capacity overhead cranes will only become more important. Choosing the right crane involves careful evaluation of operational needs, load characteristics, and working conditions. With the right crane system in place, businesses can streamline their operations, reduce risks, and maximize their industrial output.
