In modern industrial operations, overhead cranes are indispensable tools for moving heavy loads efficiently, safely, and accurately. From metal fabrication workshops and steel mills to warehouses and precast concrete plants, selecting the right type of overhead crane is crucial for optimizing workflow, enhancing productivity, and ensuring safety. While many factors influence crane selection—such as load capacity, lifting height, span, and duty class—workflow patterns within the facility are often the most decisive factor. This article explores how understanding workflow patterns can guide the selection of an appropriate overhead crane type, ultimately improving operational efficiency and reducing costs.
Understanding Workflow Patterns
Workflow patterns refer to the movement of materials, equipment, and personnel within a facility. These patterns are shaped by production processes, storage arrangements, loading and unloading points, and the layout of machinery. By analyzing workflow patterns, facility managers can identify the paths along which materials move most frequently, determine bottlenecks, and understand the level of precision required in material handling.
For example, in a steel fabrication shop, raw steel plates may enter at one end of the workshop, move through cutting, bending, and welding stations, and finally exit as finished components. Each of these stages has specific material handling requirements that must be matched with the crane’s capabilities. Workflow patterns in such an environment are linear and repetitive, making certain crane types more suitable than others. Conversely, in a storage warehouse, materials may be moved in multiple directions, with frequent changes in movement paths. Here, flexibility and maneuverability become critical criteria.
Types of Overhead Cranes
There are several common types of overhead cranes, each with unique characteristics and advantages:
- Single Girder Overhead Cranes

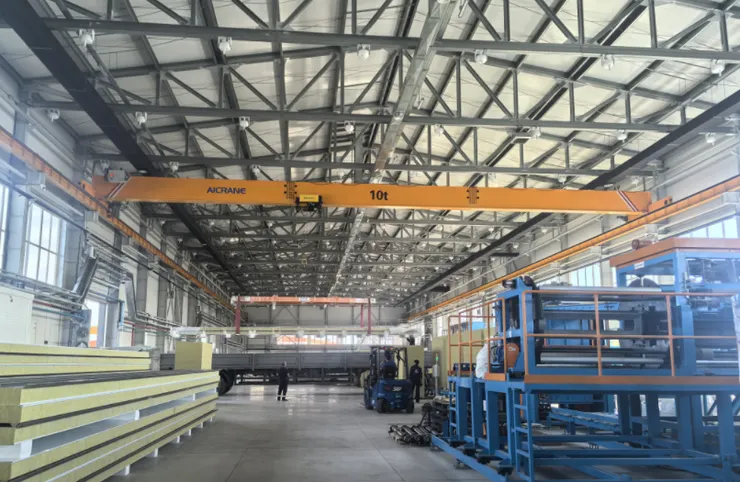

Single girder cranes have one main beam (girder) that supports the hoist. They are generally lighter, more cost-effective, and suitable for medium-duty operations. These single girder bridge cranes are ideal for workshops where the load paths are relatively straightforward and do not require high lifting speeds or heavy-duty handling. - Double Girder Overhead Cranes

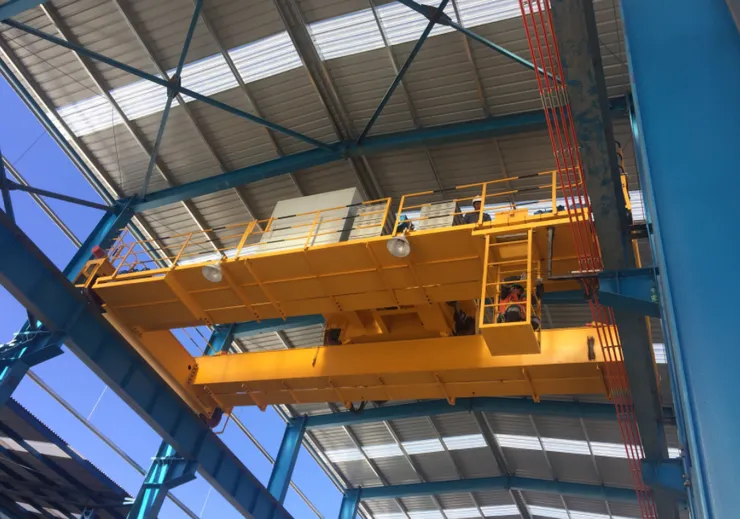

Double girder cranes consist of two main girders, providing enhanced lifting capacity and longer spans. They are suitable for heavy-duty operations, including steel mills, shipyards, and precast concrete plants. These cranes are ideal for workflows requiring high load capacities, long travel distances, or frequent use, as they offer better stability and durability. - Gantry Cranes
Gantry cranes have a bridge supported by legs that move along rails on the floor. They can be either single or double girder and are particularly suited for outdoor operations or areas where an overhead runway structure is not feasible. Gantry cranes are excellent for facilities with flexible workflow patterns or temporary layouts. - Semi-Gantry Cranes
Semi-gantry cranes are a hybrid design with one end running on a runway and the other supported by a leg on the ground. They are ideal for facilities where part of the workflow requires traversing over existing equipment or uneven surfaces. - Jib Cranes
Jib cranes have a horizontal jib that supports a hoist, mounted either on a wall or floor pillar. They are suitable for localized operations where loads need to be moved within a limited radius. Jib cranes are perfect for workshops with repetitive, localized tasks, such as loading machines or assembly lines. - Bridge Cranes with Specialized Attachments
Some operations require cranes equipped with specialized lifting attachments, such as magnets, clamps, or grabs. These are often used in metal handling, scrap processing, or bulk material handling environments. Workflow patterns in these facilities often involve non-standard load shapes, requiring tailored crane solutions.
Matching Crane Types to Workflow Patterns
Selecting the appropriate overhead crane involves aligning crane capabilities with the workflow’s operational characteristics. Several key considerations help guide this selection:
1. Linear vs. Multi-Directional Workflow
Facilities with linear workflows, such as assembly lines or production chains, benefit from overhead cranes with long, unobstructed travel paths, such as single or double girder bridge cranes. These cranes can move materials efficiently along a predictable path, minimizing handling time.
In contrast, facilities with multi-directional workflows, such as warehouses or storage yards, require cranes with flexibility, such as gantry cranes or semi-gantry cranes. These cranes can navigate complex paths and adapt to changing layouts, ensuring that material handling remains efficient.
2. Load Size and Weight
Heavy loads require double girder or specialized gantry cranes, while lighter loads can often be handled by single girder cranes or jib cranes. Workflow patterns that involve frequent handling of very heavy items, such as steel beams, molds, or machinery components, necessitate robust crane designs capable of maintaining stability and safety under high stress.
3. Frequency of Material Handling
High-frequency operations, such as steel mills or precast concrete plants, require cranes with high duty ratings and precise control systems. Double girder cranes with advanced hoists and speed controls ensure smooth operation and reduce downtime, especially when the workflow involves continuous movement of materials. For low-frequency operations, simpler single girder or jib cranes may suffice.
4. Precision and Positioning Requirements
Certain workflows demand precise load positioning, such as in assembly operations or machining centers. Cranes equipped with variable frequency drives, anti-sway mechanisms, and fine positioning controls are critical in these scenarios. The workflow pattern dictates whether precision is more important than load capacity or speed, influencing the choice of crane type.
5. Facility Layout and Obstructions
Workflow patterns are influenced by facility layout, including the placement of machinery, storage racks, and columns. In facilities with obstructions, gantry cranes or semi-gantry cranes can provide flexibility. Overhead bridge cranes are ideal in unobstructed facilities, maximizing lifting coverage while minimizing floor congestion.
6. Adaptability to Future Changes
Workflow patterns may evolve due to changes in production lines, product mix, or storage configurations. Selecting a crane type that can adapt to these changes is crucial. For example, gantry cranes can be relocated easily, while bridge cranes may require structural modifications. Understanding potential workflow shifts ensures that the chosen crane remains effective over its service life.
Case Examples
- Steel Fabrication Workshop: A workshop producing steel beams has a linear workflow from cutting to welding to finishing. A double girder bridge crane with a long span and high duty class provides efficient handling of heavy beams along this fixed path, ensuring smooth production flow.
- Precast Concrete Plant: Handling precast slabs and beams requires lifting heavy loads over multiple storage areas. Semi-gantry or full gantry cranes allow flexible movement and can adapt to changing storage layouts while maintaining high lifting capacity.
- Warehouse Operations: A warehouse with dynamic storage needs benefits from a combination of single girder bridge cranes for predictable load paths and jib cranes at localized points for loading and unloading pallets. This combination optimizes both coverage and precision.
- Scrap Metal Yard: Workflow patterns are unpredictable, with materials varying in size, shape, and destination. A double girder gantry crane equipped with magnets or grabs allows flexible movement, precise handling, and adaptability to different load types.
Conclusion
Selecting an overhead crane based on workflow patterns is an essential step in achieving operational efficiency, safety, and productivity. By carefully analyzing the paths along which materials move, the frequency and weight of loads, and the precision required, facility managers can choose a crane type that aligns with their operational needs. Single girder cranes, double girder cranes, gantry cranes, and specialized cranes each have distinct advantages depending on workflow characteristics.
Ultimately, a workflow-informed crane selection approach reduces handling time, minimizes operational bottlenecks, and maximizes return on investment. Facilities that take the time to understand their workflow patterns and match them with the appropriate overhead crane type gain a significant competitive advantage in terms of efficiency, safety, and flexibility.
Investing in the right crane for your workflow is not just about lifting capacity; it’s about optimizing the flow of materials to ensure that your operations run smoothly, safely, and cost-effectively for years to come.
