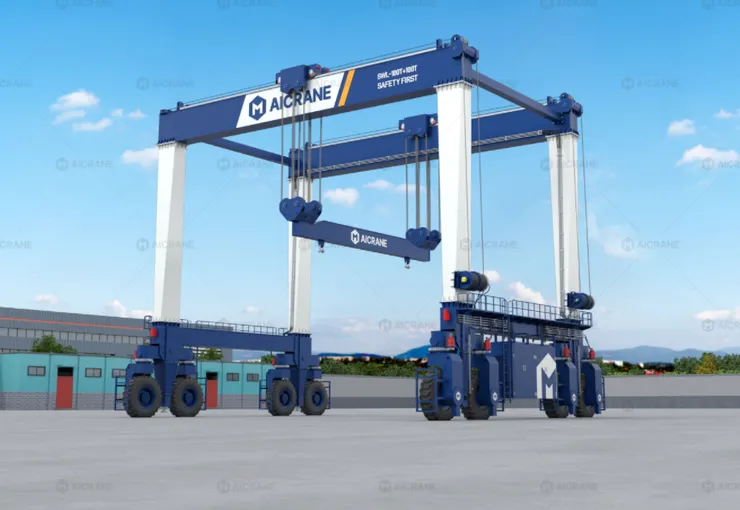

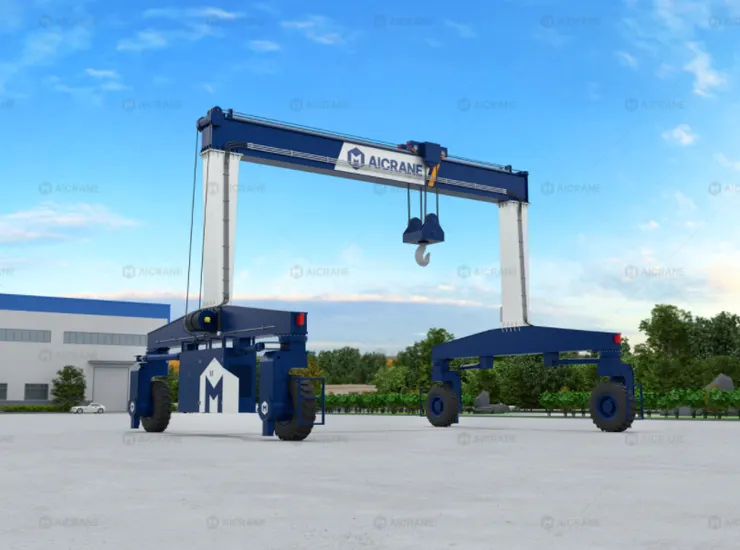

Rubber-Tyred Gantry (RTG) cranes are essential pieces of equipment in container terminals, intermodal yards, manufacturing facilities, and logistics centers. Their mobility is one of the biggest advantages compared with rail-mounted gantry cranes, enabling flexible routing within the yard and efficient use of storage space. Among multiple steering options available on modern RTGs, the 90-degree steering mode is one of the most critical, allowing the crane to move sideways for precise alignment and high-density container stacking.
This article explains how 90-degree steering mode works, why it is indispensable for rubber tyre gantry crane operations, the technologies enabling it, and key considerations for users evaluating RTGs with advanced steering systems.
1. Understanding RTG Crane Steering Systems
Traditional RTG cranes travel longitudinally along a stacking runway, guided manually by operators through simple forward and backward motions. However, container terminals increasingly require cranes to move between blocks, reposition quickly, and handle container operations in tight spaces. To support these needs, modern RTGs are equipped with:
- Multiple steering modes
- Independent wheel drives
- Hydrostatic or electric wheel mechanisms
- High-level electronic control systems
Steering enhancements greatly improve operational flexibility. Common RTG steering modes include:
- Straight travel
- Diagonal travel
- Pivot steering (spot turning)
- Crab steering
- 90-degree steering
Each mode serves a distinct function within the yard layout. Among these, 90-degree steering is one of the most powerful tools for achieving true multidirectional mobility.
2. What Is 90-Degree Steering Mode?
In 90-degree steering mode, the wheels of the RTG crane rotate to align perpendicular to the direction of the gantry. Instead of traveling forward/backward along its normal travel axis, the crane moves sideways across the stack.
In essence, the crane can shift laterally by 90 degrees without rotating its structure.
This sideways movement allows the crane to:
- Transition from one container block to another
- Reposition itself within narrow yards
- Align precisely with target container rows
- Reduce the need for multi-step turning adjustments
The mode is especially valuable in terminals with limited maneuvering space where rotating the entire crane is impractical.
3. How 90-Degree Steering Works
3.1 Independent Wheel Control
A standard RTG crane has 8 or 16 rubber-tired wheels arranged in two end trucks. In advanced steering systems, each wheel is equipped with an independent electric steering actuator or hydraulic mechanism. This enables wheels to rotate to precise angles required for lateral movement.
3.2 PLC-Based Steering Angle Coordination
A programmable logic controller (PLC) ensures that:
- All wheels rotate synchronously
- Steering angles match the desired movement mode
- Wheels remain aligned during travel
- Feedback sensors correct deviations continuously
This coordination prevents stress on the undercarriage and ensures smooth tracking.
3.3 Anti-Skid and Traction Control
Sideways movement increases the risk of tire friction and misalignment, especially under heavy loads. To counter this:
- Anti-skid systems monitor wheel rotation
- Drive systems modulate torque
- Speed is automatically limited during 90-degree mode
These protections keep movements safe and stable.
3.4 Stability and Load Control
During lateral travel, the crane ensures proper:
- Load stabilization
- Sway reduction
- Center-of-gravity alignment
Sensors check the spreader height and load weight to avoid tipping during sideways movement.
4. Benefits of 90-Degree Steering Mode
4.1 Enhanced Yard Flexibility
RTG cranes with 90-degree steering can move laterally between parallel stacking lanes without the need for:
- Reversing large distances
- Executing multi-point turns
- Using external towing vehicles
This flexibility supports dynamic yard layout changes.
4.2 Significant Time Savings
Sideway movement cuts repositioning time dramatically:
- Faster transition between blocks
- Lower unproductive travel distance
- Faster cycle times for handling peak workloads
Terminals can manage more container moves with the same number of cranes.
4.3 Reduced Yard Congestion
By enabling cross-lane movement, 90-degree steering prevents bottlenecks and improves internal traffic flow. RTGs can avoid crossing paths with trucks, reach stack ends faster, and bypass blockages.
4.4 Greater Space Utilization
Terminals can design narrower lanes and more compact yard layouts. RTGs no longer require wide turning radii, which reduces land usage and increases stacking density.
4.5 Improved Safety
The sideways motion eliminates risky multi-step turning maneuvers. With sensor-based steering and automated alignment:
- Human error is reduced
- Visibility challenges during sharp turns are avoided
- Crane operators maintain safer workflows
This is particularly beneficial in night operations or high-traffic yards.
4.6 Lower Tire Wear and Equipment Stress
When executed correctly under PLC control, 90-degree steering:
- Minimizes misalignment
- Prevents tire dragging
- Reduces structural stress
Overall, maintenance costs drop over the crane’s lifetime.
5. Applications Where 90-Degree Steering Is Most Valuable
5.1 Container Terminals With Dense Yard Layouts
Compact terminals benefit enormously from this mode, particularly those with:
- Limited turning space
- Narrow aisles
- Multiple parallel container stacks
5.2 Intermodal and Rail Yards
RTG cranes often need to travel between rail tracks and container blocks. Sideways movement makes repositioning simple and efficient.
5.3 Manufacturing Yards and Logistics Warehouses
Industrial facilities using RTGs for heavy materials benefit from easy sideways movement for:
- Aligning with production lines
- Moving between storage zones
- Positioning over workshops
5.4 Operations With Frequent Block Changes
Terminals that frequently adjust stacking plans can reposition RTGs quickly without layout constraints.
6. Technologies Enabling Modern 90-Degree Steering Systems
Modern RTGs rely on sophisticated systems to ensure smooth sideways travel.
6.1 Electronic Steering Systems
These systems provide:
- Real-time wheel angle feedback
- Automatic correction
- Centralized control through the PLC
6.2 Load Sway Control
Active sway reduction stabilizes the load during sideways motion.
6.3 GPS or Laser Guidance Systems
These guide the crane’s path and ensure it maintains accurate alignment.
6.4 Smart Control Algorithms
Algorithms optimize:
- Wheel angles
- Speed limits
- Side-travel pathing
- Differential torque distribution
6.5 Remote or Automated Mode Integration
Modern RTGs can integrate 90-degree movement into:
- Remote-controlled operations
- Semi-automated crane cycles
- Fully automated yard management systems
7. Limitations and Considerations
While 90-degree steering is highly beneficial, users must consider:
7.1 Higher Investment Cost
Advanced steering systems increase RTG gantry crane price due to:
- Steering actuators
- Additional sensors
- Smart control electronics
7.2 Operator Training
Operators must learn:
- When to use 90-degree mode
- How to monitor sideways movement
- Safety checks before lateral travel
7.3 Dependence on Yard Conditions
Smooth and level surfaces are important for optimal performance.
7.4 Maintenance Complexity
Steering actuators and control systems require specialized maintenance procedures.
Conclusion
The 90-degree steering mode is one of the most valuable innovations in rubber-tyred gantry crane technology. By enabling true sideways travel, it gives terminals unprecedented flexibility, reduces repositioning time, improves space utilization, and enhances safety. As container terminals and industrial yards continue to optimize land use and operational efficiency, RTGs equipped with multiple steering modes—especially 90-degree steering—will become increasingly essential.
This steering capability not only transforms daily operations but also future-proofs terminal infrastructure in an industry where efficiency and adaptability define long-term competitiveness.
