Rubber Tyred Gantry (RTG) cranes are essential equipment in container terminals, ports, and large storage yards. They are specifically designed for stacking and moving shipping containers, allowing efficient container handling operations. However, not all RTG cranes are created equal, and their lifting capacity can vary widely, from 30 tons for lighter handling tasks to over 100 tons for heavy-duty operations. Understanding what determines RTG crane capacity is critical for businesses seeking to optimize container handling efficiency while ensuring safety and operational reliability. This article explores the key factors influencing RTG crane capacity and provides insights for making informed purchasing and operational decisions.
1. Load Requirements
The most fundamental factor determining rubber gantry crane capacity is the weight and type of the loads it will handle. Containers, particularly fully loaded twenty-foot (TEU) or forty-foot (FEU) containers, can vary significantly in weight. Standard TEUs may weigh around 24–30 tons when fully loaded, while some high-density cargo containers can reach up to 40 tons or more. The crane must be rated to lift these loads safely, with an adequate safety margin.
The distribution of the load is equally important. RTG cranes designed to lift a single container must also account for potential uneven weight distribution. Containers may be loaded improperly, causing off-center weight distribution that could affect crane stability. Therefore, crane designers often incorporate a safety factor into rated capacities to account for such irregularities.
2. Structural Design and Engineering

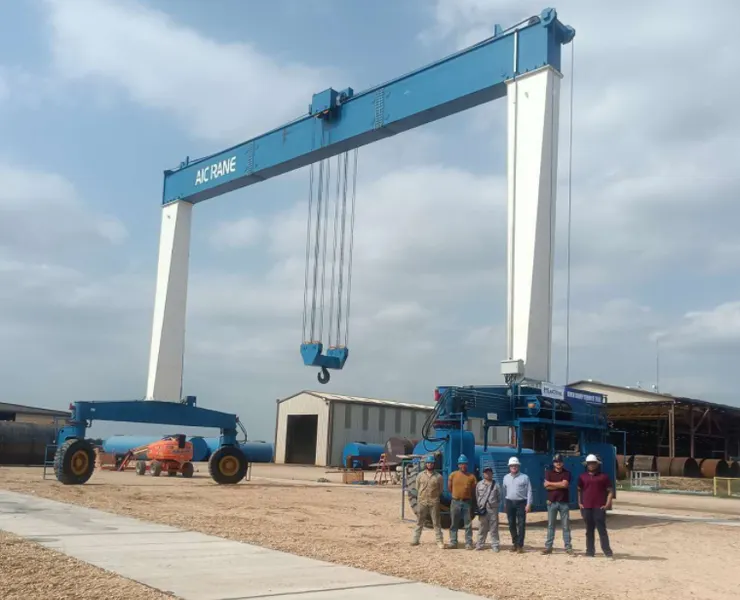

The design of the crane’s frame, gantry beams, and spreader significantly impacts lifting capacity. Rubber tire gantry crane for sale is typically supported on four rubber-tyred legs, and the strength and rigidity of these legs determine the maximum safe load.

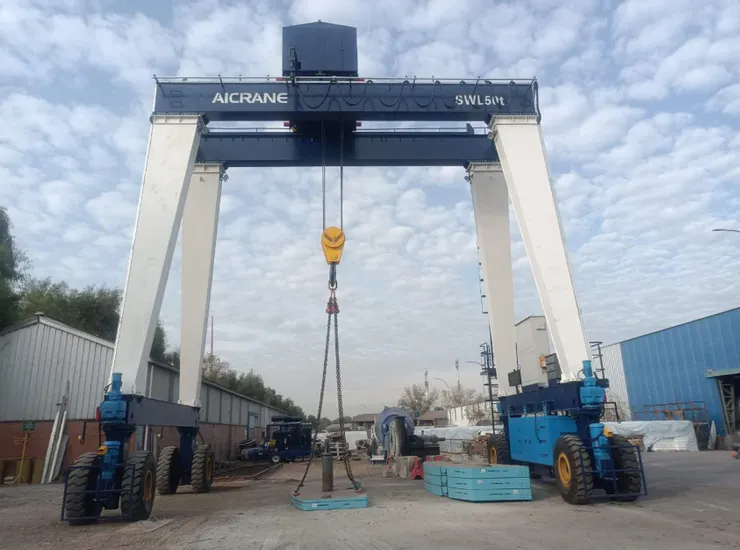

- Gantry Structure: Double-girder RTG cranes generally support higher capacities than single-girder models due to their increased structural rigidity. The gantry beams must withstand bending moments, torsion, and lateral forces during lifting. Engineering analyses, such as finite element modeling, are employed to ensure the frame can handle maximum rated loads without excessive deflection or stress.
- Spreader Design: The spreader is the mechanism that attaches to containers for lifting. Heavy-duty spreaders are engineered to distribute the load evenly and accommodate the maximum rated capacity. The lifting capacity is limited not only by the crane structure but also by the spreader’s mechanical limits.
3. Hoisting Mechanism
The hoist system is the core component that determines how much weight the crane can lift. RTG cranes typically use electric wire rope hoists or occasionally hydraulic hoists for specialized applications. Several hoist-related factors influence capacity:
- Motor Power: Higher-capacity RTG cranes require powerful motors capable of lifting heavier loads without overheating. Motor size and power rating directly affect lifting speed and load capacity.
- Wire Rope Strength: The lifting wire ropes must have sufficient tensile strength to handle the maximum load, including dynamic effects such as acceleration and deceleration. Over-specifying the wire rope ensures safety under all operating conditions.
- Drum and Pulley Design: Hoist drums and pulleys must be engineered to handle the mechanical stresses of lifting heavy containers. Undersized or weak drums can limit the crane’s effective lifting capacity.
4. Counterweight and Stability
Stability is a major consideration in RTG crane design, especially because these cranes are mobile and operate on rubber tyres rather than rails. The gantry crane lifting capacity is closely tied to its ability to remain balanced during operations.
- Counterweights: RTG cranes often include counterweights to offset the load and prevent tipping. The amount and placement of counterweight influence how much the crane can safely lift.
- Wheelbase and Track Width: A wider wheelbase improves stability, allowing the crane to handle heavier loads without risking tipping. The spacing between the rubber tyres also helps distribute weight and reduce ground pressure, which is particularly important on soft surfaces.
- Center of Gravity: The crane’s center of gravity shifts during lifting. Designers must ensure that even at maximum reach or when handling the heaviest containers, the crane remains within safe tipping limits.
5. Operational Environment
The conditions in which the RTG crane operates also play a crucial role in determining effective capacity.
- Ground Conditions: RTG cranes operate on paved surfaces, but variations in ground firmness and evenness can affect lifting stability. Soft or uneven surfaces may require operators to reduce lifting capacity to maintain safety.
- Wind and Weather Conditions: Wind forces can create additional lateral loads on the crane and the container being lifted. Manufacturers often specify maximum wind speeds for rated lifting capacity, and operational limits must be adjusted during adverse weather.
- Temperature and Humidity: Extreme temperatures can affect the performance of hydraulic and electrical components. Cold weather can make steel structures more brittle, while high temperatures can reduce motor efficiency, indirectly limiting lifting capacity.
6. Safety Margins and Regulations
Safety standards and regulatory requirements are integral to RTG crane design. International standards such as ISO, FEM, and local port authority regulations specify safety factors that reduce the effective working load compared to theoretical maximum capacity. These safety margins ensure that the crane can operate safely under dynamic and unpredictable conditions, including:
- Sudden load shifts
- Emergency braking or hoist stops
- Operator errors
As a result, an RTG crane’s rated capacity is always conservative compared to the absolute mechanical limits of its components, ensuring safe and reliable operation over its lifespan.
7. Control Systems and Automation
Modern RTG cranes are often equipped with advanced control systems, including automation features that can influence operational capacity.
- Load Sensing: Automated load sensors can detect overloading and prevent lifting beyond rated capacity.
- Anti-Sway Systems: Sway control allows the crane to handle loads more safely at higher speeds, effectively increasing usable capacity without compromising safety.
- Positioning and Guidance Systems: Accurate positioning ensures that containers are lifted and placed precisely, reducing the risk of uneven load distribution that could lower effective capacity.
8. Maintenance and Wear
The actual lifting capacity of an RTG crane is also influenced by its maintenance condition. Regular inspection and maintenance of structural components, wire ropes, motors, tyres, and hydraulics are critical for maintaining rated capacity. Worn-out tyres, corroded structural members, or fatigued hoist wires can necessitate reduced operational loads until repairs are made.
Conclusion
Determining the capacity of a Rubber Tyred Gantry crane is a complex interplay of load requirements, structural design, hoisting mechanisms, stability considerations, environmental factors, safety regulations, and technological enhancements. It is not merely a matter of motor strength or the weight of a container; every aspect of the crane, from its frame to control system, influences what it can safely lift.
When selecting an RTG crane, operators must evaluate not only the maximum load they plan to handle but also operational environment, safety margins, and future growth in handling requirements. Properly matching crane capacity to these factors ensures safe, efficient, and long-term performance, ultimately optimizing port and yard operations while protecting personnel and equipment.
Understanding these determinants allows businesses to make informed investment decisions, ensuring that their RTG crane fleet can handle both current workloads and future demands, with safety and efficiency at the forefront.
