Rubber Tyred Gantry (RTG) cranes are widely used in industrial yards, logistics centers, steel plants, and port terminals for handling heavy materials and oversized loads. Their mobility, high lifting capacity, and flexible travel modes make them an efficient solution for outdoor lifting operations. As modern industries increasingly handle longer, heavier, and more complex loads, synchronized lifting technology has become an essential feature in RTG crane systems.
Synchronized lifting technology ensures that multiple hoisting points or multiple rubber tyred cranes operate in perfect coordination when lifting a single load. This advanced control capability improves load stability, reduces structural stress, and significantly enhances operational safety. In large industrial environments where precision and reliability are critical, synchronized lifting plays a key role in enabling RTG cranes to perform complex lifting tasks efficiently.
Understanding Synchronized Lifting in RTG Cranes
Synchronized lifting refers to the coordinated operation of two or more hoisting mechanisms that raise or lower a load simultaneously while maintaining precise balance and alignment. This technology is particularly important when handling long, heavy, or irregularly shaped materials such as steel beams, precast concrete components, machinery modules, or oversized containers.
When multiple hoists lift the same load, each hoist must move at the same speed and maintain the same lifting height. If one hoist moves faster or slower than the others, the load may tilt, bend, or experience uneven stress. This can damage the load, compromise structural safety, and create hazardous working conditions.
Synchronized lifting systems use advanced control algorithms, sensors, and communication networks to ensure that all hoisting units operate in harmony. Real-time monitoring allows the system to detect even small deviations between lifting points and automatically correct them.
Why Synchronized Lifting Technology Is Important
Handling oversized or heavy loads requires careful coordination to maintain balance and stability. Without synchronized lifting, several operational risks can occur:
- Uneven load distribution between lifting points
- Excessive stress on the crane structure
- Load deformation or damage
- Increased risk of accidents or equipment failure
Synchronized lifting technology addresses these issues by ensuring that each hoisting mechanism shares the load evenly. In many industrial systems, the deviation between lifting points can be limited to very small tolerances, allowing the load to remain level during the entire lifting process.
This capability is especially valuable in industries that require high precision, such as steel fabrication, precast concrete manufacturing, heavy equipment assembly, and modular construction.
Core Components of Synchronized Lifting Systems
Modern RTG cranes achieve synchronized lifting through a combination of mechanical design, electrical control systems, and intelligent monitoring technologies. Several key components work together to maintain precise lifting coordination.
Dual or Multi-Hoist Configuration
Many RTG cranes equipped with synchronized lifting technology feature dual hoists or multiple lifting points mounted on the same trolley or on separate trolleys. Each hoist operates independently but is connected through a centralized control system.
Multi-point lifting allows the crane to distribute weight evenly across the load, preventing deformation or excessive bending. This configuration is particularly useful for handling long structural components or large machinery parts.
Variable Frequency Drives (VFD)
Variable Frequency Drives are essential for achieving smooth and synchronized hoist motion. These drives regulate motor speed and torque, enabling precise acceleration and deceleration.
By adjusting motor speed in real time, VFD systems ensure that each hoist moves at the same rate. This eliminates sudden jerks or uneven movement that could destabilize the load.
PLC-Based Control Systems
Programmable Logic Controllers (PLC) serve as the central control unit of synchronized lifting systems. The PLC continuously monitors signals from sensors and coordinates the operation of each hoisting mechanism.
If the system detects a difference in lifting speed or height between hoists, the PLC immediately adjusts the motor output to restore balance. This automatic correction process helps maintain synchronized movement throughout the lifting operation.
Load Sensors and Monitoring Devices
Load sensors installed on each hoist measure the weight carried by individual lifting points. These sensors transmit data to the control system in real time, allowing operators to monitor load distribution.
If one hoist carries more load than the others, the system can adjust lifting speeds to rebalance the weight. This prevents overloading of individual components and protects the crane structure.
Communication Networks
Synchronized lifting systems rely on high-speed communication networks to exchange data between sensors, controllers, and drives. These networks ensure that all hoisting units receive accurate instructions simultaneously.
Reliable communication is essential for maintaining coordination between multiple hoists or cranes, especially when lifting extremely heavy loads.

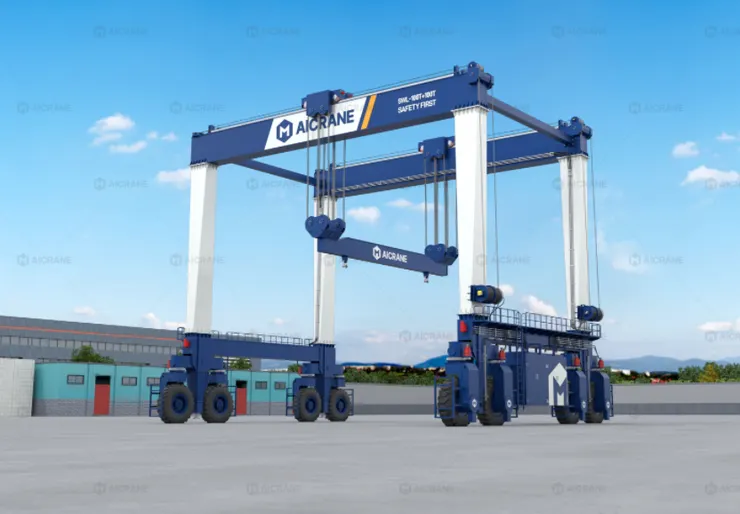

Synchronized Lifting with Dual-Trolley RTG Cranes
One advanced implementation of synchronized lifting technology is the dual-trolley RTG crane system. In this configuration, two trolleys operate along the same gantry beam, each equipped with its own hoist.
The two trolleys can move independently or operate in synchronized mode. When lifting large or fragile loads, the synchronized mode allows both hoists to raise the load together with precise coordination.
This configuration offers several advantages:
- Balanced lifting for long materials
- Improved load stability
- Greater operational flexibility
- Enhanced positioning accuracy
Dual-trolley systems are commonly used in industrial yards where large components must be lifted at multiple points to prevent bending or structural damage.
Synchronized Lifting in Tandem RTG Crane Operations
In some industrial applications, a single RTG crane may not have sufficient lifting capacity or span to handle oversized loads. In such cases, two RTG cranes can work together in tandem to lift and transport the same load.
Tandem lifting requires extremely precise synchronization between the cranes. Each crane must move, lift, and travel at the same speed to maintain load stability. Even small differences in motion can cause severe stress on the load or the lifting equipment.
Advanced control systems help coordinate the movement of both cranes by linking their control units and sharing real-time operational data. This allows the cranes to function as a single integrated lifting system.
Tandem RTG operations are commonly used for lifting:
- Large machinery modules
- Heavy steel structures
- Wind turbine components
- Oversized industrial equipment
Industrial Applications of Synchronized Lifting Technology
Synchronized lifting technology significantly expands the range of applications for RTG cranes. Many industries rely on this capability to handle large, heavy, or delicate materials safely.
Steel Processing Plants
Steel mills often need to lift long steel plates, coils, or structural beams. Synchronized hoists ensure balanced lifting and prevent material bending during handling.

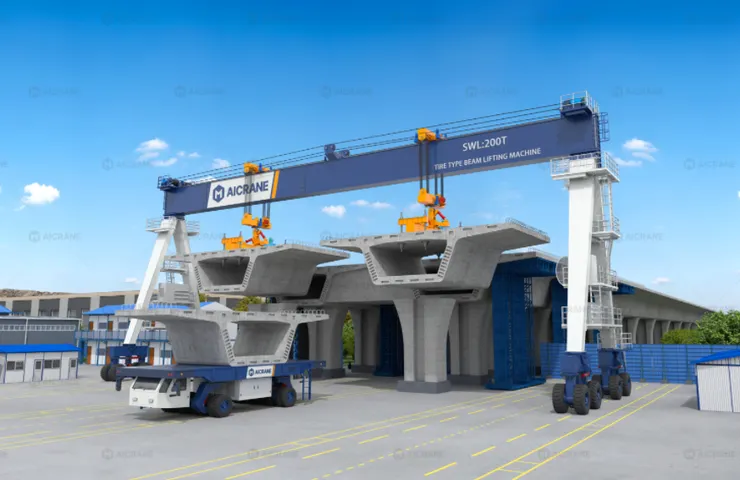

Precast Concrete Production
Precast factories produce large concrete beams, wall panels, and bridge components. These elements require multi-point lifting to avoid cracking or deformation during transport.
Shipyards and Offshore Manufacturing
Shipbuilding involves handling massive hull sections and structural modules. Synchronized lifting of shipyard cranes ensures accurate positioning and reduces the risk of structural distortion.
Heavy Equipment Manufacturing
Manufacturers of turbines, generators, and industrial machinery often use synchronized lifting to move large components safely through production facilities.
Logistics and Storage Yards
Industrial yards handling oversized cargo or long materials benefit from synchronized lifting to maintain stability during loading, unloading, and stacking operations.
Safety Benefits of Synchronized Lifting Systems
Safety is one of the most important advantages of synchronized lifting technology in RTG cranes. By maintaining consistent lifting motion across all hoists, the system significantly reduces operational risks.
Key safety benefits include:
- Prevention of load tilting or swinging
- Reduced structural stress on the crane
- Lower risk of equipment overload
- Improved operator control and visibility
- Automatic correction of lifting deviations
In addition, modern synchronized lifting systems are often integrated with other safety technologies such as anti-sway systems, overload protection devices, and collision detection sensors.
Future Trends in Synchronized Lifting Technology
As automation and digital technologies continue to advance, synchronized lifting systems in RTG cranes are becoming more intelligent and efficient.
Emerging trends include:
- AI-based motion control for predictive lifting adjustments
- Real-time data analytics for load monitoring
- Integration with smart yard management systems
- Remote and autonomous crane operation
- Digital twin simulation for lifting operations
These innovations will further enhance lifting precision, safety, and operational efficiency in industrial material handling.
Conclusion
Synchronized lifting technology has become a critical feature in modern RTG crane systems. By coordinating multiple hoisting mechanisms with high precision, this technology ensures balanced load handling, improved safety, and greater operational efficiency.
Whether used in dual-hoist configurations, dual-trolley systems, or tandem crane operations, synchronized lifting enables RTG cranes to manage complex lifting tasks that would otherwise be difficult or risky. As industries continue to handle larger and more sophisticated loads, synchronized lifting technology will play an increasingly important role in advancing crane performance and reliability.
For industrial yards, steel plants, precast factories, and heavy manufacturing facilities, RTG cranes equipped with synchronized lifting technology provide a powerful and dependable solution for safe and precise material handling.
