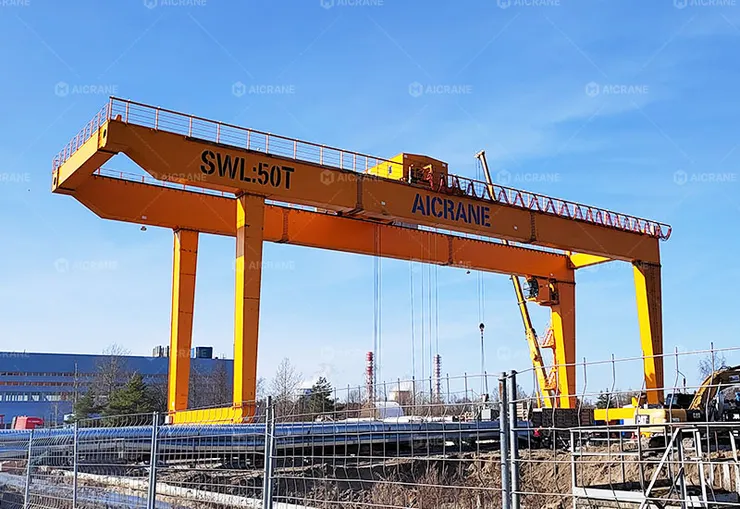

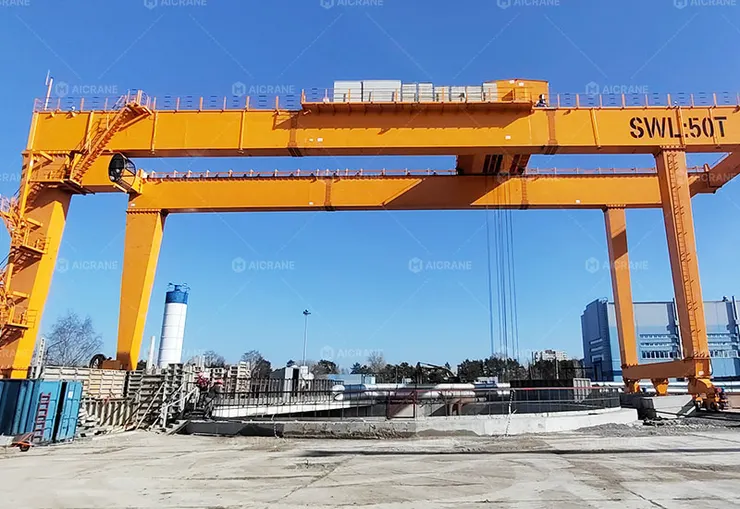

The operation of heavy-duty gantry cranes, particularly those with a 50-ton lifting capacity, demands strict adherence to safety standards. These cranes are indispensable in industries such as steel, construction, shipping, and manufacturing, where the movement of massive loads is routine. However, the inherent risks associated with lifting and transporting such heavy objects make the integration of advanced safety mechanisms critical. Among these, safety interlock systems play a pivotal role in preventing accidents, reducing mechanical failures, and ensuring operational efficiency.
Understanding Safety Interlock Mechanisms
A safety interlock mechanism is a system designed to prevent unsafe operation of machinery. In the context of a 50-ton gantry crane, it ensures that certain conditions are met before specific actions can be performed. These mechanisms act as fail-safes, preventing collisions, overloads, or unsafe movements that could endanger operators, personnel nearby, and the crane itself. Interlocks are not merely reactive but proactive, stopping dangerous actions before they occur.
Safety interlocks in 50 ton gantry cranes typically integrate both mechanical and electronic systems. While mechanical interlocks physically restrict movement or operation under unsafe conditions, electronic interlocks use sensors, limit switches, and programmable logic controllers (PLCs) to monitor crane operations and automatically enforce safety limits.
Key Types of Safety Interlock Mechanisms in 50 Ton Gantry Cranes
- Overload Protection Interlocks
The most critical interlock in any heavy-duty crane is overload protection. Gantry cranes have a maximum rated load—50 tons in this case—and exceeding this limit can cause structural damage or catastrophic failure. Modern cranes are equipped with load sensors on the hoist system. When a load approaches or exceeds the rated capacity, the interlock triggers an alert and may prevent further lifting. Some systems automatically slow down the hoisting speed or stop it entirely to protect the crane and ensure operator safety. - Limit Switches for Travel and Hoist Movements
Limit switches are essential mechanical or electronic devices that define the operational boundaries of the crane. They prevent the hoist from moving beyond the crane bridge’s span or the trolley from exceeding its rail track limits. Similarly, vertical limit switches prevent the hook from ascending too high or descending dangerously close to the ground or other obstacles. These interlocks reduce the risk of collisions with structural components, overhead obstacles, or other cranes operating in the same area. - Anti-Collision Interlocks
In facilities where multiple cranes operate simultaneously, anti-collision interlocks are vital. These systems use radar, ultrasonic sensors, or infrared detection to monitor the positions of adjacent cranes. If a potential collision is detected, the interlock either slows down or halts crane movement. For a 50-ton gantry crane working in a busy workshop, port, or steel yard, anti-collision mechanisms are critical to prevent costly accidents and downtime. - Emergency Stop Interlocks
Emergency stop systems are a standard safety requirement across industrial machinery. On a gantry crane, these interlocks are activated manually by the operator or automatically via sensors detecting abnormal conditions. Pressing the emergency stop button immediately cuts off power to the hoist, trolley, and crane travel mechanisms, allowing rapid cessation of movement. These interlocks are integrated with audible and visual alarms to alert nearby personnel and ensure a swift response to hazardous situations. - Crane Door and Cabin Interlocks
For gantry cranes equipped with operator cabins, interlocks on doors and access points ensure that the crane cannot operate while a door is open or when unauthorized personnel are inside the cabin. This prevents accidental operation or injury to operators or maintenance staff. Some interlocks are designed to disable the crane controls if the cabin door is not securely closed. - Travel Speed and Braking Interlocks
Gantry cranes moving along rails or wheels must maintain controlled speeds, especially when lifting heavy loads. Speed sensors and braking interlocks ensure that the crane does not exceed predefined travel speeds. In some systems, the interlock automatically applies the brakes if the crane accelerates uncontrollably or if sensors detect uneven track conditions. This feature is particularly important for 50-ton double girder gantry cranes, as sudden movements can destabilize the load and create severe hazards. - Electrical and Power Interlocks
Electrical interlocks prevent improper power sequencing, which could damage motors or control systems. For example, the crane’s trolley may be prevented from moving unless the main power and hoist systems are fully operational. Similarly, interlocks can ensure that maintenance modes or auxiliary systems are engaged only when the crane is stationary, preventing accidental activation during servicing.
The Role of PLC-Based Interlocks
Modern 50-ton gantry cranes often incorporate PLC-based interlocks for greater flexibility and precision. PLCs continuously monitor inputs from sensors, limit switches, load cells, and encoders to determine safe operational conditions. They can execute complex logic, such as coordinating simultaneous movements of the trolley and hoist while preventing overload or collision scenarios.
PLC interlocks also enable remote monitoring and diagnostics, allowing safety personnel or maintenance teams to assess the crane’s status in real-time. In some cases, these systems integrate with factory automation or port management software, ensuring that safety protocols are consistently enforced without relying solely on operator vigilance.
Benefits of Safety Interlock Mechanisms
- Enhanced Operator Safety
Interlocks reduce the likelihood of human error by automatically preventing unsafe actions. Operators can focus on precision lifting without worrying about exceeding safety limits. - Protection of Equipment and Loads
Preventing collisions, overloading, and uncontrolled movements protects both the crane and the cargo. This reduces repair costs and downtime while extending the crane’s service life. - Compliance with Safety Regulations
Many countries have strict industrial safety standards for crane operation. Properly implemented interlocks help companies meet OSHA, ISO, or local regulatory requirements, avoiding penalties and ensuring workplace safety. - Operational Efficiency
By automating safety checks and preventing accidents, interlocks allow cranes to operate at optimal efficiency. Operators can perform complex lifting operations with confidence, knowing that the system enforces critical safety constraints.
Best Practices for Interlock Maintenance and Operation
To maximize the benefits of interlock mechanisms, operators and maintenance teams should follow several best practices:
- Regular Inspection: Limit switches, load cells, sensors, and electrical interlocks should be inspected periodically to ensure they function correctly. Any signs of wear or malfunction must be addressed immediately.
- Operator Training: Operators must be trained to understand interlock systems and respond appropriately when an interlock is triggered. Awareness of what each safety signal means can prevent panic and improper override attempts.
- Testing and Calibration: Load sensors, speed interlocks, and anti-collision systems should be calibrated regularly. Simulation tests can confirm that the interlocks respond accurately under various scenarios.
- Documented Procedures: Maintenance logs, inspection checklists, and operational guidelines should be documented. This ensures accountability and helps in troubleshooting interlock issues.
Conclusion
Safety interlock mechanisms are indispensable components of a 50-ton gantry crane’s operation. They provide a multi-layered safety net that protects operators, equipment, and the surrounding environment. From overload protection and limit switches to anti-collision sensors and PLC-based interlocks, each mechanism contributes to creating a safer, more efficient, and reliable lifting operation.
As industries continue to demand heavier lifting capacities and more complex crane operations, investing in robust interlock systems is not optional—it is a critical requirement for safety, regulatory compliance, and operational excellence. Proper design, installation, maintenance, and operator training are essential to fully leverage the benefits of these advanced safety mechanisms, ensuring that the 50-ton gantry crane operates not only effectively but also safely in the demanding environments where it is deployed.
