Overload Protection Mechanism in 100 Ton Overhead Cranes

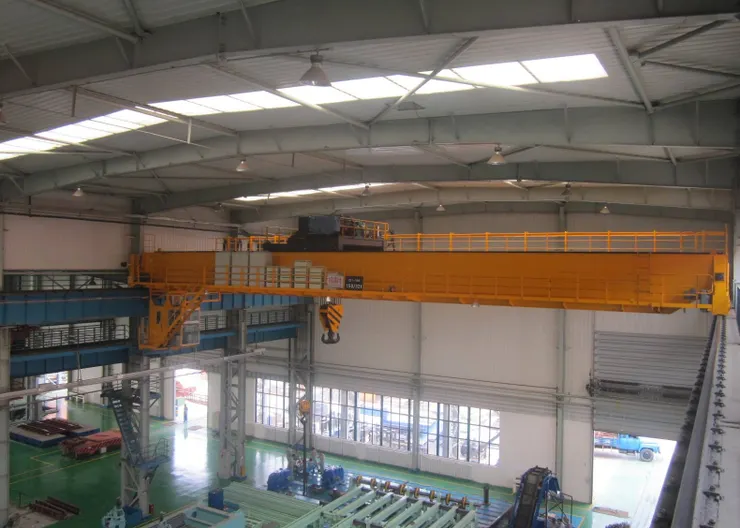

Overhead cranes are essential machinery in heavy industry, manufacturing plants, steel mills, shipyards, and construction sites. Among them, a 100-ton overhead crane stands out as a high-capacity lifting device designed to handle extremely heavy loads. Given the enormous weight these cranes manage, safety is paramount, and one of the most critical safety systems is the overload protection mechanism. This system ensures the crane operates within its safe working load limits, protecting both the equipment and personnel from potential accidents caused by overloading. In this article, we will explore the importance, types, working principles, and benefits of overload protection mechanisms in 100-ton overhead cranes.

Importance of Overload Protection in Heavy Duty Cranes

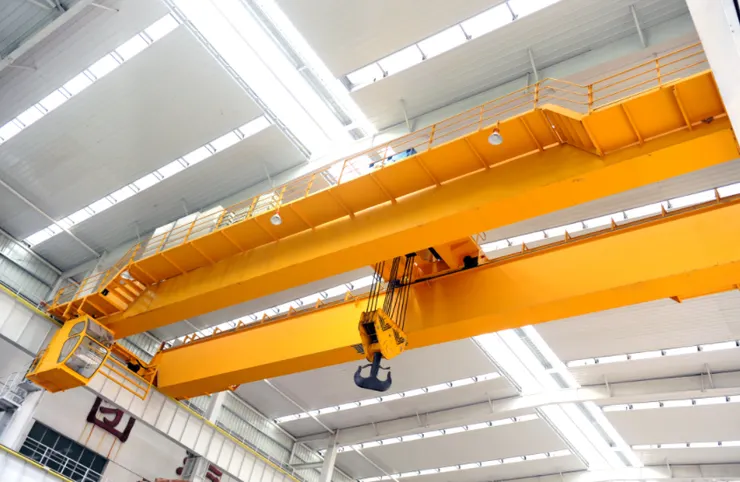

Overloading is one of the most common causes of crane accidents. Lifting a load beyond the crane’s rated capacity can result in mechanical failure, structural damage, and even catastrophic accidents leading to property loss, injury, or fatalities. Specifically, in a 100 ton bridge crane, the consequences of overloading are amplified due to the immense forces involved. The overhead crane's main components, including the hoist, trolley, bridge girder, and supporting structure, are all engineered to withstand specific maximum loads. Exceeding these limits can lead to:

1. Hoist Motor Burnout: The crane's hoist motor may overheat or fail under excessive load.
2. Wire Rope Damage: Overloading can lead to premature wear or snapping of wire ropes.
3. Structural Deformation: Bridge girders, end trucks, and other structural components may deform or collapse.
4. Trolley and Travel Mechanism Failure: The trolley may fail to move correctly, and rail systems could sustain damage.
5. Safety Hazards: Overloaded cranes create immediate risks to operators and nearby personnel.

Thus, the overload protection mechanism serves as the crane's safeguard against such risks, automatically detecting unsafe load conditions and preventing operation until corrective measures are taken.

Types of Overload Protection Mechanisms

Overload protection systems in modern 100-ton overhead cranes can be mechanical, electrical, or a combination of both. The choice of system depends on the crane's design, operational environment, and level of automation required.

1. Mechanical Overload Protection

Mechanical systems are typically simple, reliable, and require minimal maintenance. They often include:

• Load Limiter Devices: Mechanical load limiters use a spring-loaded mechanism that disengages or blocks the hoist when the load exceeds a predetermined limit. This can prevent the hoist drum from lifting the excessive load.
• Torque Limiting Clutches: These are installed in the hoisting mechanism to slip or disengage when torque exceeds safe levels, preventing the motor and gear system from sustaining damage.
• Spring or Hydraulic Overload Devices: In some cranes, hydraulic pistons or springs absorb excessive force and trigger alarms or stop the hoist.

Mechanical systems are advantageous for their robustness in harsh industrial environments, but they may require regular calibration to ensure accurate overload detection.

2. Electrical/Electronic Overload Protection

With technological advancements, electronic overload protection systems have become standard in high-capacity cranes. Key components include:

• Load Sensors (Load Cells): These sensors measure the tension in the hoist wire rope or the force applied to the load hook. If the measured load exceeds the crane’s rated capacity, the system triggers an alarm or stops crane operation.
• Current Sensors: These sensors monitor the hoist motor’s current draw. Overloading often results in excessive current; when this threshold is crossed, the system intervenes.
• Programmable Logic Controllers (PLCs): Modern cranes often integrate overload detection into PLC-based control systems, which monitor multiple parameters simultaneously, including hoist load, travel speed, and trolley position.

Electrical systems provide more precise control, real-time monitoring, and integration with automation systems for smarter crane operation.

3. Combined Mechanical and Electrical Systems

For 100-ton cranes, redundancy in safety is crucial. Many high-capacity cranes incorporate both mechanical and electronic overload protection. While the electronic system provides real-time monitoring and alarms, the mechanical system acts as a backup to physically limit operation under extreme conditions.

Working Principle of Overload Protection

The fundamental principle behind overload protection is simple: prevent lifting operations that exceed the crane’s rated capacity. In practice, this involves:

1. Load Detection: Sensors or mechanical devices continuously measure the applied load.
2. Comparison: The measured load is compared to the crane’s rated lifting capacity (100 tons in this case).
3. Intervention: If the load exceeds the safe limit, the system activates a preventive action, such as:
4. • Cutting off power to the hoist motor
   • Triggering visual and audible alarms
   • Locking the hoist mechanism
   • Reducing hoist speed to prevent further lifting

This approach ensures that the crane cannot operate under dangerous overload conditions while providing operators with immediate feedback to correct the situation.

Benefits of Overload Protection in 100-Ton Overhead Cranes

Implementing overload protection mechanisms in heavy-duty overhead cranes offers multiple benefits:

1. Enhanced Safety: The most important advantage is protecting operators, workers, and surrounding equipment from accidents.
2. Equipment Longevity: Preventing overloading reduces wear and tear on critical components, extending the crane’s operational life.
3. Regulatory Compliance: Industrial safety standards, such as OSHA, CMAA, and ISO, require overload protection systems for high-capacity cranes. Compliance ensures legal and operational safety.
4. Operational Efficiency: By providing real-time feedback and alarms, operators can avoid unsafe practices and maintain smooth, uninterrupted crane operations.
5. Cost Savings: Avoiding mechanical failures, structural damage, or workplace accidents saves substantial repair and replacement costs, insurance claims, and downtime.

Installation and Maintenance Considerations

To ensure reliable overload protection, proper installation and maintenance are crucial:

• Calibration: Load sensors and mechanical limiters must be calibrated accurately to reflect the crane’s rated capacity.
• Regular Inspection: Periodic inspections of load cells, wiring, torque clutches, and limiters are necessary to detect wear or malfunction.
• Operator Training: Crane operators should understand how overload systems function and how to respond to alarms or shutdowns.
• Integration with Control Systems: Overload protection should be integrated with the crane’s control panel, enabling automatic shutdowns and record-keeping for safety audits.

Neglecting maintenance or calibration can compromise the system’s reliability, increasing the risk of accidents.

Conclusion

In a 100-ton overhead crane, the overload protection mechanism is not just an optional safety feature—it is a vital system that safeguards personnel, machinery, and the work environment. By incorporating mechanical, electrical, or combined protection systems, overhead crane manufacturers and operators can ensure safe operation, regulatory compliance, and optimal performance. As industries demand higher capacities and automation in material handling, advanced overload protection mechanisms will continue to play a central role in ensuring the safety, reliability, and efficiency of heavy-duty cranes. Proper understanding, installation, and maintenance of these systems are essential for any facility utilizing 100-ton overhead cranes.
